VR4003 DF

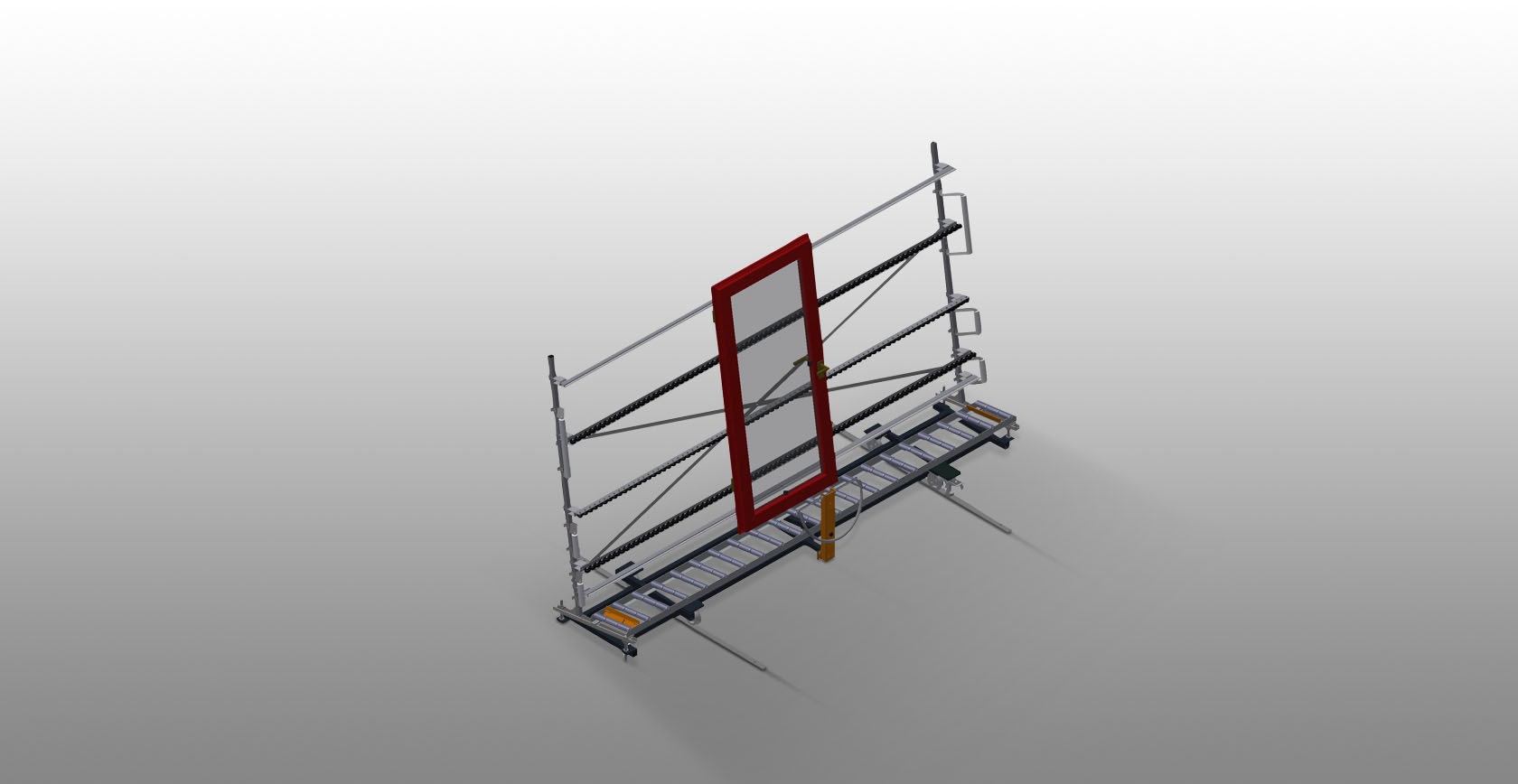

Vertical roller conveyor with mobility and rotation mechanism

home / from a to z / V

Stable steel construction
Vertical roller conveyor for smooth transportation to the next work task as well as for transportation to storage and sorting of the finished windows
Easy handling of window elements
Every roller conveyor unit is 4,000 mm long
Plastic slide bars top and bottom
Three mini-roller conveyors with rubber rollers, diameter 50 mm
Basic unit with end rack

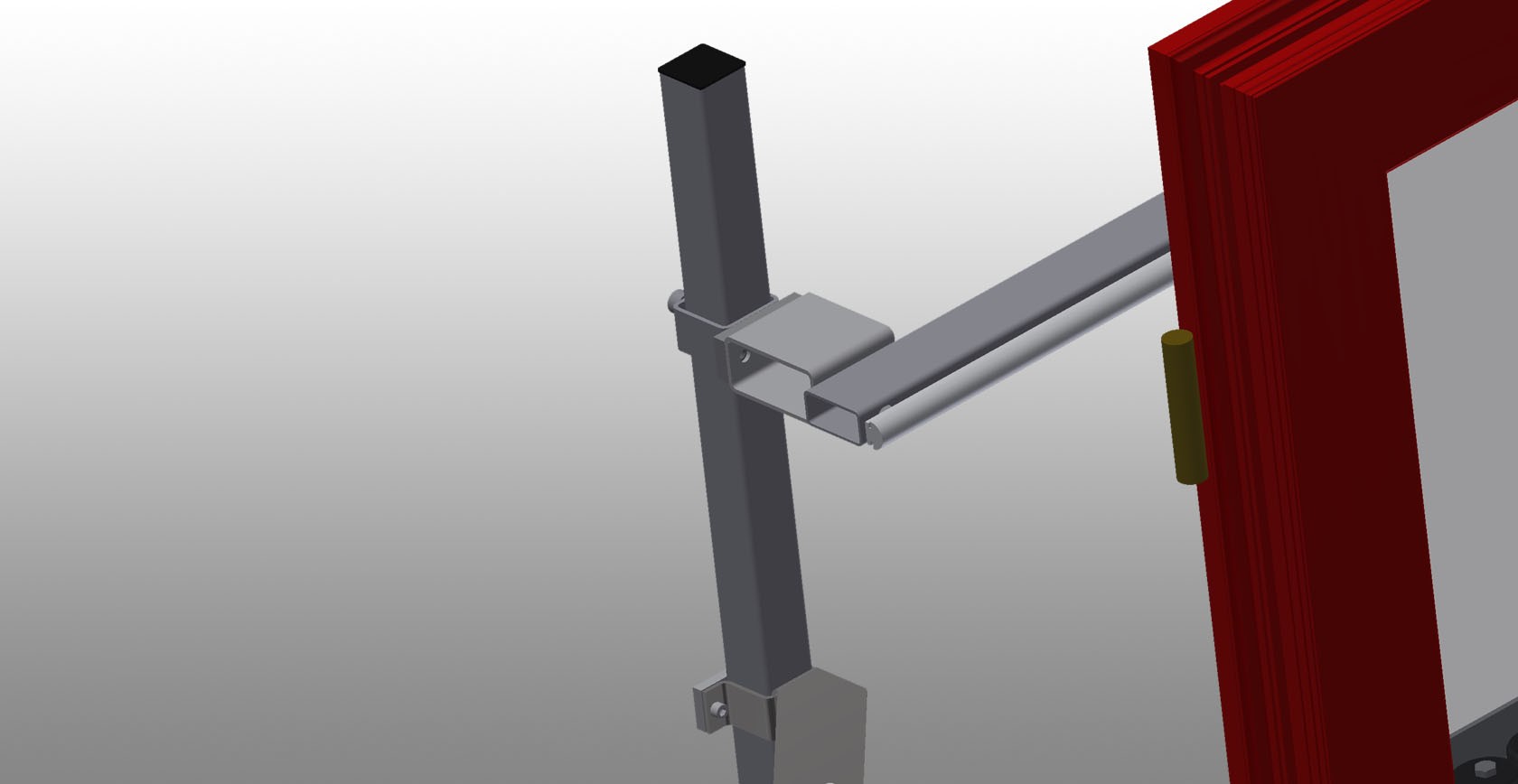

Vertical roller conveyor on rails with flanged rollers, mobile
Roller conveyor can be rotated 360°

Options

Rail, 2.0 m, left and right
End stop for VR
Lead-in roller for VR
Profile protectors for support rollers (Alum.)

Request quote

Mobility unit (Optional)

Mobility unit with flanged rollers and fixing brake

Rails (Optional)

Rails, 2.0 m, left and right

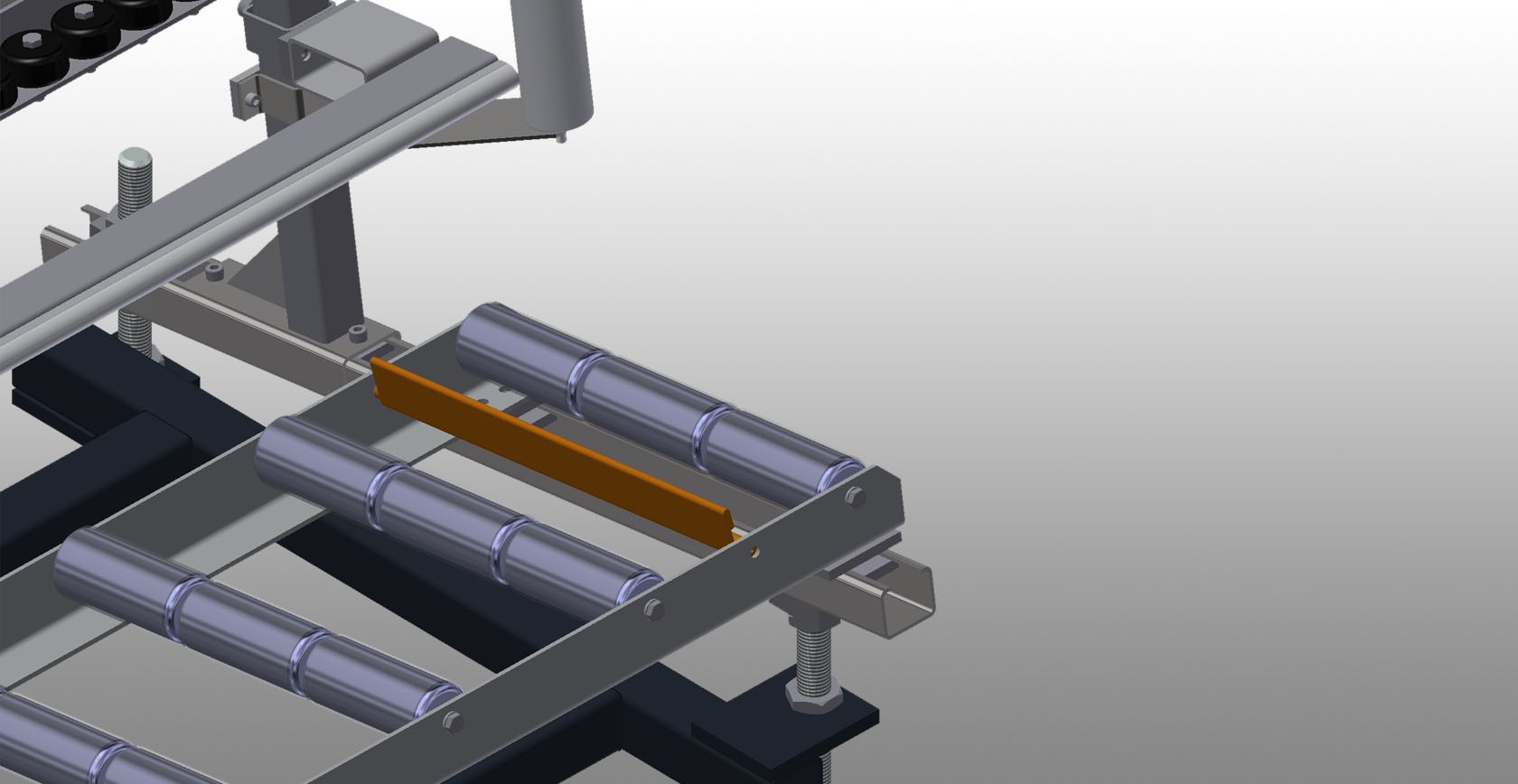

End stop (Optional)

End stop Rb=3x120 mm for VR

Lead-in rollers (Optional)

Protective rollers for beginning or end of roller conveyor

Profile protectors (Optional)

Profile protectors for support rollers 3x 120 mm (Alum./48x and Alum./63 x). Support rollers covered with protective tubing

Additional mini-roller conveyors (Optional)

Additional mini-roller conveyors with rubber rollers top/bottom

Vertical roller conveyor with mobility and rotation mechanism VR 4003 DF (Optional)

Support rollers (Optional)

Rollers throughout, support roller width 3x 120 mm.Roller conveyor unit, 4,000 mm long

Mini-roller conveyor (Optional)

Three mini-roller conveyors with rubber rollers, diameter 50 mm

Support (Optional)

Rear support with plastic slide bars, top and bottom

Grip (Optional)

Grip makes pushing the roller conveyor on the rails easy

Mobility unit (Optional)

Mobility unit with flanged rollers and fixing brake

Rails (Optional)

Rails, 2.0 m, left and right

End stop (Optional)

End stop Rb=3x120 mm for VR

Lead-in rollers (Optional)

Protective rollers for beginning or end of roller conveyor

Profile protectors (Optional)

Profile protectors for support rollers 3x 120 mm (Alum./48x and Alum./63 x). Support rollers covered with protective tubing

Additional mini-roller conveyors (Optional)

Additional mini-roller conveyors with rubber rollers top/bottom

Vertical roller conveyor with mobility and rotation mechanism VR 4003 DF (Optional)

Support rollers (Optional)

Rollers throughout, support roller width 3x 120 mm.Roller conveyor unit, 4,000 mm long

Mini-roller conveyor (Optional)

Three mini-roller conveyors with rubber rollers, diameter 50 mm

Support (Optional)

Rear support with plastic slide bars, top and bottom

Grip (Optional)

Grip makes pushing the roller conveyor on the rails easy

Mobility unit (Optional)

Mobility unit with flanged rollers and fixing brake

Technical data
