FFR

Sash rack

home / from a to z / F

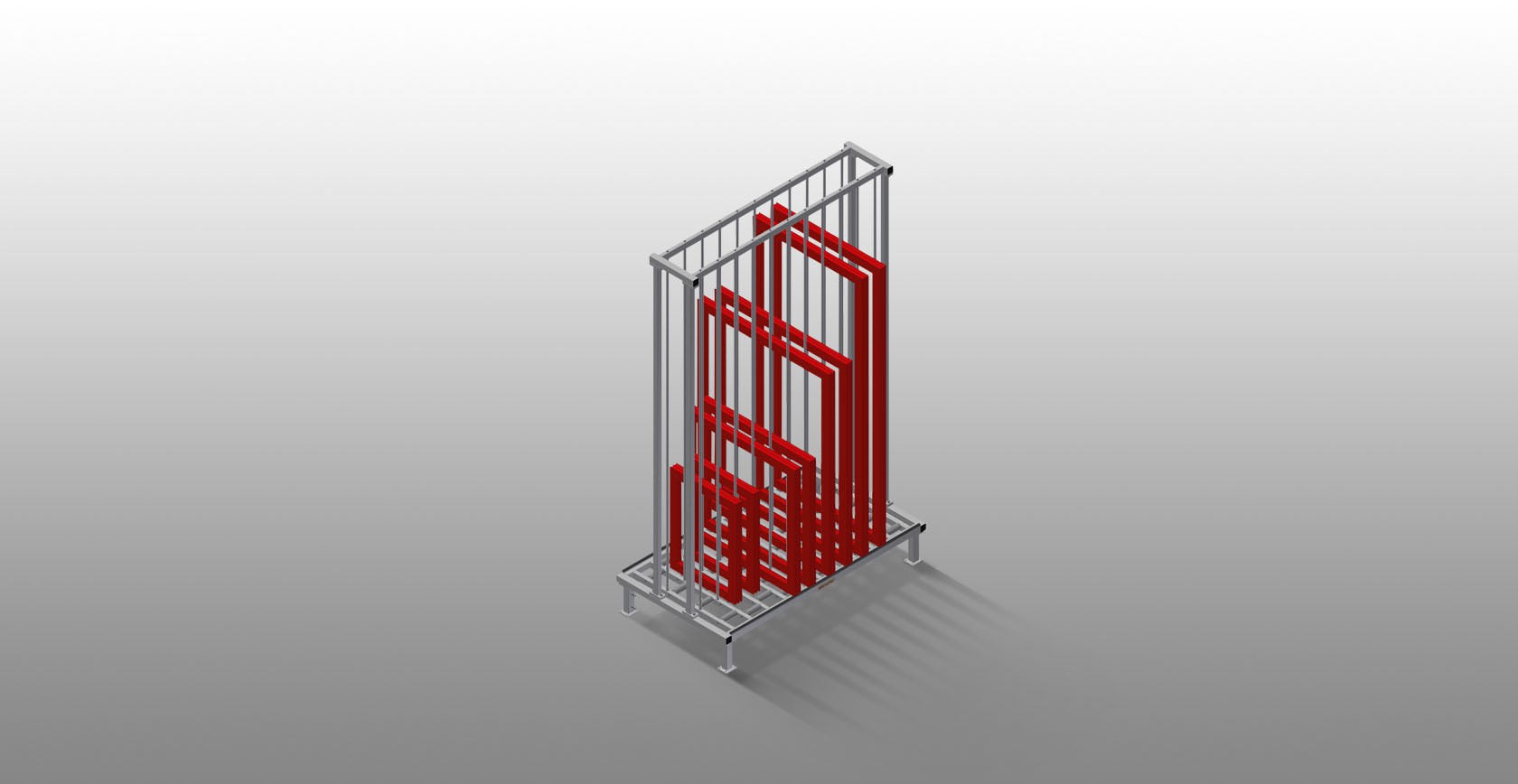

Rack for storage of window elements. Stable steel construction. Rack for storage of window sashes. The individual elements are available for direct access. Specially designed for integration in assembly lines. Access is possible from both sides. Supporting surfaces with support rollers for even easier loading and unloading. Compartment separating bars covered with protective tubing.

Request quote

Compartments

All supporting surfaces have a non-slip PVC cladding which protects surfaces from damage during storage

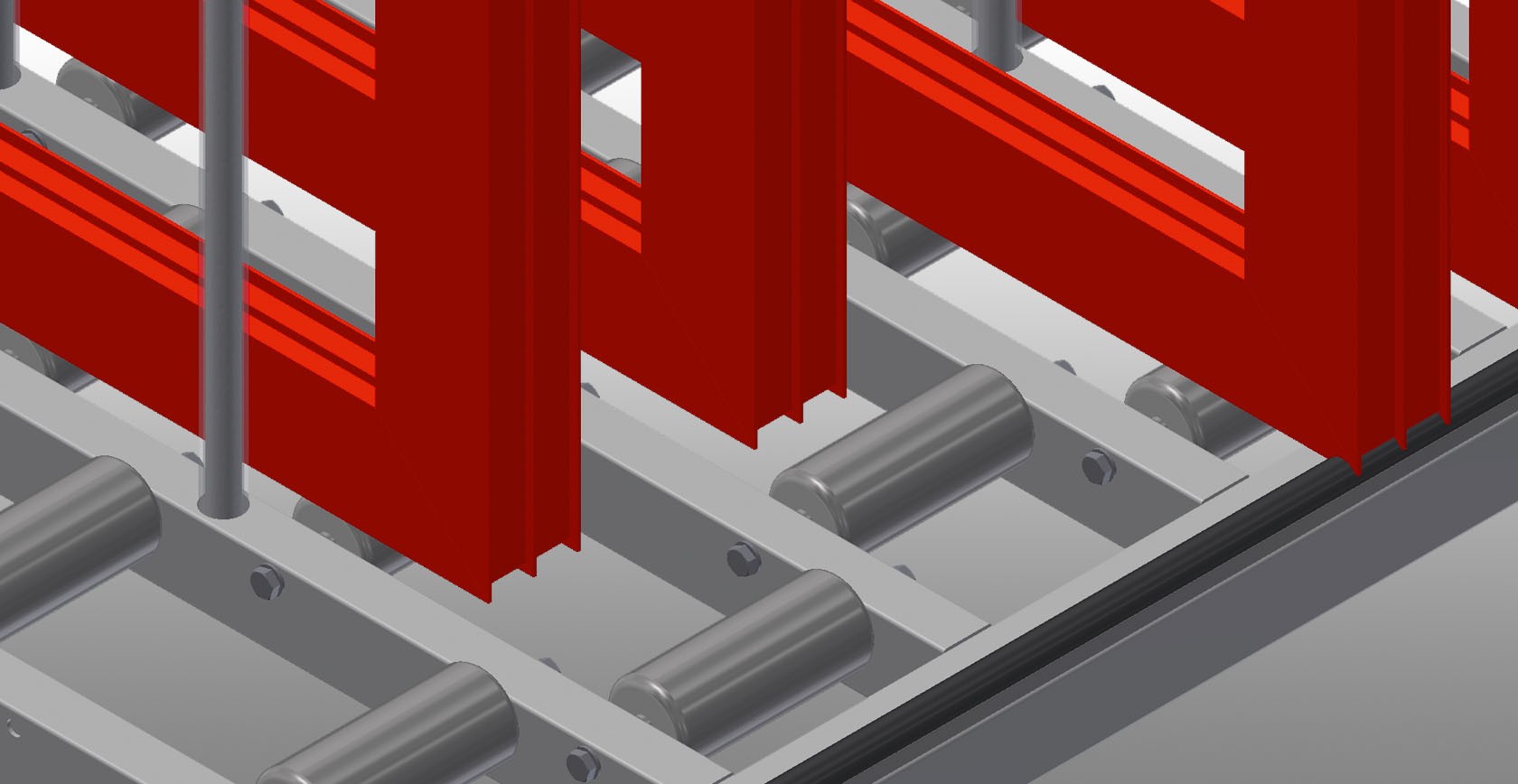

Supports

Lower storage area with support rollers for easier loading and unloading

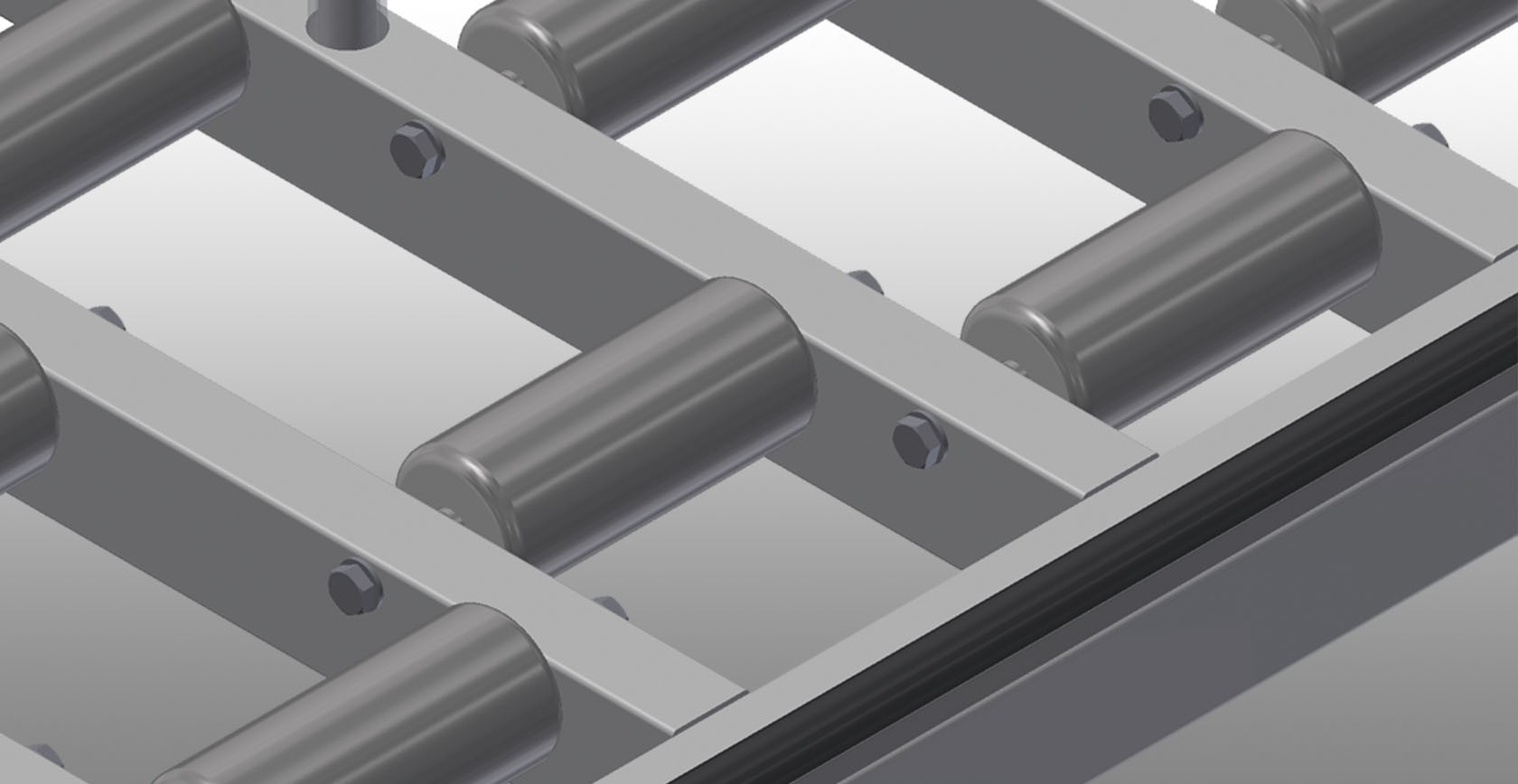

Profile protectors

Profile protectors for support rollers 3x 120 (Alum./48 x), support rollers covered with protective tubing

Casters, cmpl. (Optional)

Two casters with brake and two fixed rollers provide mobility in all directions, roller diameter 125 mm

Technical data

MODELS

DIMENSION AND WEIGHT

Length (mm)

1.820

Width (mm)

1.000

Height (mm)

2.965

Weight (kg)

250

STORAGE CAPACITY

Compartments

Compartment width (mm)

130

Compartment height (mm)

2.600

Load capacity (kg)

800

CHARACTERISTICS

Floor support equipped with knob profile

Compartment separating bars covered with protective tubing

Supporting surface with rollers

Rollers and handle

Included

Available

Other Products

FAZ

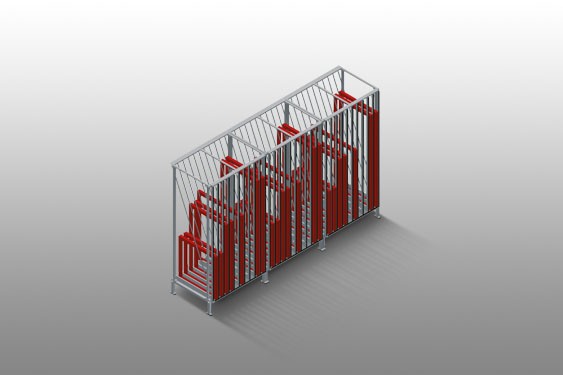

FPRM
