GLS
192/07

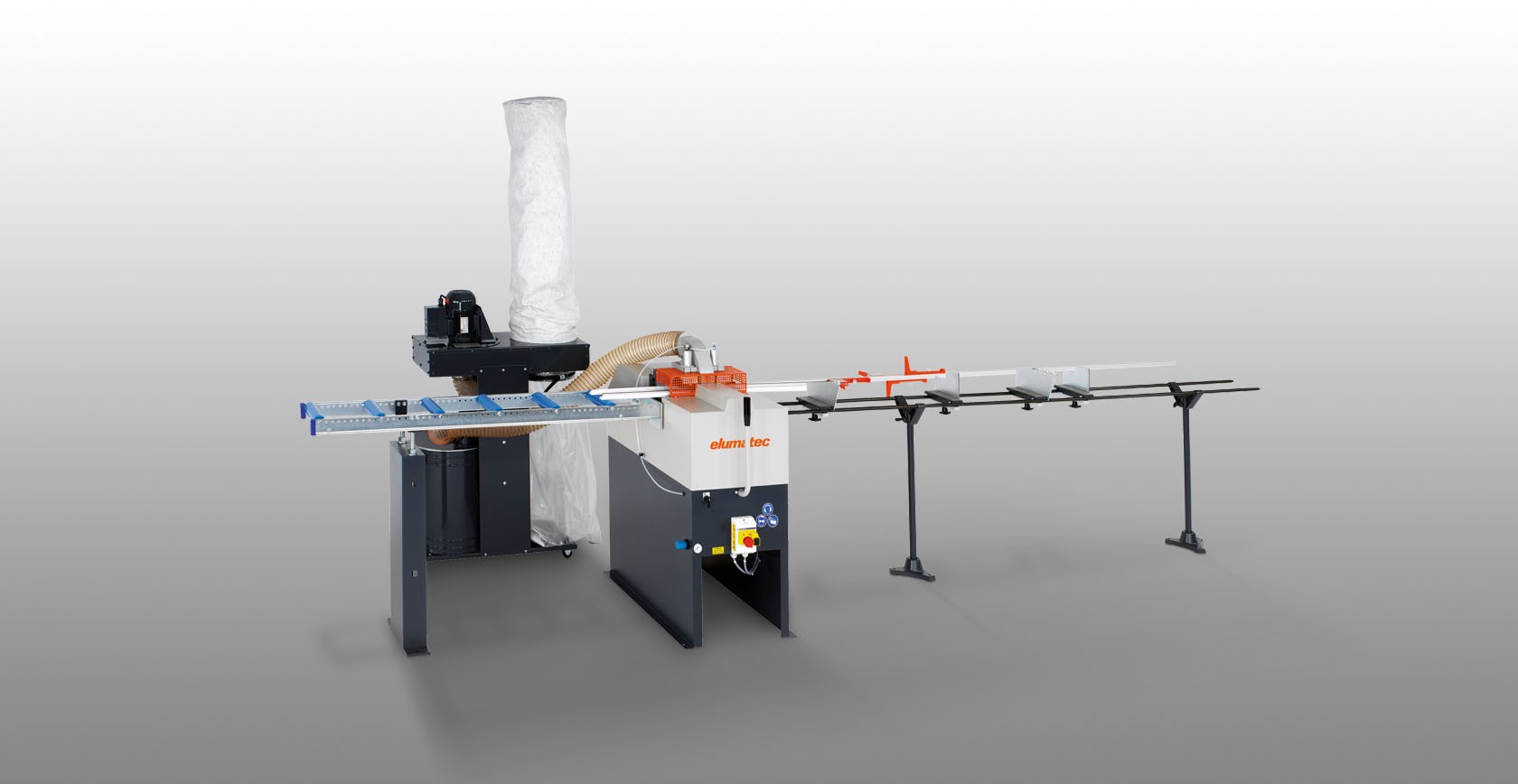

Glazing bead saw
home
/
from a to z
/
G

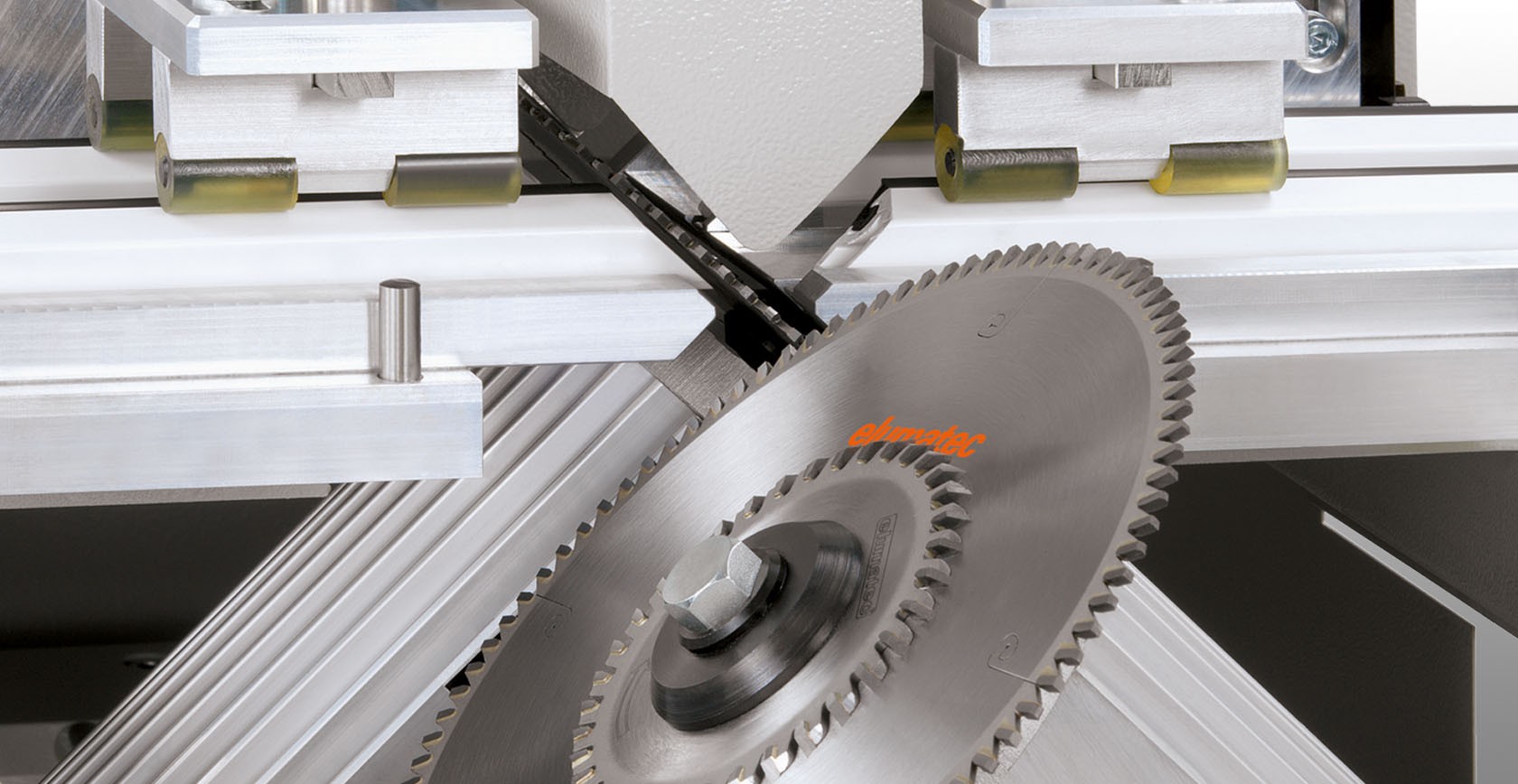

V-cutting saw equipped with two saw blades for 45° cuts

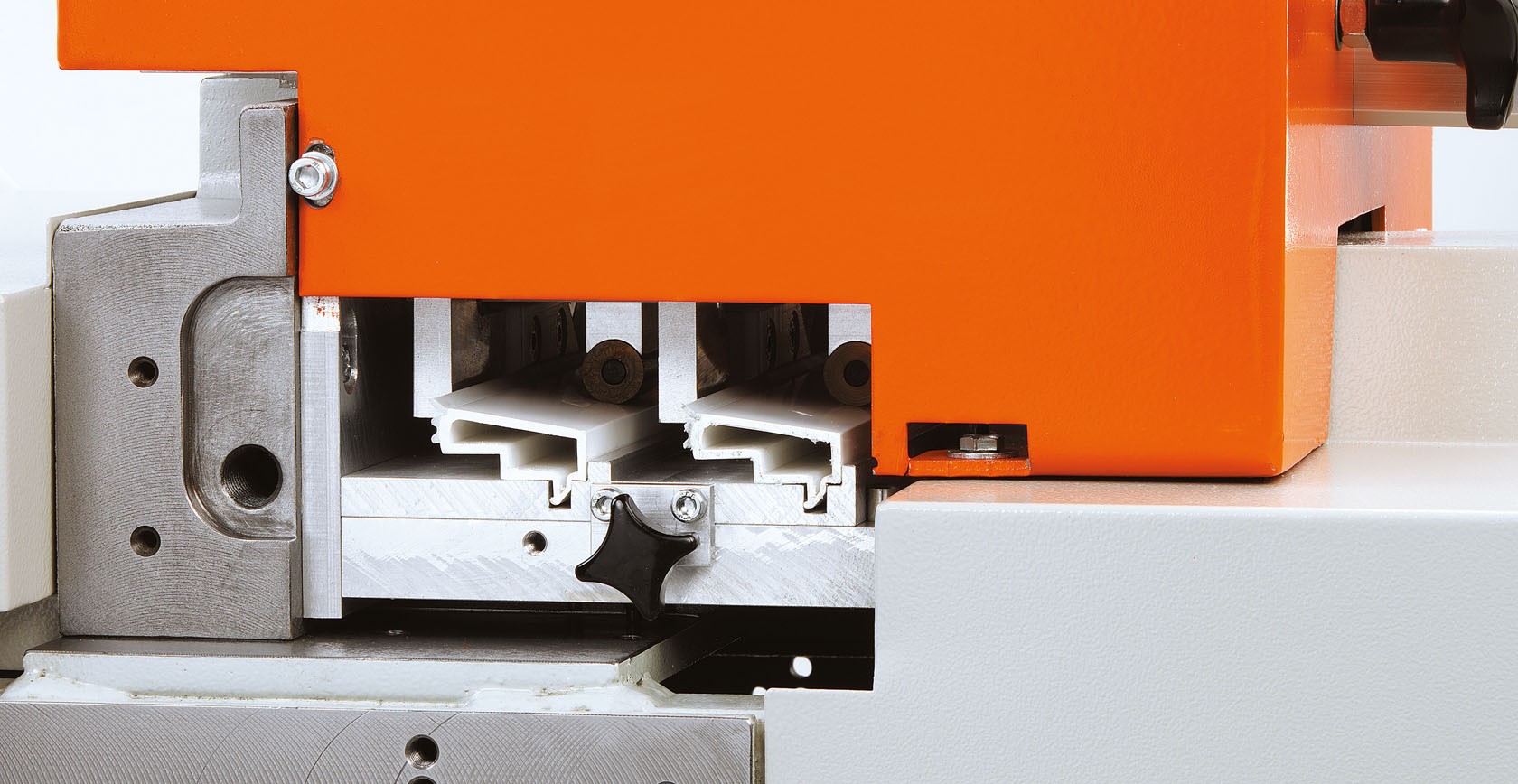

Equipped with two vertical material clamping units as standard
Equipped with exhaust connectors for connection to an extraction system
Pulsed coolant system
Automatic saw operation with foot switch control
Options
Profile clamping system for special glazing beads
Extraction system for residual pieces
Roller conveyors
Length stop and measuring systems
Profile support blocks

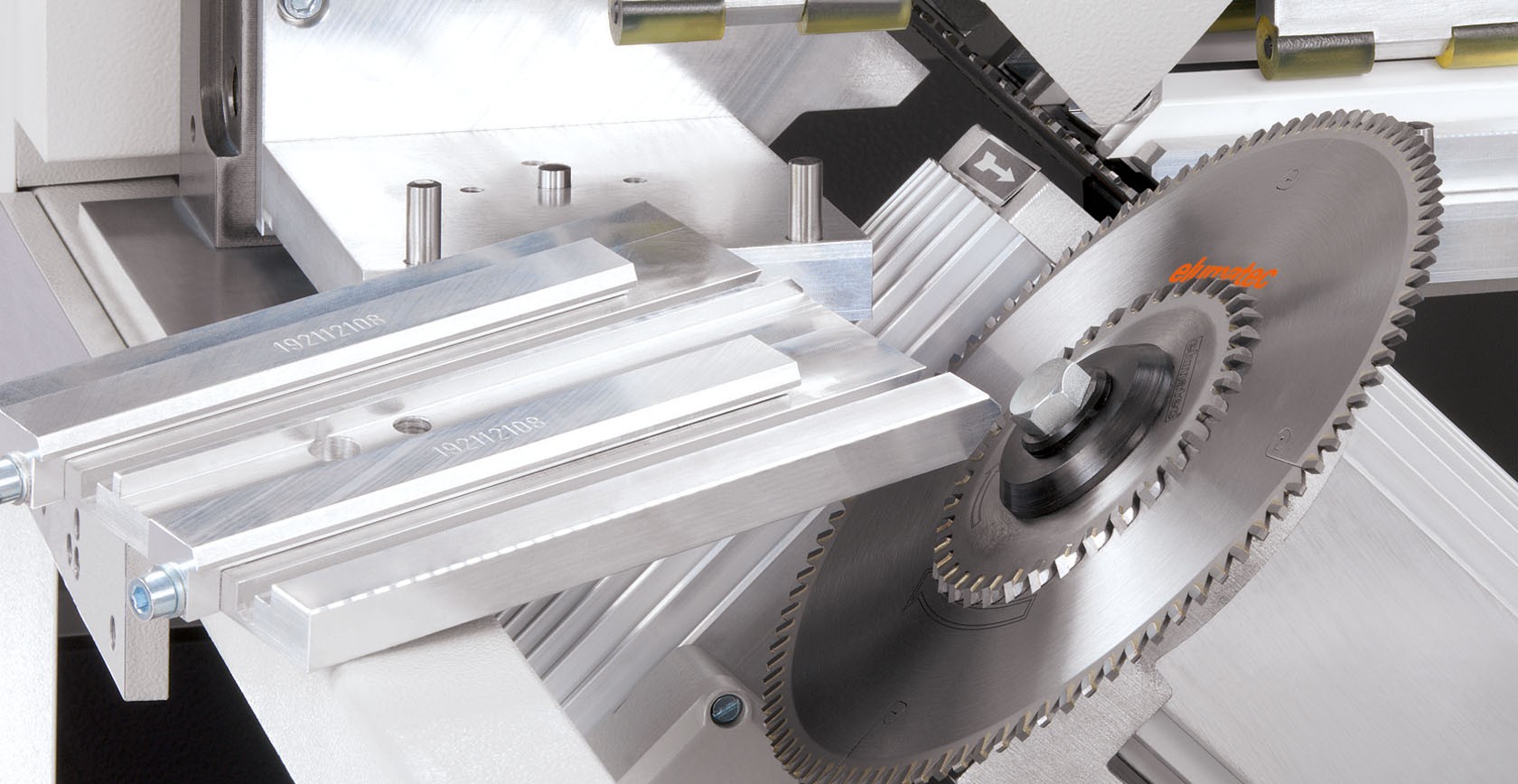

Saw blades
High performance cutting fluid
Glazing bead measuring systems
Request quote
picture_as_pdf
generate pdf
info_outline
ask information
a-Glazing bead saw GLS 192/07 (Optional)
GLS 192 + E 555 + EMA 201
Glazing bead saw GLS 192/07 (Optional)
Technical data
arrow_drop_down
Saw blade diameter 200 mm
Saw blade speed 2,800 rpm
Power supply 230/400 V, 3~, 50 Hz
Power output 0.9 kW
Compressed air supply 7 bar
Air consumption per working cycle 20 l
Length 510 mm, depth 1,200 mm, height 1,180 mm, weight 140 kg
