SBZ122/73


Profile machining centre

  • Designed for economical and efficient machining of aluminium, PVC and thin-walled steel profiles
  • All operations, such as routing, drilling and tapping, are performed while the profile bar is stationary to protect the profile surfaces
  • A-axis continuously adjustable from -120° to +120°
  • Clamp positioning automatic
  • Better machining results thanks to the intelligent control technology
  • Fast positioning of the machining unit with up to 120 m/min thanks to dynamic servo drives
  • Tapping without compensation chuck
  • Automatic tool changer with twelve tool tray positions (without tools)
  • State-of-the-art 4-axis controller
  • Ergonomic operation thanks to the advanced inclined bed
  • The absolute rotary encoder system means no main axis homing is required
  • Automatic clamp recognition and positioning prevents collisions
  • Power torque routing motor with enclosed speed control for short spindle start-up and braking times.
  • Certified, drive-integrated safety functions
  • Low power consumption thanks to the intelligent control technology
  • DC link coupling in the axis drives for greater energy efficiency
  • Uninterruptible power supply (UPS)
  • Windows operating system
  • 18.5" panel PC, i5 processor, USB ports and network connection
  • Simple, stress-free program entry with eluCam on the operating panel, even during operation
  • Remote online maintenance



Machine configuration

  • Water-cooled 7 kW, S1 routing spindle
  • Enclosure to protect the operator
  • Four horizontal, pneumatic material clamping units
  • A material stop on the left
  • Tool holder HSK-F63
  • Swarf trays for swarf removal
  • Minimum-volume lubrication system
  • High performance cutting fluid
  • Hand-held operator terminal
  • Depth gauge



Options

  • Tools
  • Tool holders
  • Additional stop for overlength machining (left)
  • Material reference stop (right) for positioning workpieces with overlength machining and second clamping disc
  • Green Line cooling unit for the control cabinet with reduced energy consumption
  • Barcode scanner
  • Protective enclosure can optionally completely enclose the machine on all sides,with additional sound insulation
  • Four clamps as standard. Can be equipped with up to eight clamps
  • Double clamping and other accessories on request
  • 21.6" panel PC, i7 processor
  • Note holder
  • Sound insulation hood
  • Clamping unit optimised to prevent collisions
  • Wireless measurement sensor
SBZ 122/73  Tool magazine elumatec

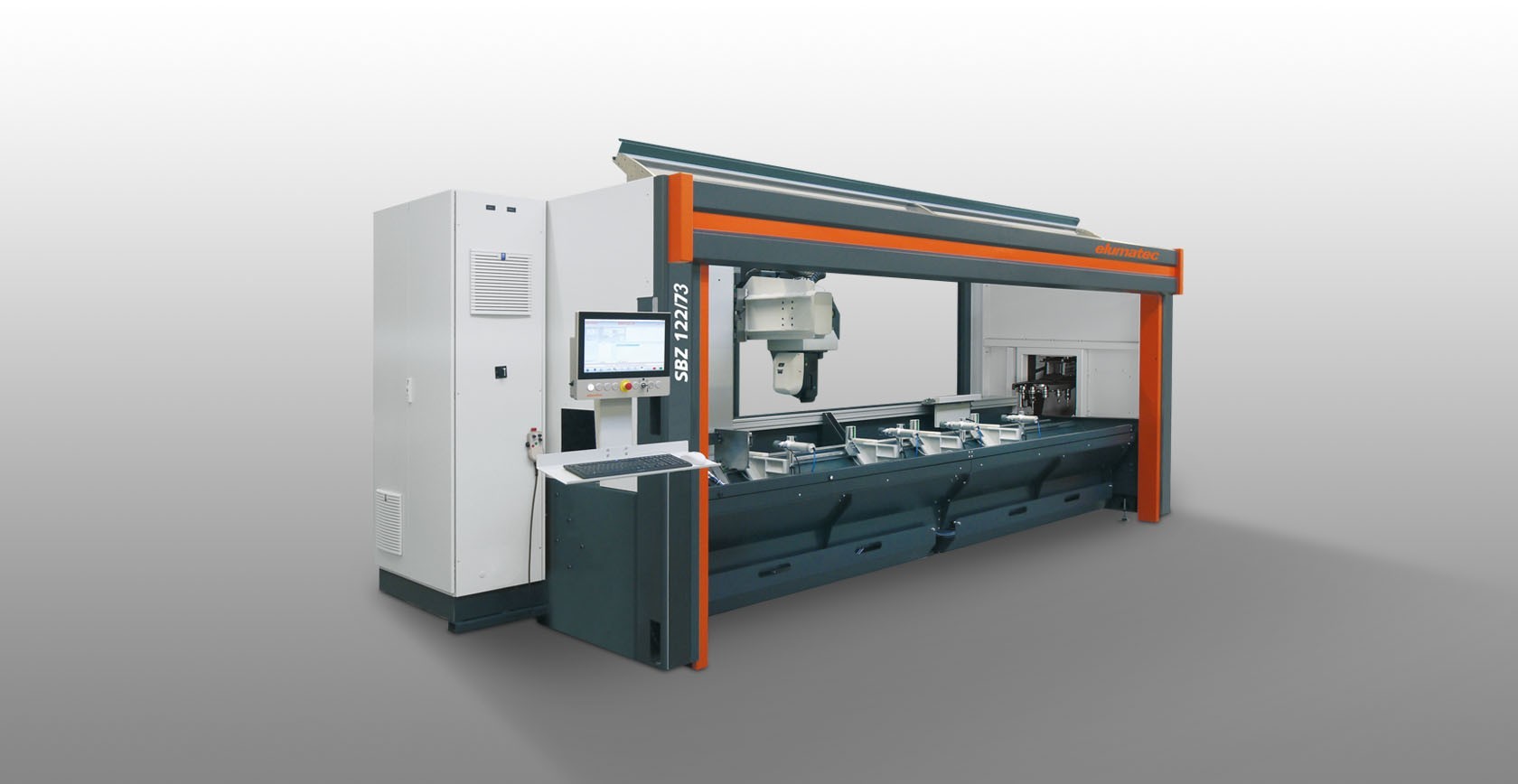

SBZ 122/73  Profile machining centre SBZ 122/73 elumatec
SBZ 122/73  Profile machining centre SBZ 122/73 elumatec
SBZ 122/73  A-axis angle adjustment elumatec

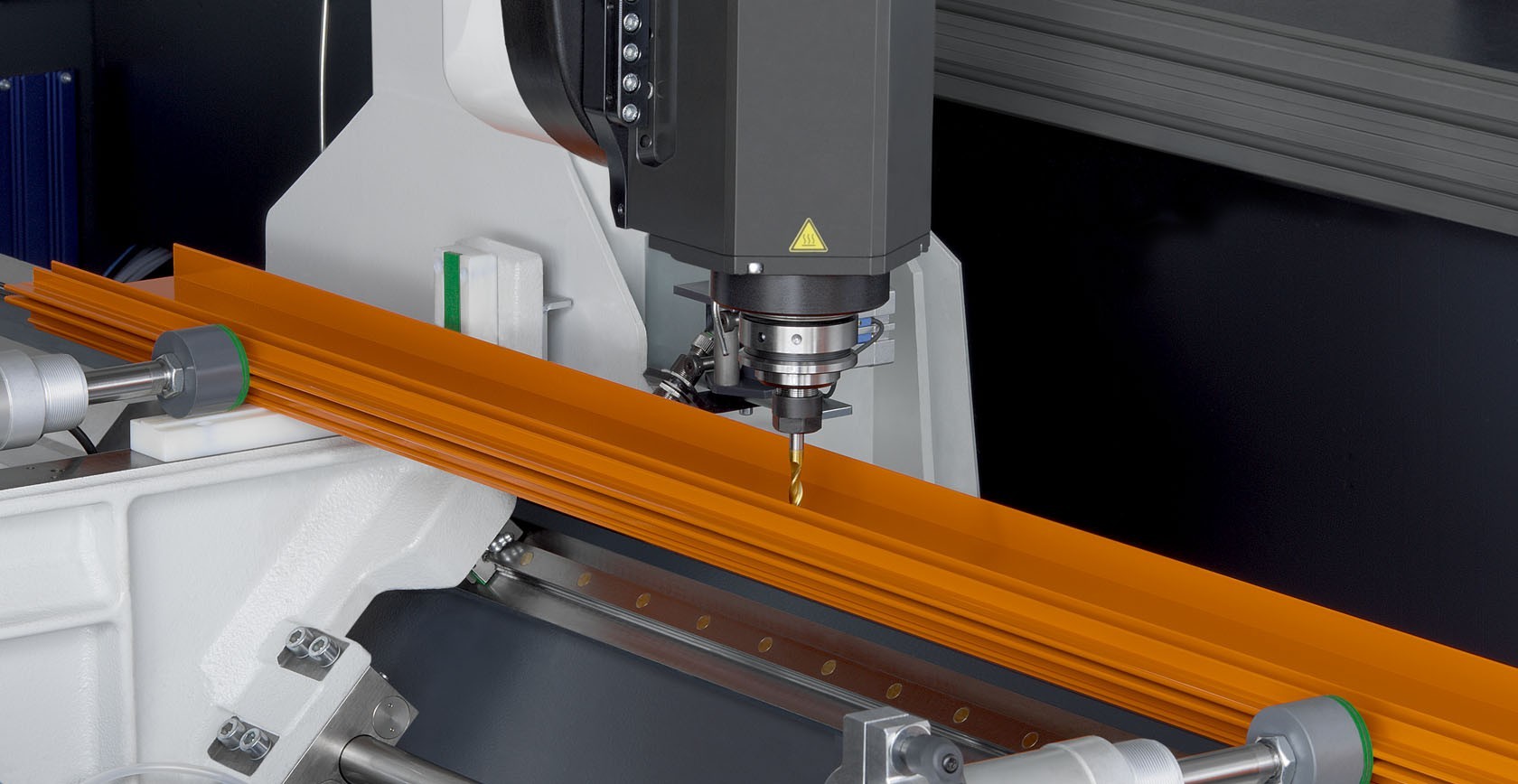

SBZ 122/73  Machining area, Y and Z-axes elumatec

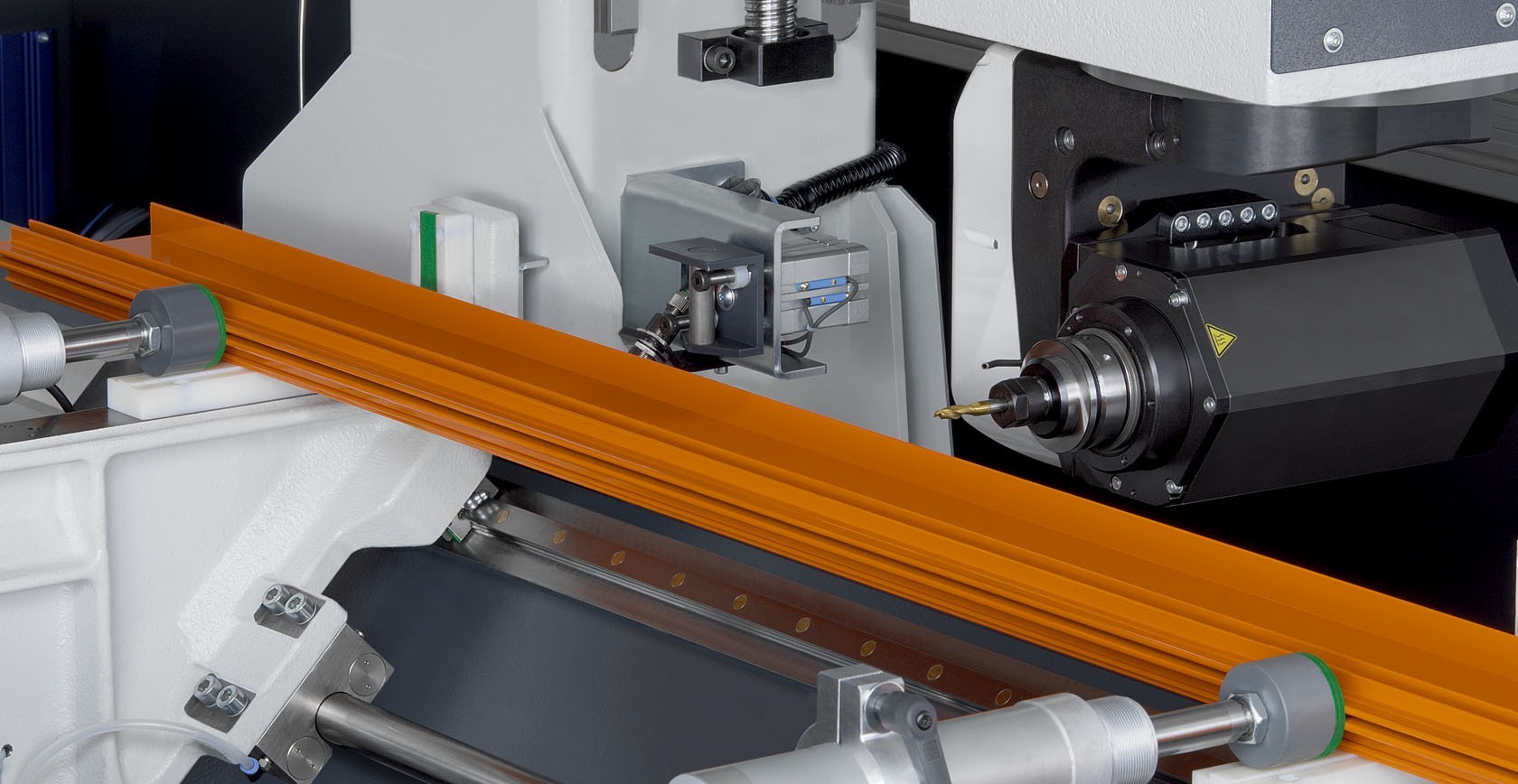

SBZ 122/73  Machining area, Y and Z-axes elumatec
