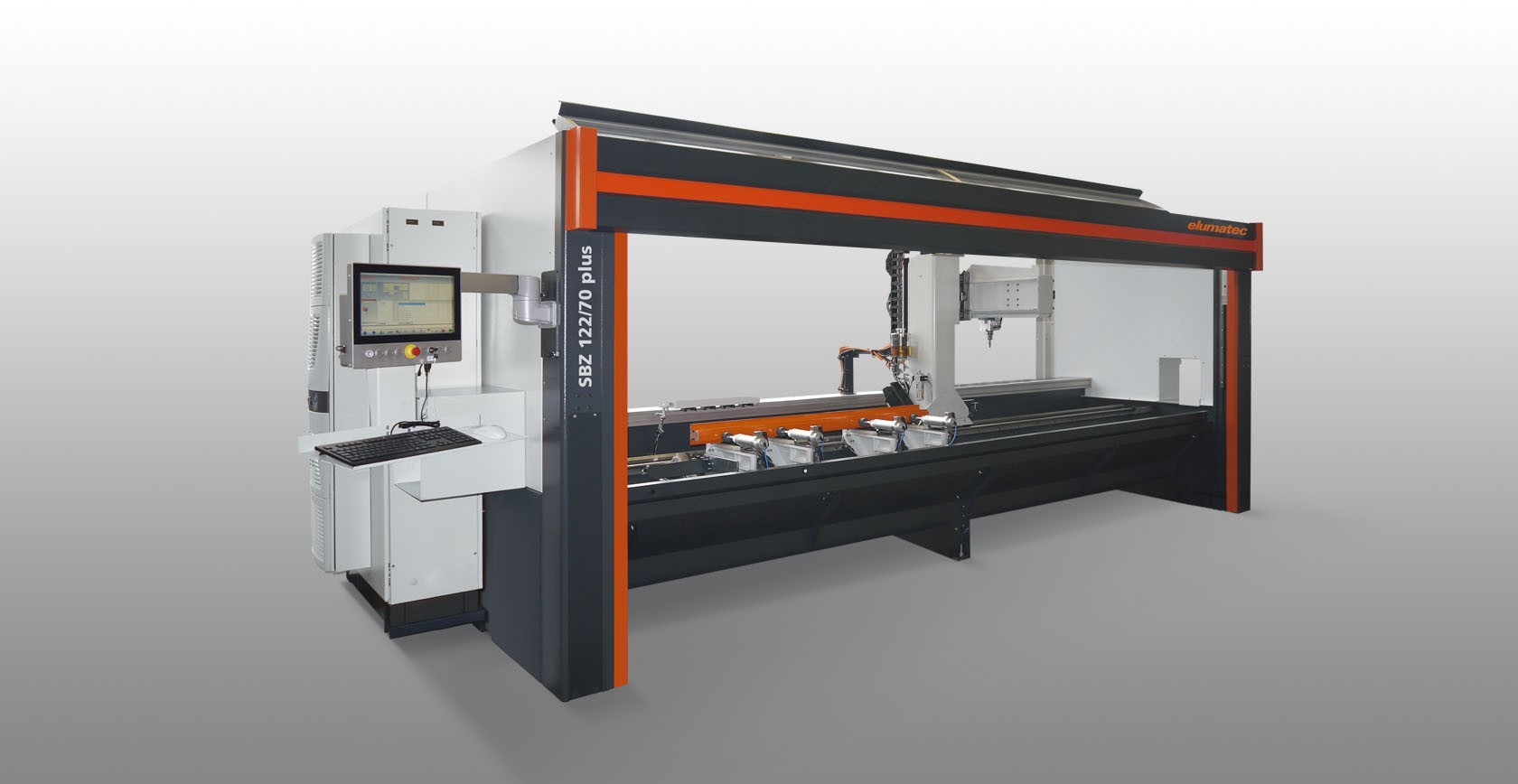

SBZ122/70 Plus

Profile machining centre

home / from a to z / S

Designed for economical and efficient machining of aluminium, PVC and thin-walled steel profiles
All operations, such as routing, drilling and tapping, are performed while the profile bar is stationary to protect the profile surfaces
Better machining results thanks to the intelligent control technology
Fast positioning of the machining unit with up to 60 m/min thanks to dynamic servo drives
Tapping without compensation chuck
Automatic clamp recognition and clamp positioning
Automatic tool changer with four tool tray positions (without tools)
State-of-the-art 3-axis controller
Ergonomic operation thanks to the advanced inclined bed
The absolute rotary encoder system means no axis homing is required
Automatic clamp recognition and positioning prevents collisions
Power torque routing motor with enclosed speed control for short spindle start-up and braking times.
Certified, drive-integrated safety functions
Low power consumption thanks to the intelligent control technology
DC link coupling in the axis drives for greater energy efficiency
Uninterruptible power supply (UPS)
Windows operating system
15.6" panel PC, i3 processor, USB ports and network connection
Simple, stress-free program entry with eluCam on the operating panel, even during operation
Remote online maintenance

Machine configuration

Air-cooled 8 kW, S1 routing spindle
Enclosure to protect the operator
Four horizontal, pneumatic material clamping units
A material stop on the left
Tool holder HSK-F63
Minimum-volume lubrication system
High performance cutting fluid
Hand-held operator terminal
Depth gauge

Options

Tools
Tool holders
Automatic tool changer for max. four standard tools
Automatic tool changer for angle head
HSK-F63 rotating angle head for two tools
Green Line cooling unit for the control cabinet with reduced energy consumption
Barcode scanner
Protective enclosure can optionally completely enclose the machine on all sides
Four clamps as standard. Can be equipped with up to eight clamps
Material reference stop (right) for positioning workpieces with overlength machining
Additional stop for overlength machining (left)
Length measurement on both sides
Double clamping and other accessories on request
18.5" panel PC, i5 processor
21.6" panel PC, i7 processor
Note holder
Sound insulation hood
Swarf trays for swarf removal

Request quote

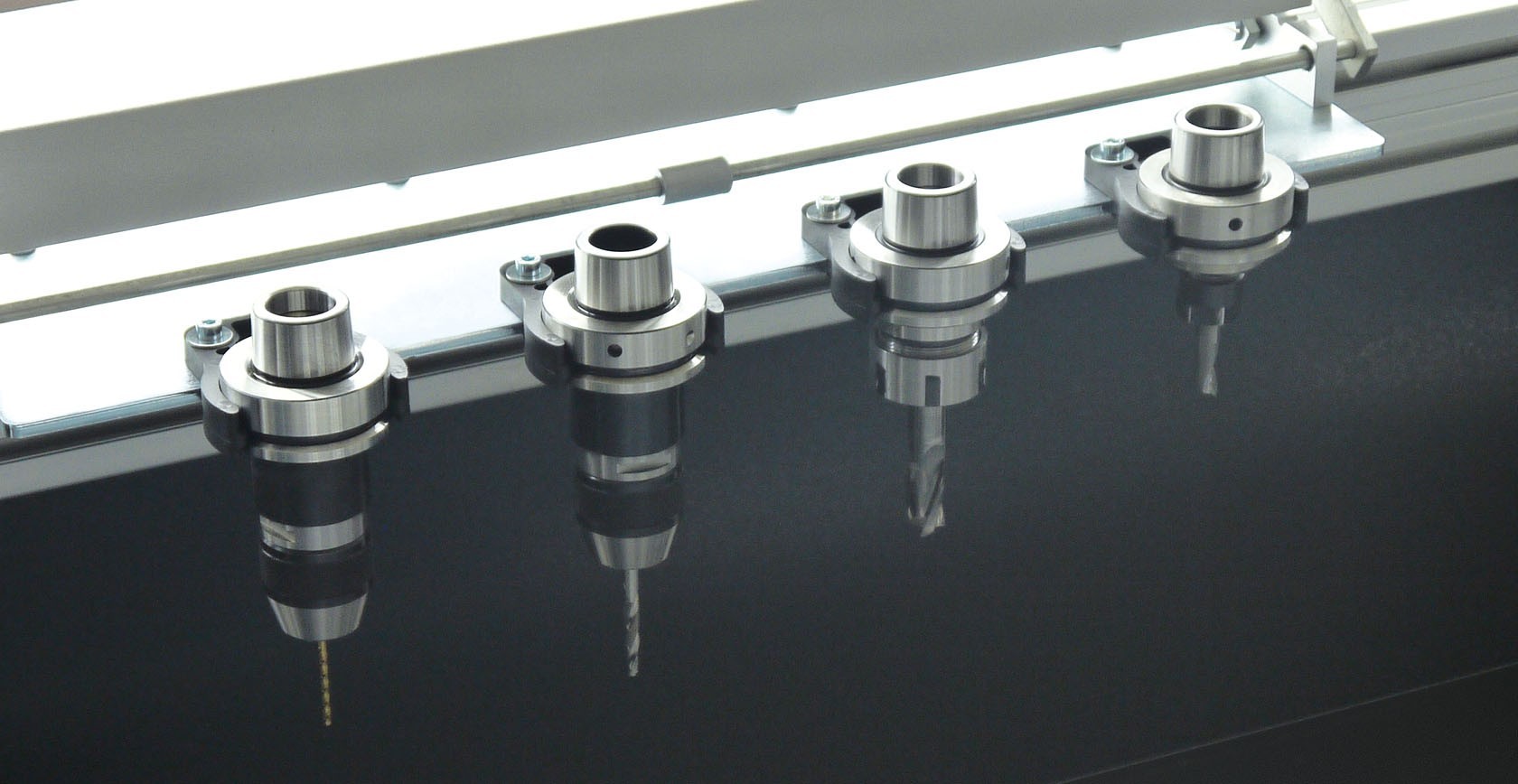

Tool magazine (Optional)

SBZ 122 models with a machining length of four meters are equipped with a stationary tool magazine with four positions as standard. Additional tool magazines can be installed as needed anywhere along the X-axis. (16 standard tools und two angle heads)

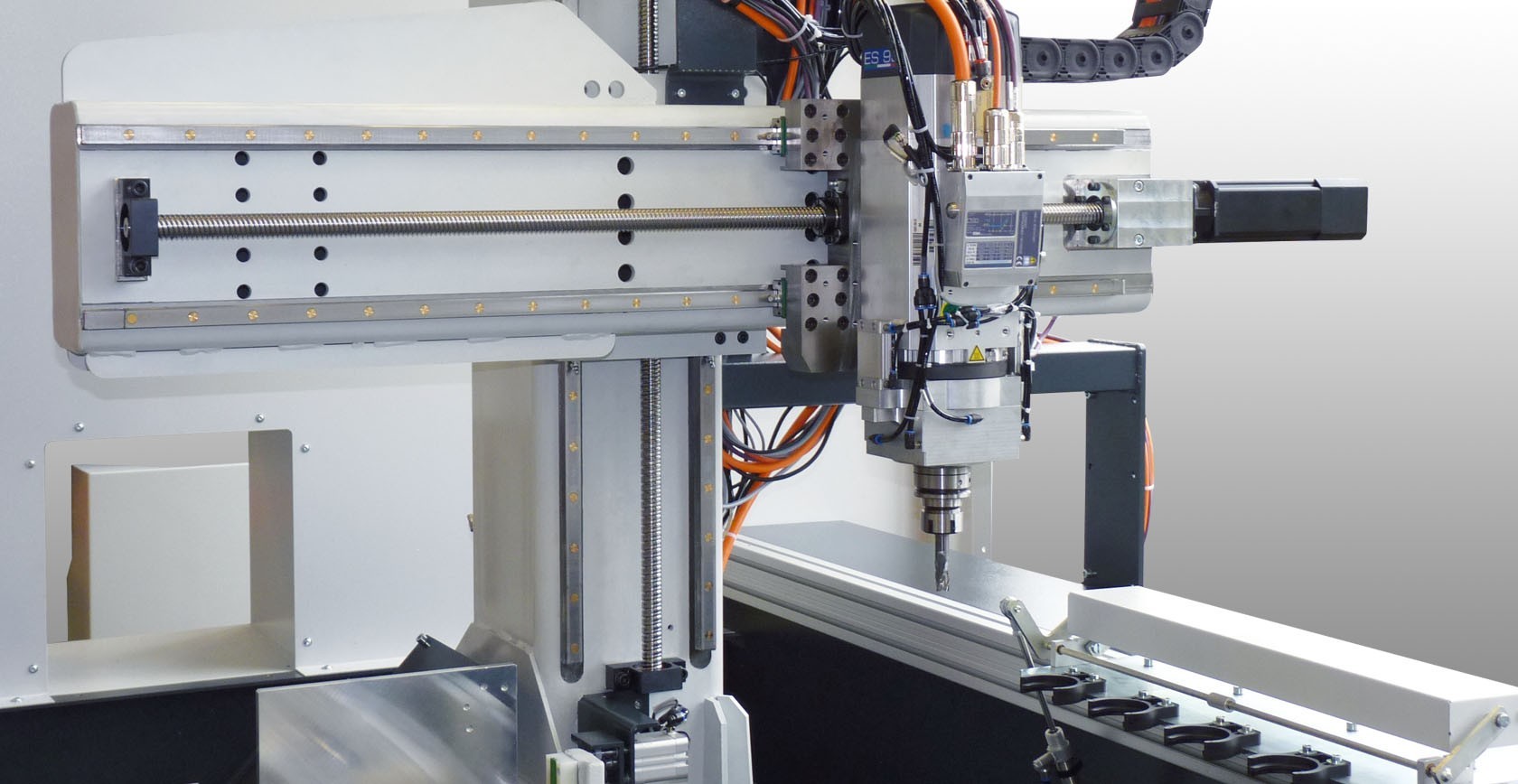

Machining unit (Optional)

Machining area, Y and Z-axes (Optional)

Profile machining from above

Machining area, Y and Z-axes (Optional)

Profile machining from above and from behind

(optional)

Machining area, Y and Z-axes (Optional)

Profile machining from the front and from behind

(optional)

Technical data

Other Products

SBZ 122/70 plus
Max. machining length without profile end machining	4,150 mm
Max. machining length with profile end machining	4,000 mm (optional)
Traverse path X-axis	4,295 mm, Vmax. 60 m/min.
Traverse path Y-axis	910 mm, Vmax. 45 m/min.
Traverse path Z-axis	475 mm, Vmax. 60 m/min.
Direction of machining	1 (from above), (5 optional)
Positioning accuracy	+/- 0.1 mm
Routing spindle speed	max. 24,000 rpm
Routing spindle power	8 kW, S1 with feedback (air-cooled)
Tool holder	HSK-F63
Tool changing	automatic
Tool tray positions in the automatic magazine	4 (max. 16)
Angle head	Optional
Disc milling cutter diameter	100 mm
Saw blade diameter	-
Tool length (from extent of taper)	max. 150 mm
Clamp positioning	automatic
Clamps	Basic (with round guides)
Software	eluCam
Compressed air supply	> 7 bar
Power supply	400 V, 3~, 50 Hz, 25 A
Air consumption per minute	approx. 185 l with spraying
Total length	6,592 mm
Depth	2,171 mm
Height	3,000 mm
Weight	approx. 2,900 kg
