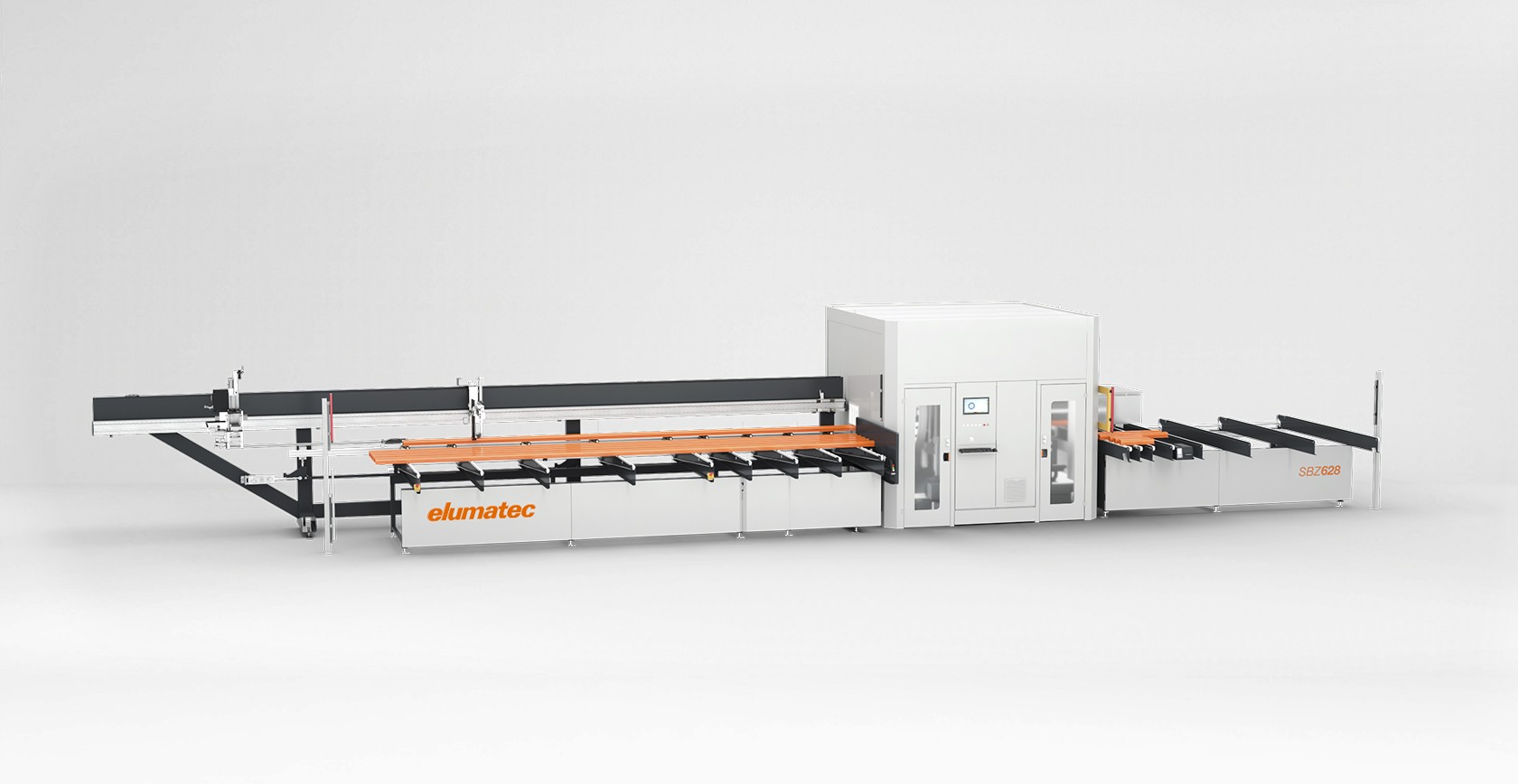

SBZ628 XL


Profile machining centre

The SBZ 628 series offers ultimate flexibility in both machining and length cutting of aluminium profiles for metal construction and industrial applications. Its production reliability, speed, cost-effectiveness and impressive versatility make the flexible profile machining centre the perfect all-rounder. It allows fully automatic machining of various profile types, such as for windows, doors and curtain walls, using up to eight routing units that can operate freely on the profile cross-section in coordination with innovations such as combination clamping systems, travelling clamps and pivoting grippers.



SBZ 628 XL: pass-through system for windows, doors and curtain walls

  • Up to eight spindles for routing or drilling
  • Different separating cut strategies from 22.5° to 157.5° and notching (pivoting)
  • Quick-change systems for tension rollers and clamping plates for atypical profiles
  • Mode for manual insertion and clamping of non-stationary profiles.



Machine configuration

  • Left loading magazine for automatic production processes
  • The routing spindles can be positioned continuously over 360° on the profile bar, and the cutting angle can be adjusted continuously over 360° for machining profiles in various clamping situations
  • A generously dimensioned noise abatement enclosure and the easy-access controls and maintenance elements simplify operation
  • Machined profiles are placed gently onto the unloading magazine
  • Versions customised to meet specific customer requirements can be designed upon request



Options

  • Bar lengths up to 10,500 mm
  • Expansion options for outfeed of up to 6,000 mm/8,000 mm
  • “Full bar" outfeed
  • Outfeed of short parts >150 mm
  • Cycling short parts (in single bar mode) >50 mm >150 mm
  • Round tube machining
  • Additional arms in the infeed
  • Label printer
  • Vapour extractor
  • Air conditioner, control cabinet for ambient temperature <35 °C
  • Tools
  • Saw blades

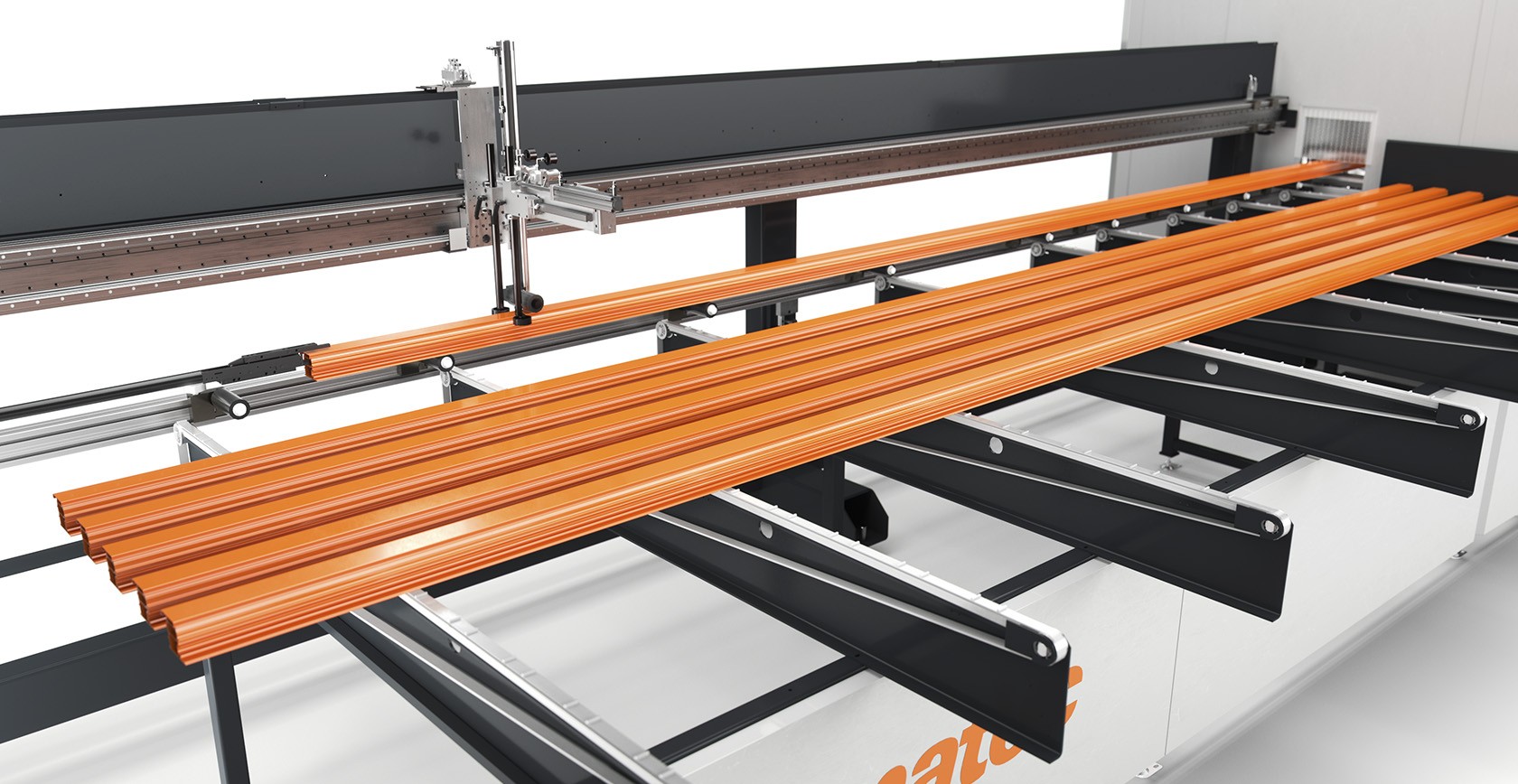

SBZ 628 XL Infeed loading magazine elumatec

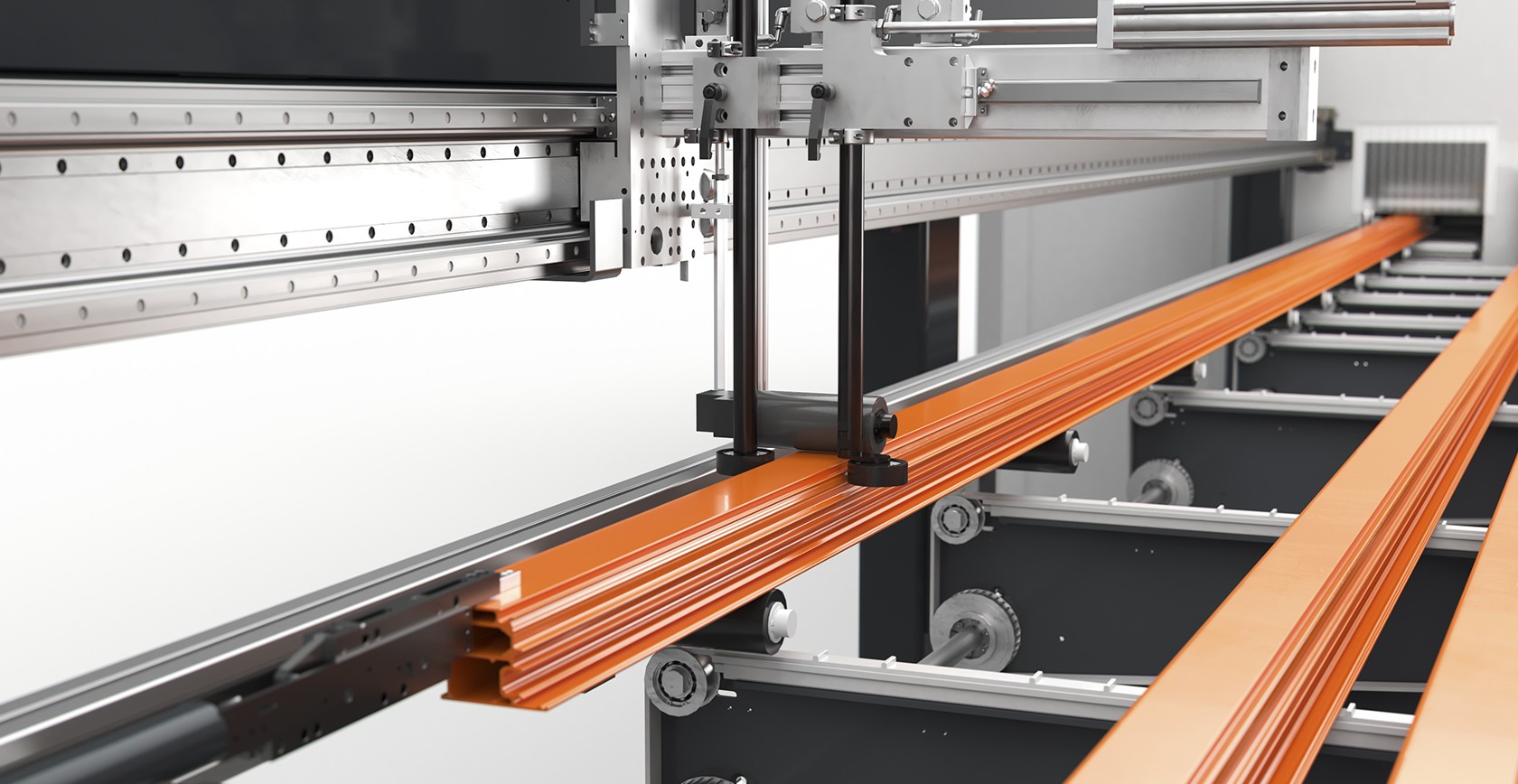

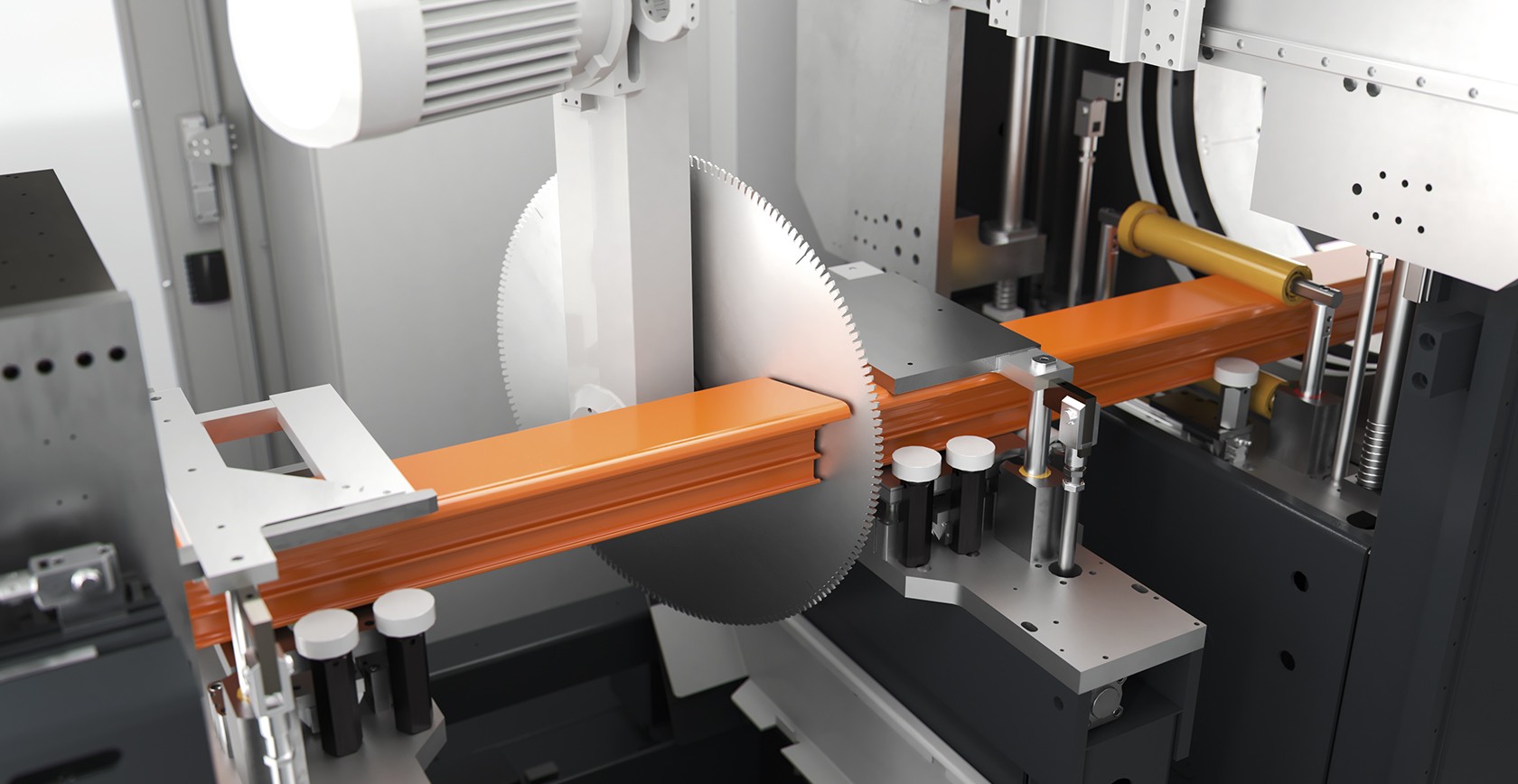

SBZ 628 XL Cutting unit elumatec

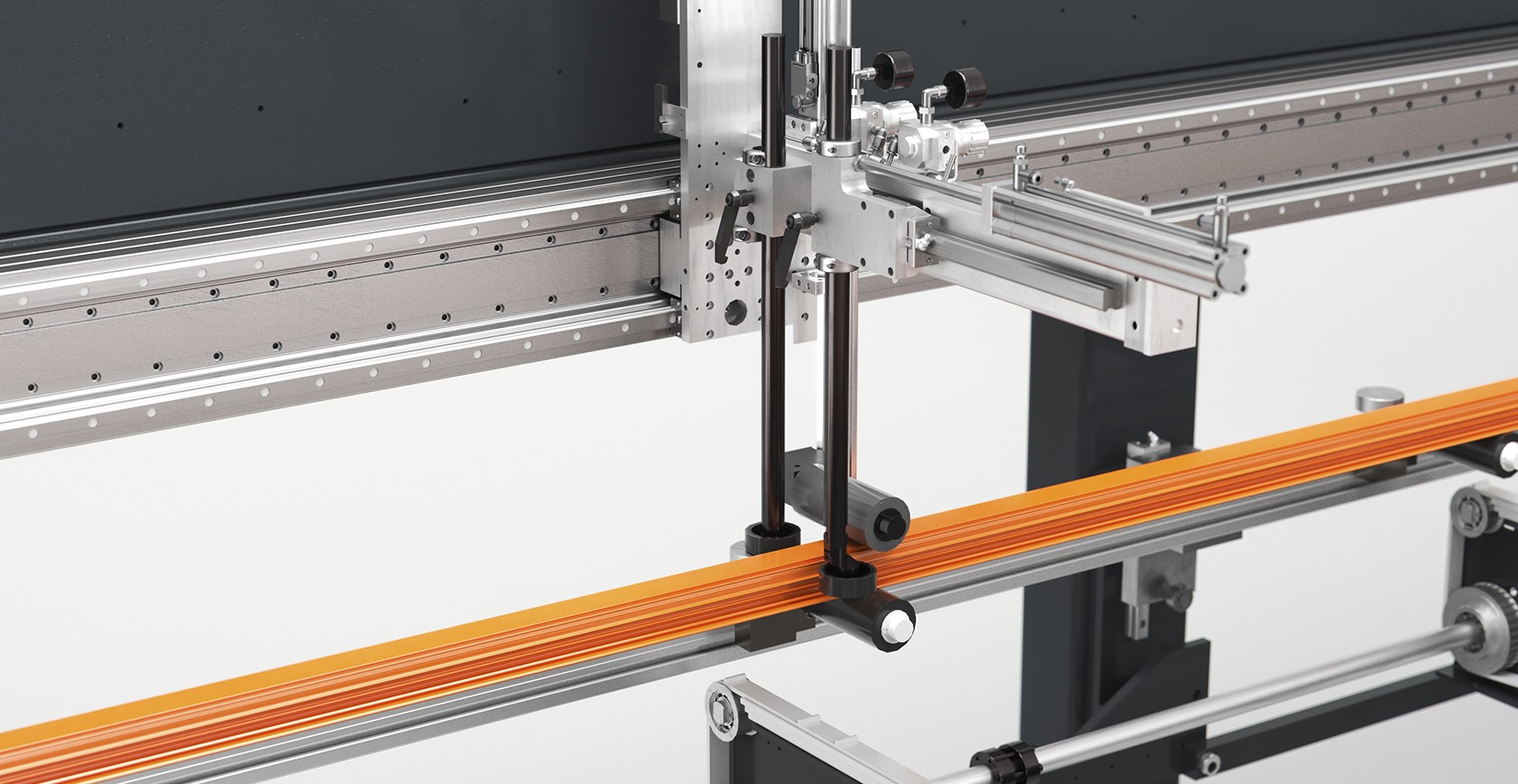

SBZ 628 XL Gripper system elumatec
SBZ 628 XL Profile clamping elumatec

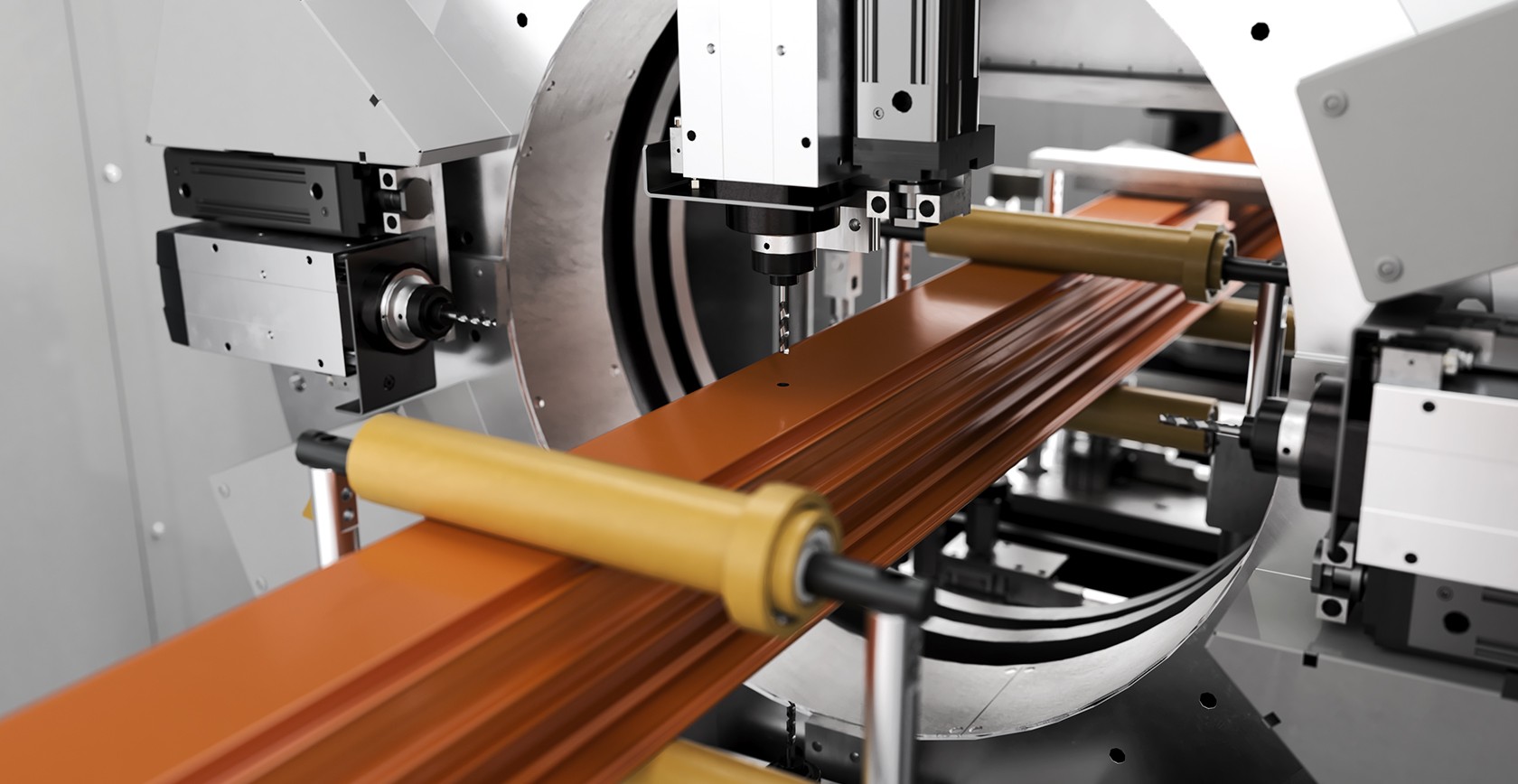

SBZ 628 XL Machining module elumatec

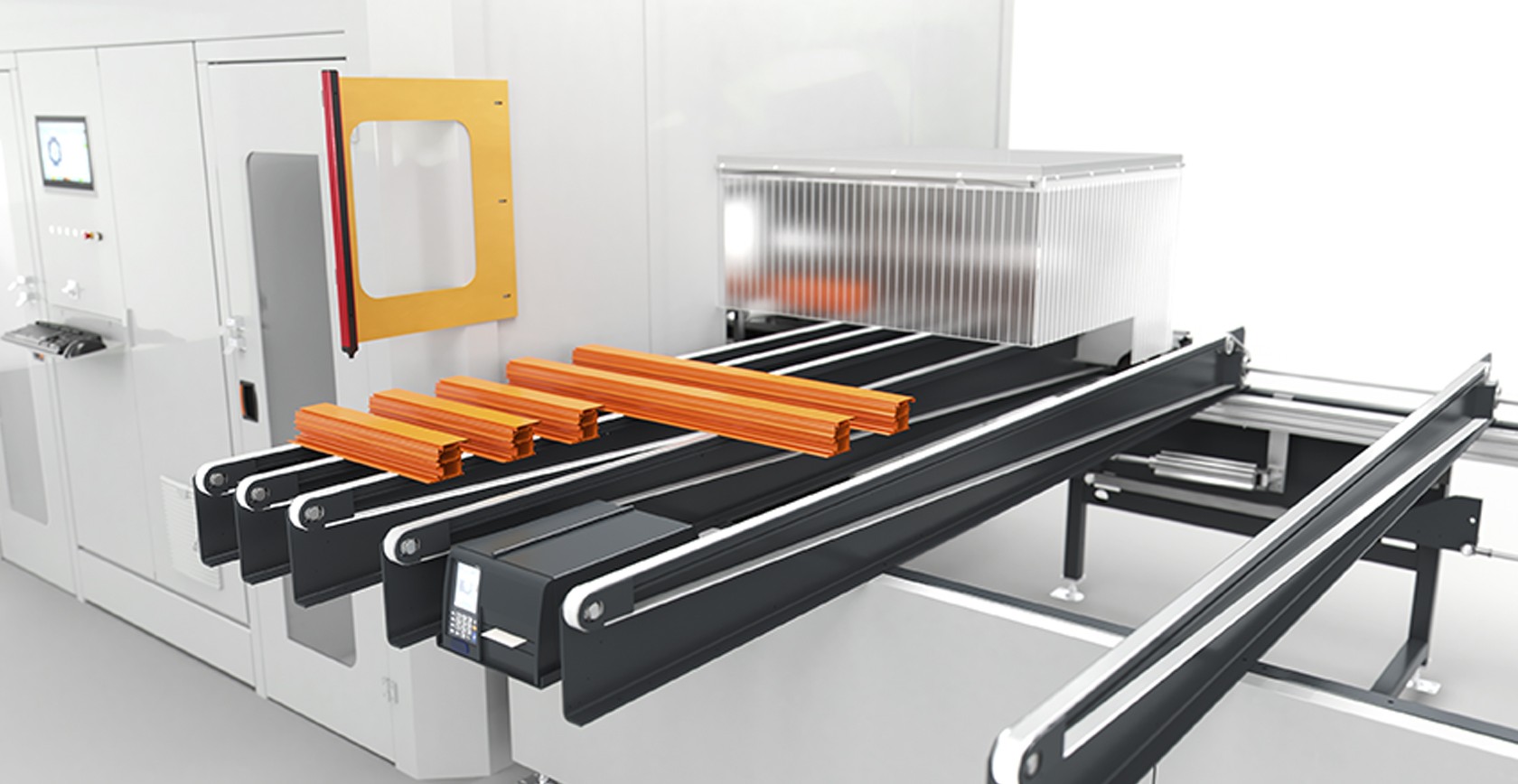

SBZ 628 XL Profile outfeed with unloading magazine elumatec
