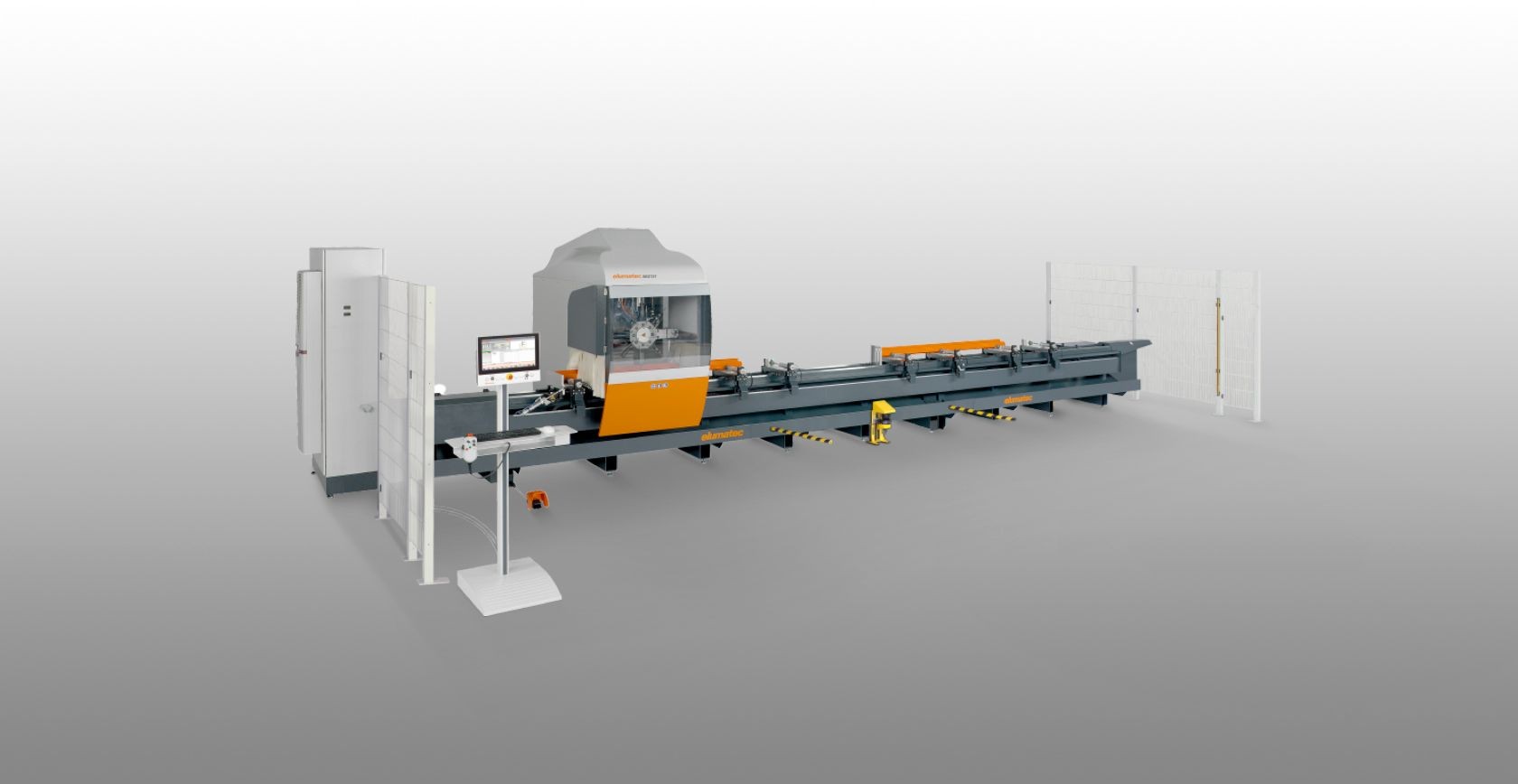

SBZ130


Profile machining centre

  • 3-axis profile machining centre
  • Designed for economical and efficient machining of aluminium, steel and stainless steel profiles

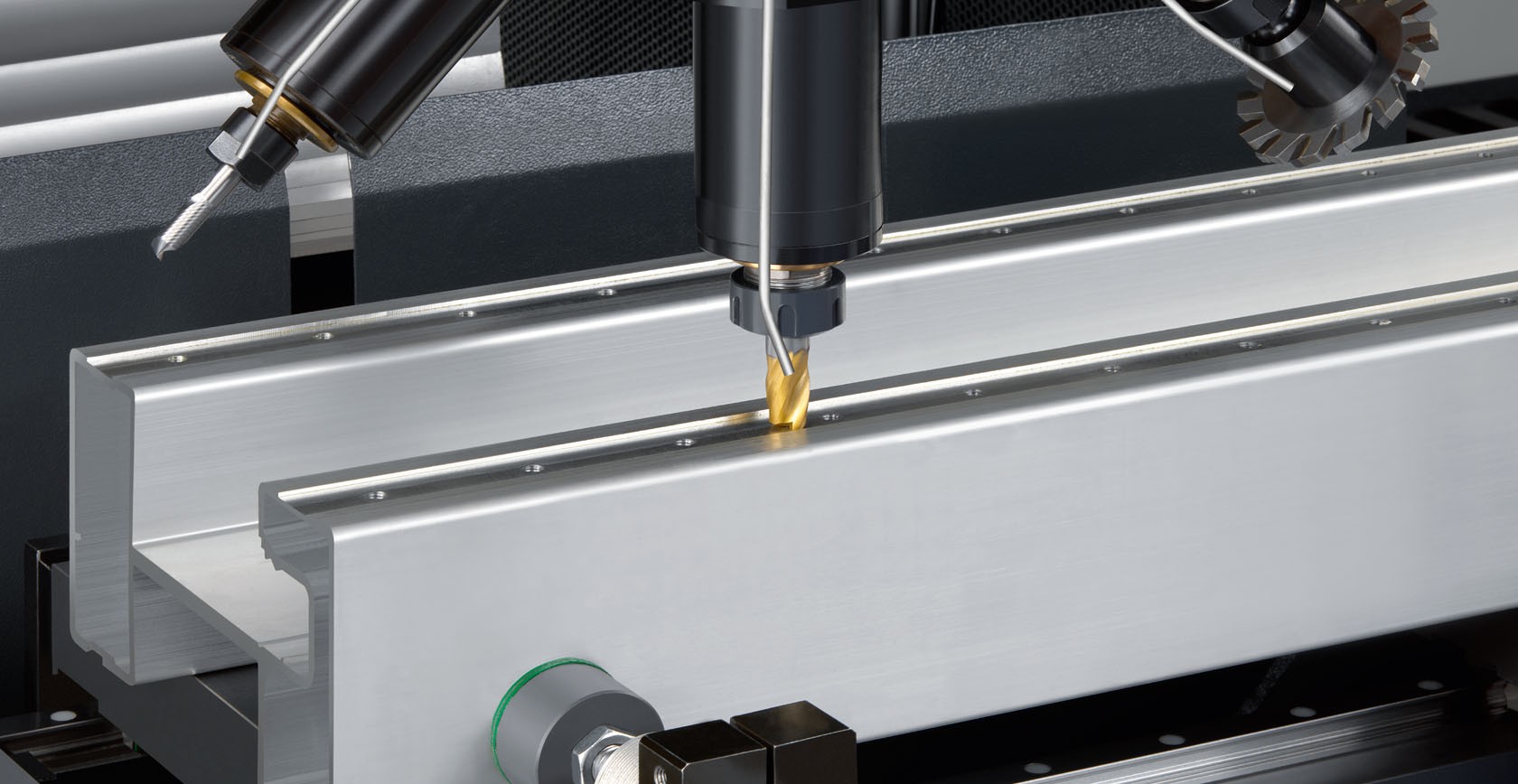

  • All operations, such as routing, drilling and tapping, are performed while the profile bar is stationary to protect the profile surfaces
  • The on-board turret head ensures that tool changing times are kept very short, thereby optimizing machining cycles
  • The turret head can be equipped with eight tools or four angle routing heads
  • Automatic clamp positioning enables the machine to position the material clamps
  • 3-axis controller
  • The tool spindle is designed as an additional axis
  • Angle heads for lateral and profile end machining
  • 18.5" panel PC, USB ports and network connection
  • Windows operating system
  • eluCam



Machining lengths

SBZ 130 – 4.2 m

  • Max. machining length with profile end machining, 4,080 mm
  • Max. machining length without profile end machining, 4,200 mm



  • SBZ 130 – 7.2 m

  • Max. machining length with profile end machining, 7,080 mm
  • Max. machining length without profile end machining, 7,200 mm



  • SBZ 130 – 8.5 m

  • Max. machining length with profile end machining, 8,380 mm
  • Max. machining length without profile end machining, 8,500 mm



  • SBZ 130 – 10.2 m

  • Max. machining length with profile end machining, 10,080 mm
  • Max. machining length without profile end machining, 10,200 mm



  • SBZ 130 – 11.5 m

  • Max. machining length with profile end machining, 11,380 mm
  • Max. machining length without profile end machining, 11,500 mm



Options

  • Two separate working zones enable machining in shuttle operation. There is also a central laser scanner on the operator’s side to protect the area for maximum safety.
  • Automatic length measurement

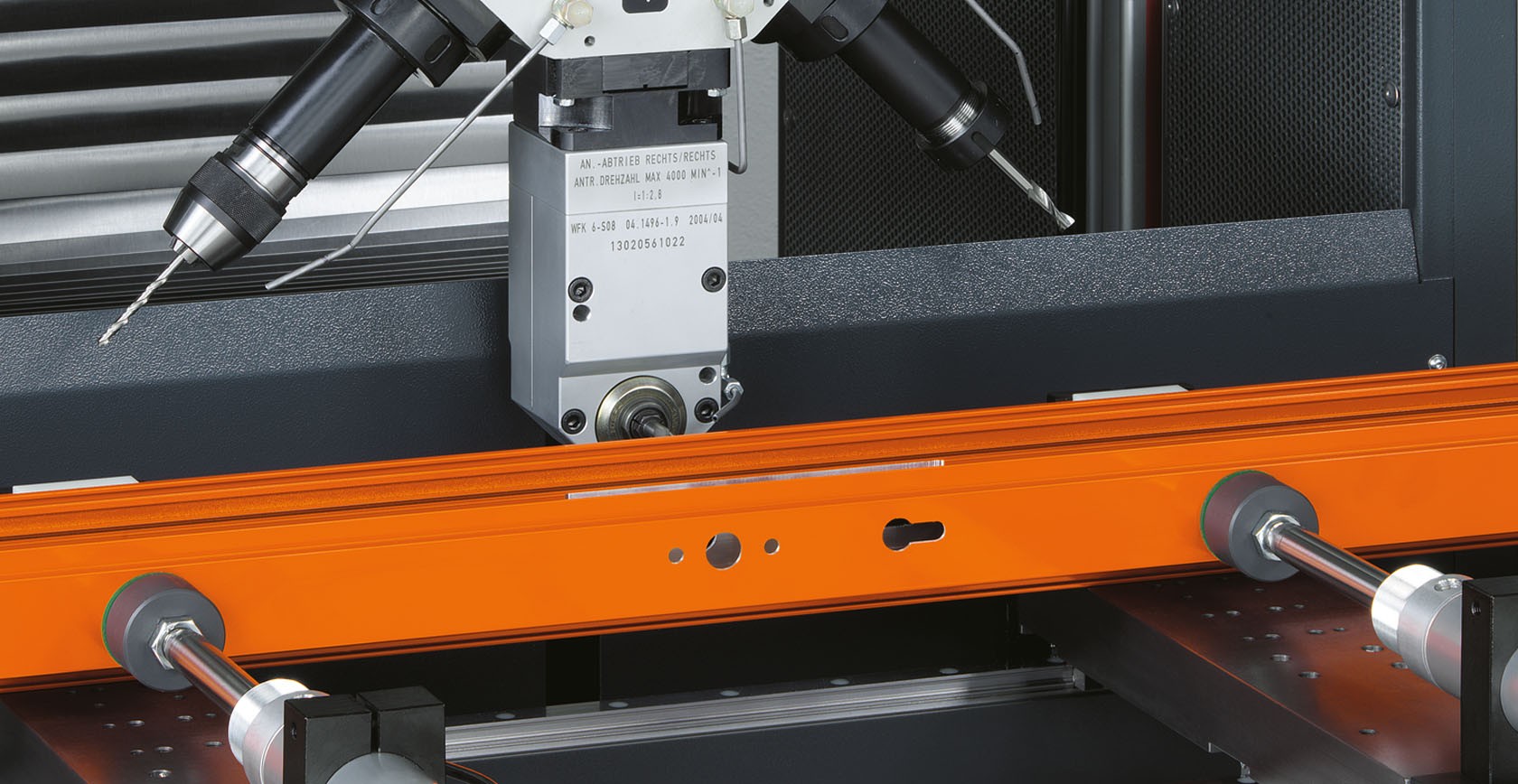

  • Angle routing heads
  • High-speed spindle

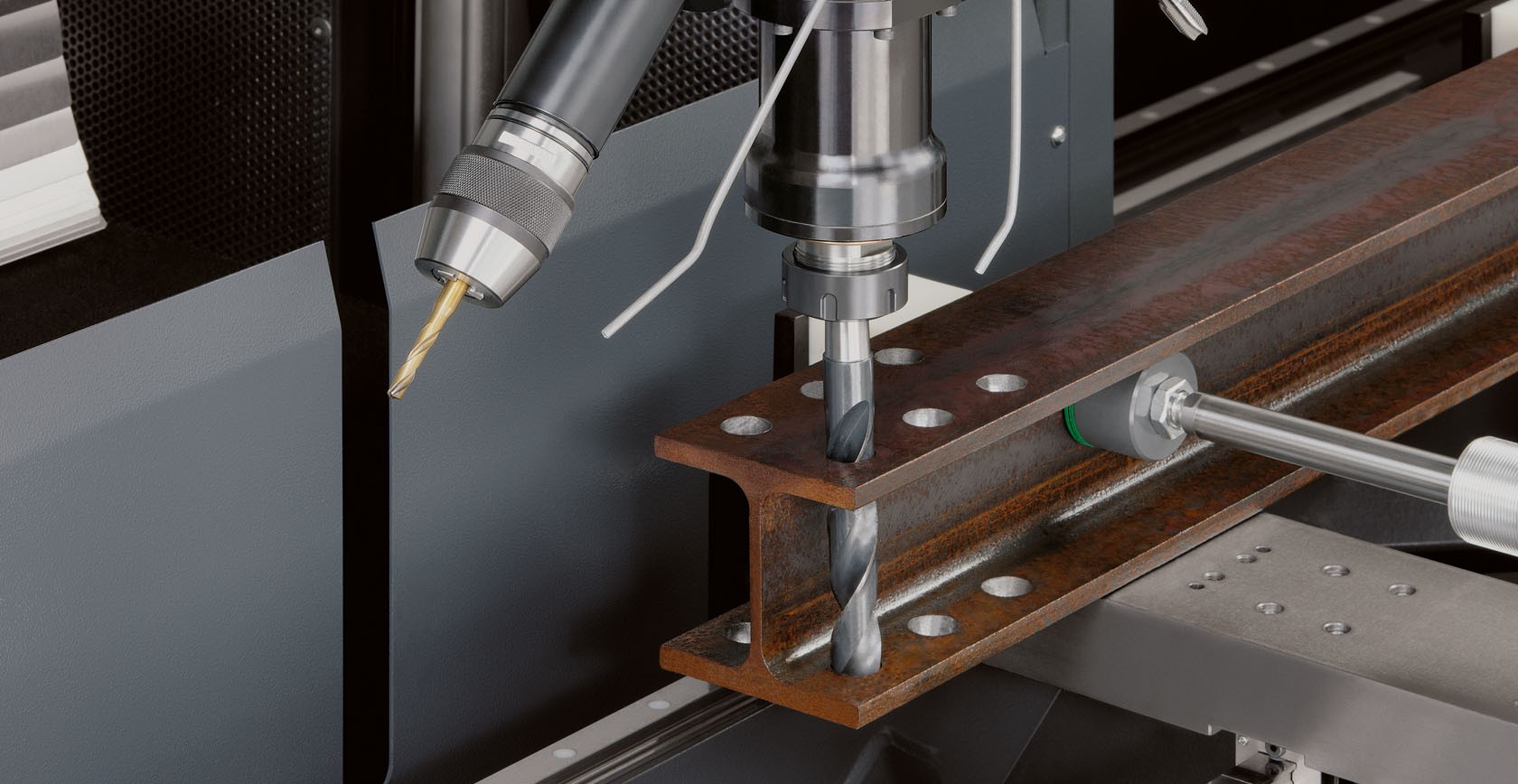

  • Slow spindle
  • Saw head
  • Clamping unit accommodates double profile machining
  • Barcode scanner
  • Collet chucks
  • Collets
  • Tools
  • eluCad (office software package for optimised production management)
