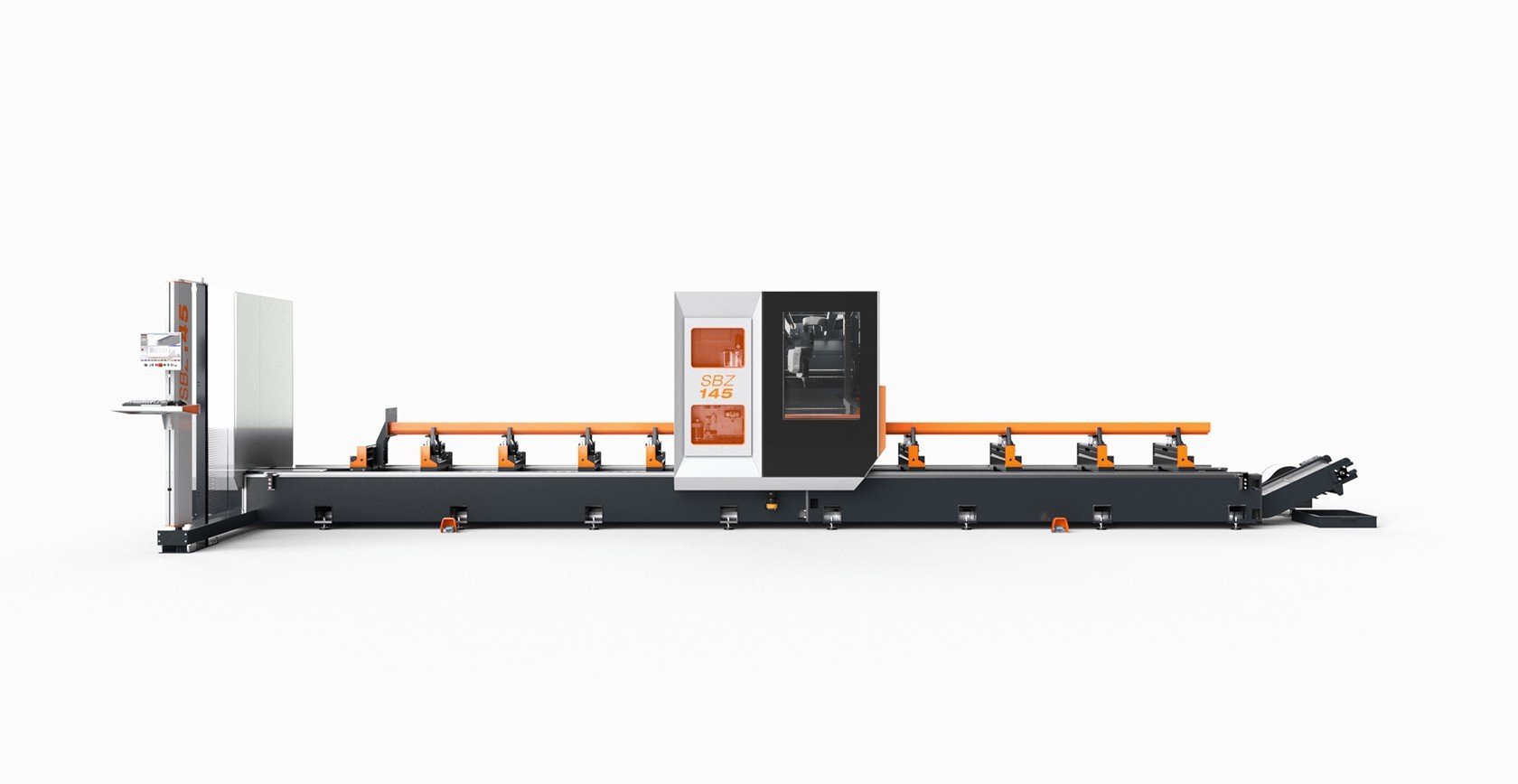

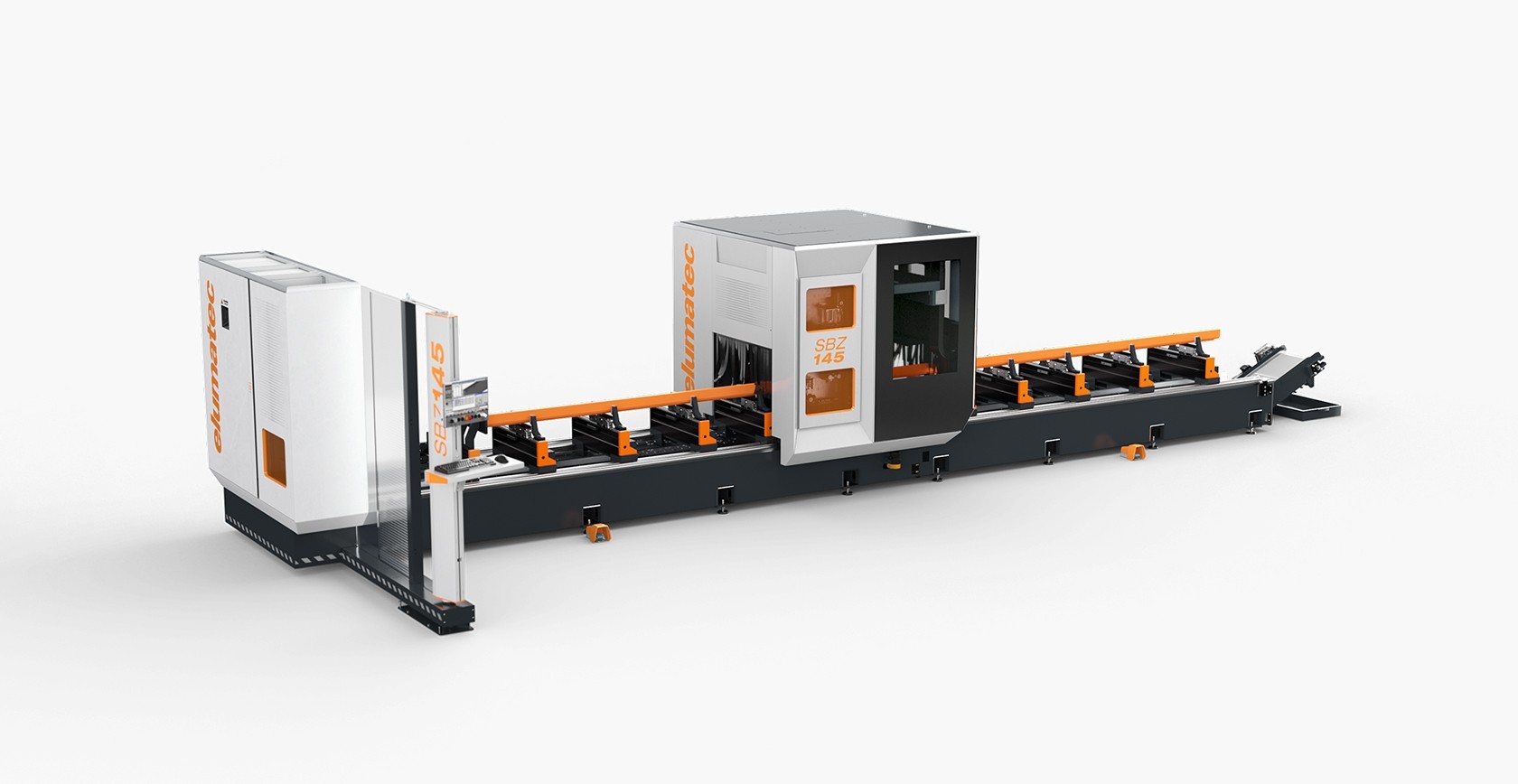

SBZ145


Profile machining centre

Designed for the requirements of metal construction and industrial use, the SBZ 145 with its 5 processing axes offers a processing area of 560 mm x 350 mm x 7,500mm. Equipped with an autonomous clamping axis and a generously designed tool magazine for milling cutters, drills, thread cutters and saw blades. The SBZ 145 has numerous processing options for cutting from the profile bar with processing or optionally in pendulum operation with processing of pre-cut individual parts (2x 3.250mm).

SBZ 145 Two separate workzones elumatec
SBZ 145 For metal construction and industrial use elumatec

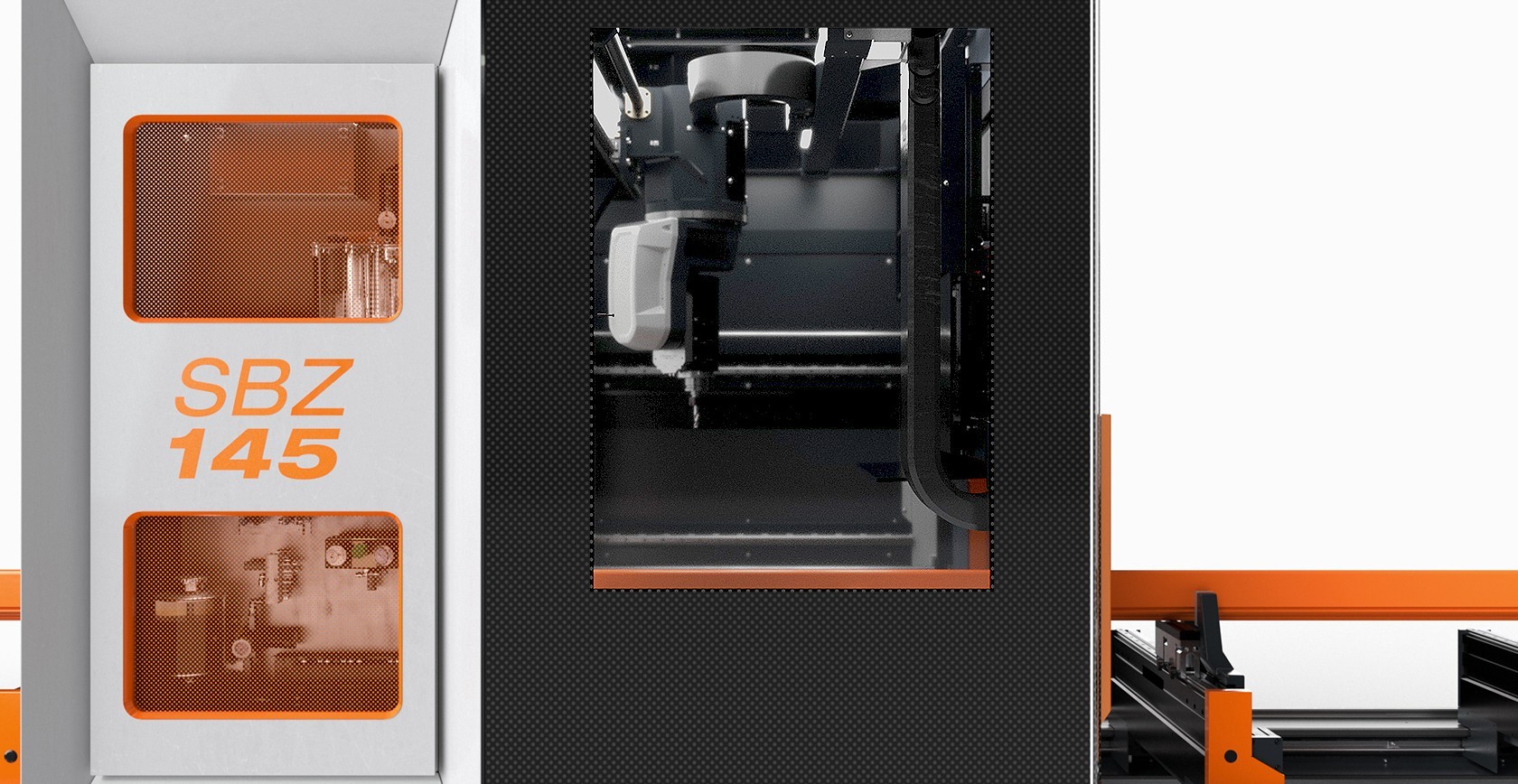

SBZ 145 Viewing window elumatec
SBZ 145 Protection of profile surface elumatec
SBZ 145 Bar processing elumatec

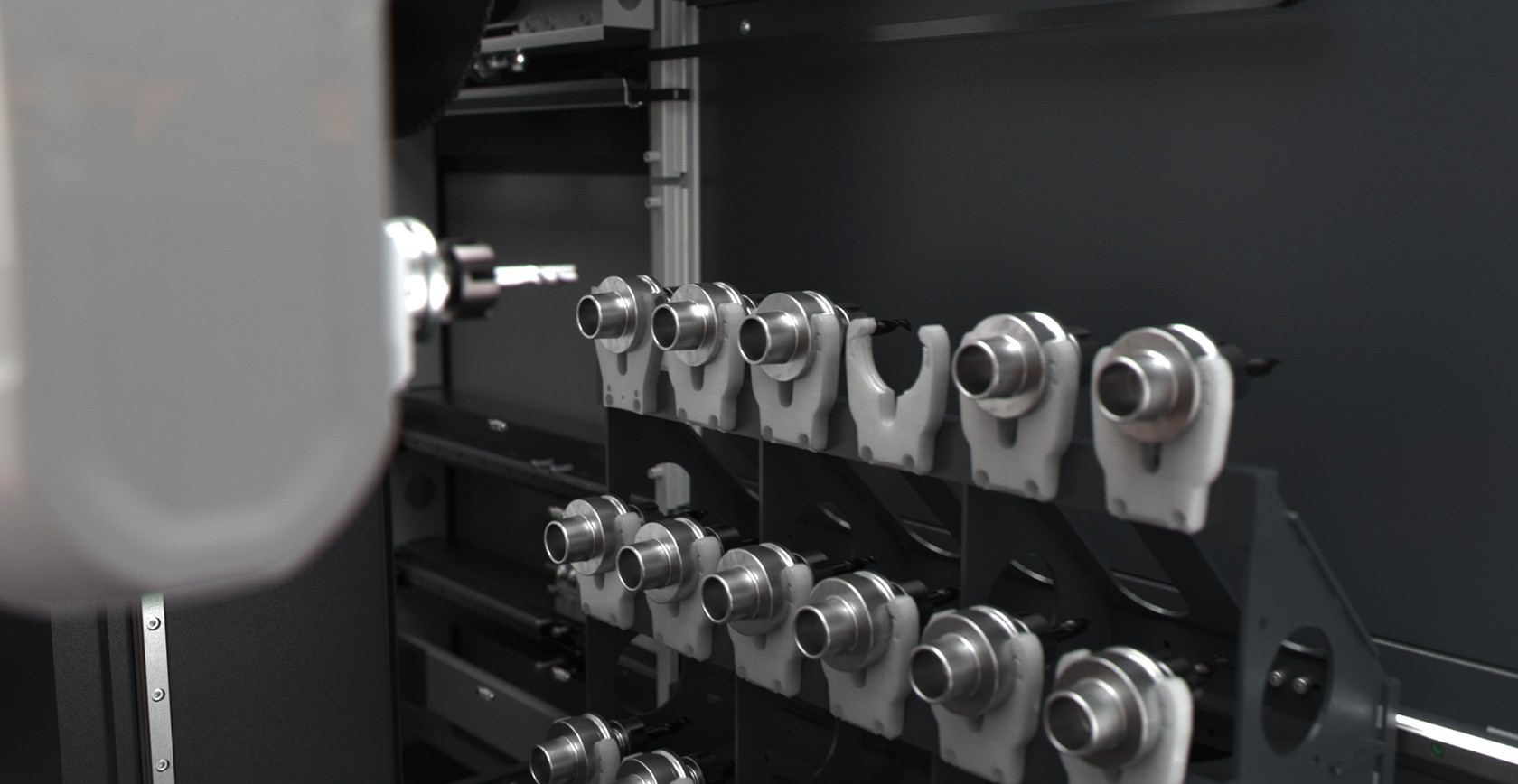

SBZ 145 Tool magazine elumatec
SBZ 145 Robust and stable portal design in modern appearance elumatec

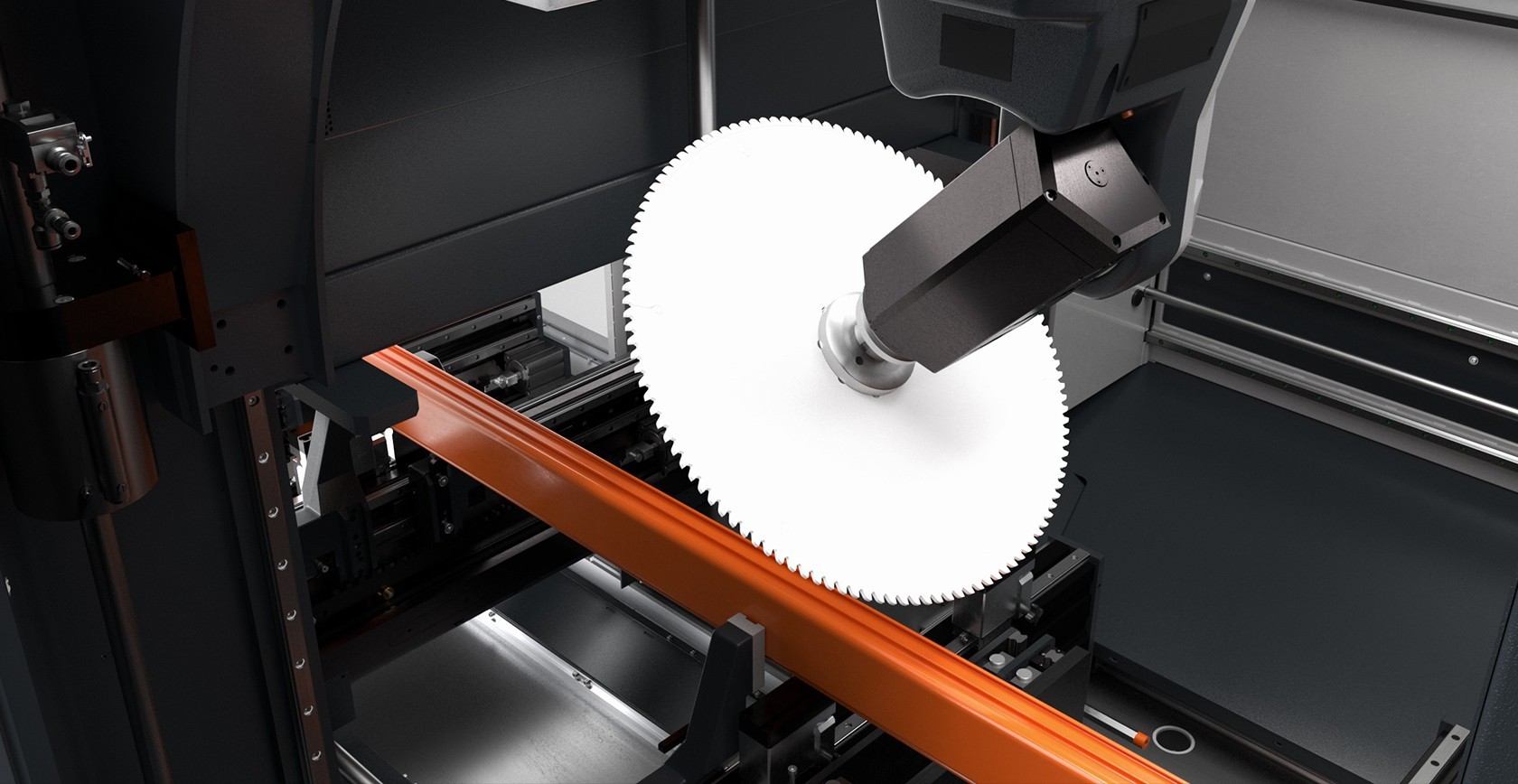

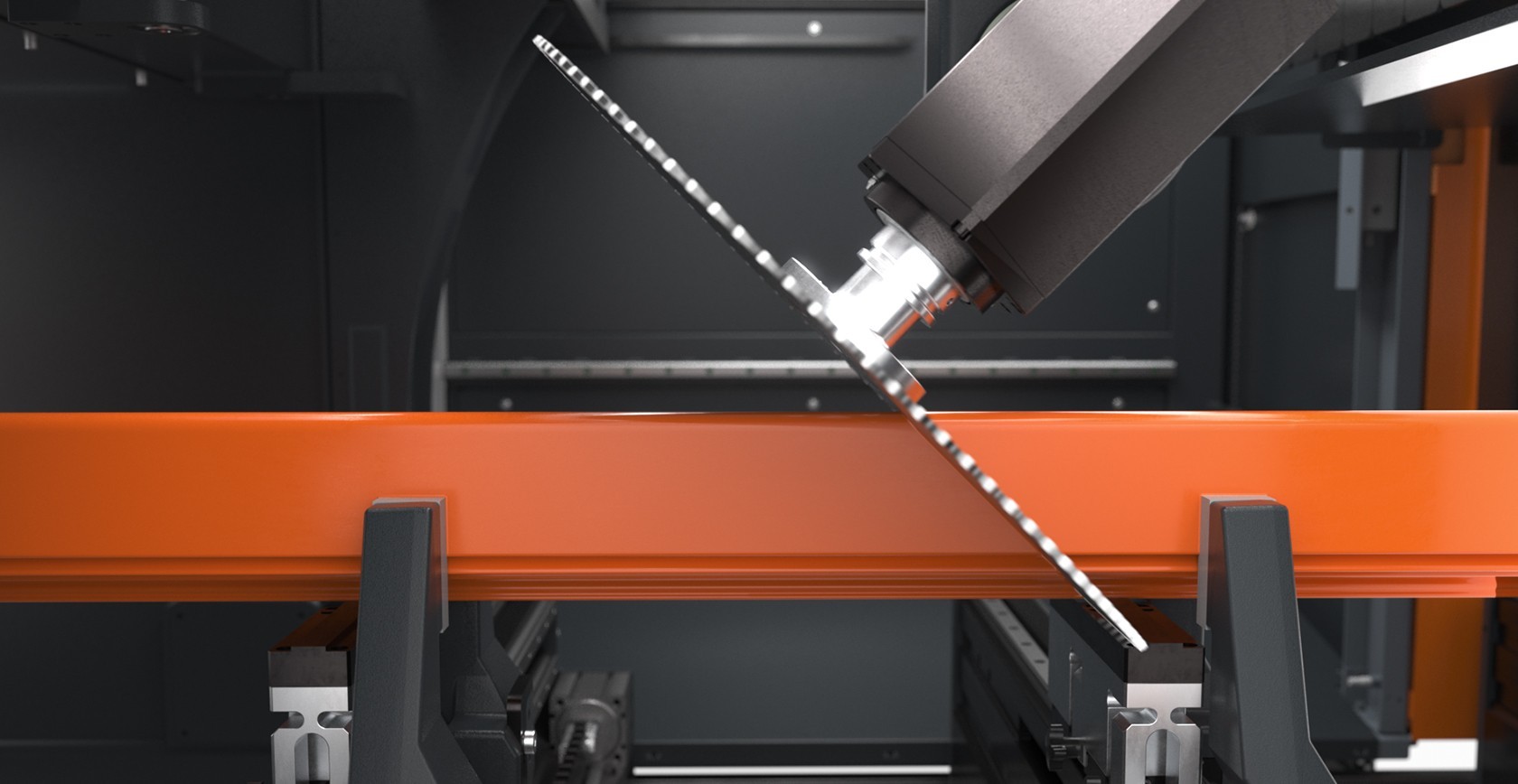

SBZ 145 Sawblades elumatec
SBZ 145 Optimized processing cycles elumatec
SBZ 145 Fast and easy clamp positioning elumatec
SBZ 145 Low machine hight elumatec
SBZ 145 Clean and efficient solution for waste pieces elumatec
Technical data arrow_drop_down

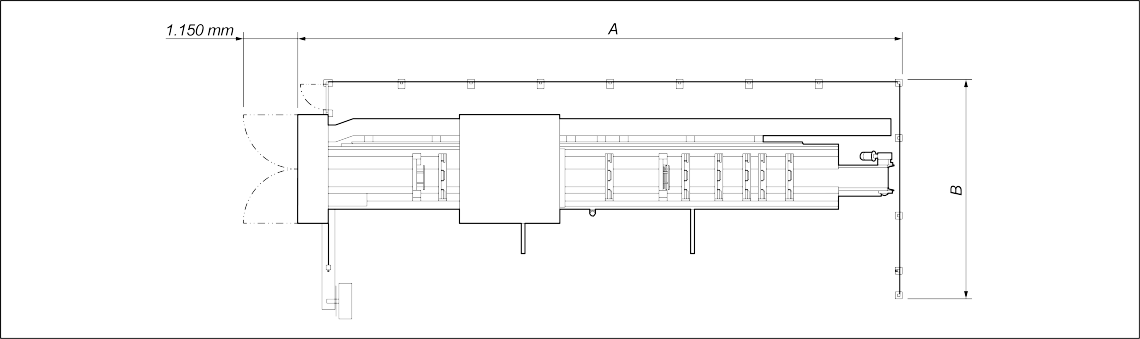

LAYOUT

The overall dimensions and the weight may vary depending on the product configuration

AXIS STROKES
X AXIS (mm)
7.500
Y AXIS (mm)
1.300
Z AXIS (mm)
730
A AXIS
-110° / +110°
C AXIS
-182° / +182°
ELECTROSPINDLE
Maximum power in S1 (kW)
11
Maximum speed (rpm)
24.000
Toolholder cone
HSK 63F
OPERATING MODE
Pendular mode with 2 lefthand materialstops

Bar processing

SAFETY DEVICES AND PROTECTIONS
Side access guard (fence / protective panel)

Access protection frontside (Light curtain / laser)

Protective device rear side (fence)

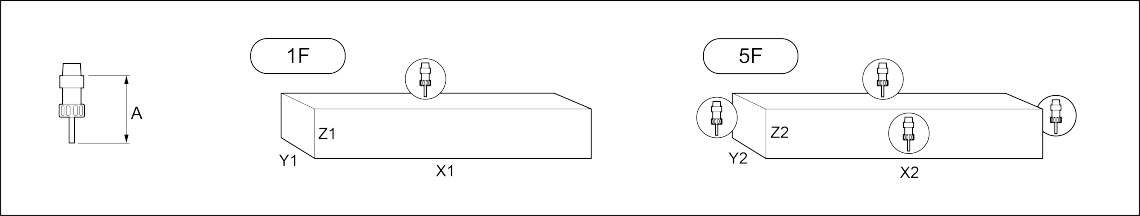

MACHINING FACES
With direct tool (front/top/back, ends)
5
WORK AREA
AUTOMATIC TOOL MAGAZINE
Tool magazine traveling along

U AXIS (Tool changer)

Magazin Type: linear tool changer

Number of tools in the standard magazine
18
Number of special tools in the magazine: lame
2
Tool position level 1 (up to D=100mm and L=210mm)
6
Tool position level 2 (up to D=63mm and L=210mm)
6
Tool position level 3 (up to D=63mm and L=145mm)
6
WORKPIECE LOCKING
V AXIS (Autonomous clamp positioning)

Number of clamps
8
Number of additional clamps with max. travel
2
PROFILE POSITIONING
Number of material stop (clamping position left)
2
Material stop in position 2 (connected to the clamp)

Included
