DG142 XL

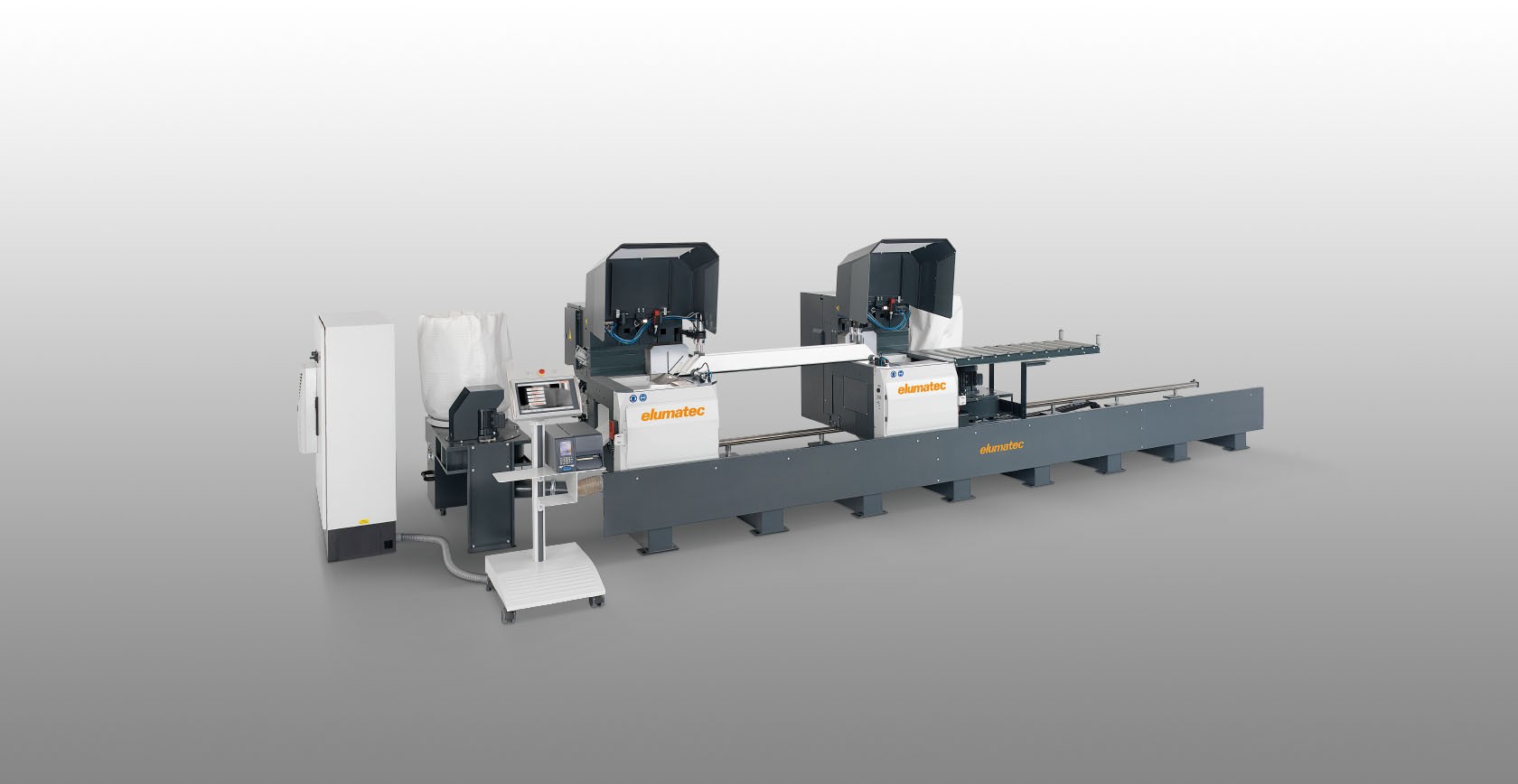

Double mitre saw

home / from a to z / D
  • External-dimension cuts possible for all cutting variants
  • Ideal machine for high-volume series production when cutting at 90° and 45°
  • Equipped with saw blades and safety hoods as standard
  • Equipped with E 190 digital display and handwheel adjustment as standard
  • Vertical pneumatic material clamping unit



Cutting length variants

  • 3,000 mm
  • 4,500 mm
  • 6,000 mm
  • 7,500 mm
  • Additional lengths on request!



Options

  • Manual angle adjustment for each unit, digital
  • Additional software for E 590: optimisation program, software module for chop and oversize length cuts for E 590 and E 390 as standard
  • Label printer for variants with E 390 and E 590
  • Mobile workpiece support
  • Material clamping units
  • Transom stop and lead-cut stop
  • Extraction system
  • Stationary and/or travelling roller conveyor
  • Saw blades
  • 5.5 kW motors for aluminium machining
  • Hydro feed for aluminium machining
  • High performance cutting fluid for aluminium machining
  • Pulsed coolant system for aluminium machining
  • Cycling
  • Safety fence



Controller variants

  • Manual cutting length adjustment with E 190 digital display
  • Positioning control E 390
  • PC control E 590
08. Double mitre saw DG 142 XL (Optional)

Minimum dimension for 45° cut: 400 mm

09. Double mitre saw DG 142 XL (Optional)

Minimum dimension for 90° cut with short stop on the travelling unit: 213 mm

10. Double mitre saw DG 142 XL (Optional)

Minimum dimension for 45° cut with short stop on the travelling unit: 213 mm

11. Double mitre saw DG 142 XL (Optional)

Minimum dimension for 90° cut with short stop on the stationary unit: 213 mm

12. Double mitre saw DG 142 XL (Optional)

Minimum dimension for 45° cut with short stop on the stationary unit: 213 mm

13. Cutting diagram DG 142 XL (Optional)

Pneumatic clamping device horizontal travel = 80



Z = clamping range

14. Cutting diagram DG 142 XL (Optional)

Pneumatic clamping device horizontal travel = 140



Z = clamping range

15. Cutting diagram DG 142 XL (Optional)

Pneumatic clamping device horizontal travel = 40



Z = clamping range

01. Double mitre saw DG 142 XL (Optional)
02. Double mitre saw DG 142 XL (Optional)
03. Double mitre saw DG 142 XL (Optional)
04. Double mitre saw DG 142 XL (Optional)
05. Double mitre saw DG 142 XL (Optional)
06. Double mitre saw DG 142 XL (Optional)
07. Double mitre saw DG 142 XL (Optional)

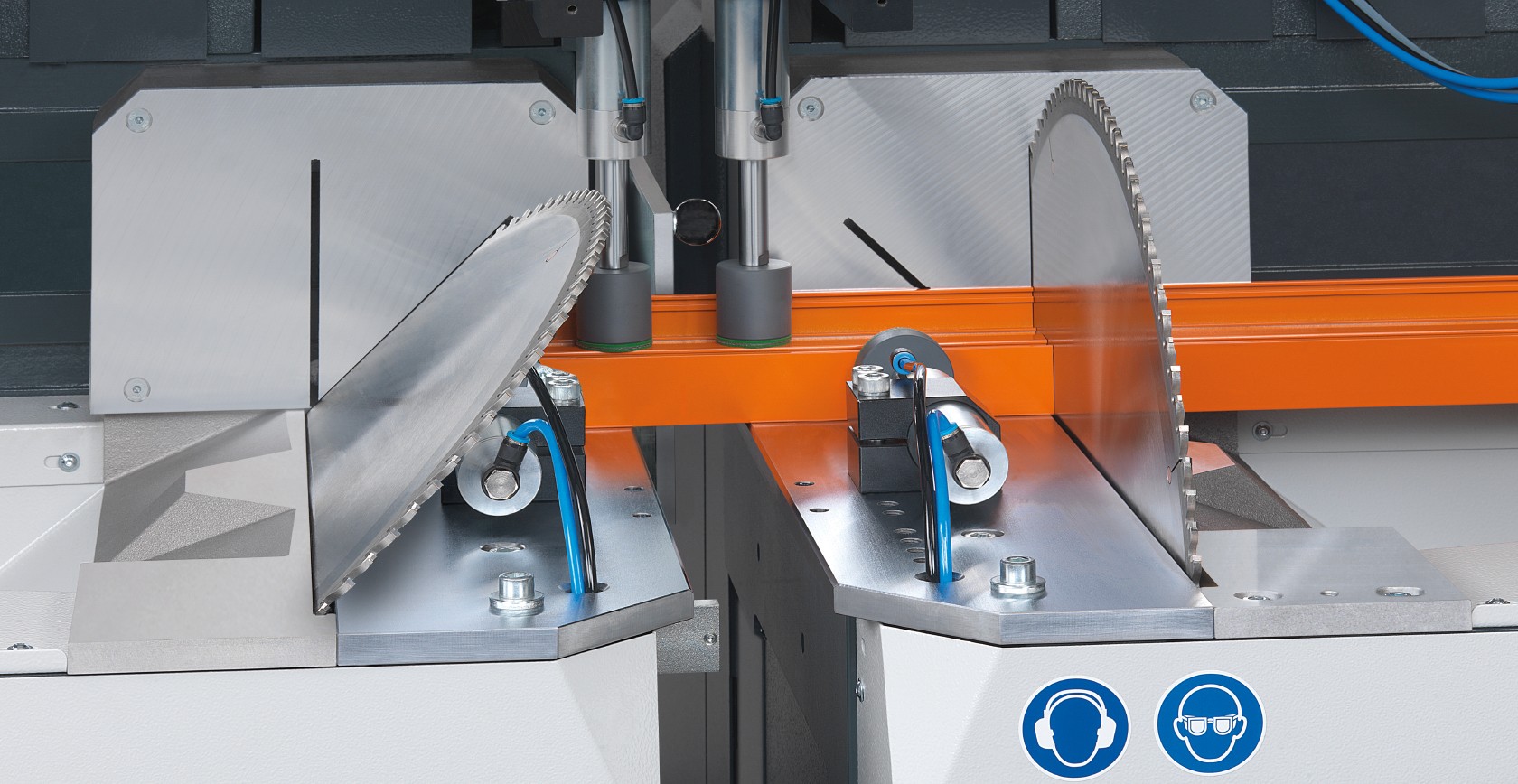

Minimum dimension for 90° cut: 400 mm

08. Double mitre saw DG 142 XL (Optional)

Minimum dimension for 45° cut: 400 mm

09. Double mitre saw DG 142 XL (Optional)

Minimum dimension for 90° cut with short stop on the travelling unit: 213 mm

10. Double mitre saw DG 142 XL (Optional)

Minimum dimension for 45° cut with short stop on the travelling unit: 213 mm

11. Double mitre saw DG 142 XL (Optional)

Minimum dimension for 90° cut with short stop on the stationary unit: 213 mm

12. Double mitre saw DG 142 XL (Optional)

Minimum dimension for 45° cut with short stop on the stationary unit: 213 mm

13. Cutting diagram DG 142 XL (Optional)

Pneumatic clamping device horizontal travel = 80



Z = clamping range

14. Cutting diagram DG 142 XL (Optional)

Pneumatic clamping device horizontal travel = 140



Z = clamping range

15. Cutting diagram DG 142 XL (Optional)

Pneumatic clamping device horizontal travel = 40



Z = clamping range

01. Double mitre saw DG 142 XL (Optional)
02. Double mitre saw DG 142 XL (Optional)
03. Double mitre saw DG 142 XL (Optional)
04. Double mitre saw DG 142 XL (Optional)
05. Double mitre saw DG 142 XL (Optional)
06. Double mitre saw DG 142 XL (Optional)
07. Double mitre saw DG 142 XL (Optional)

Minimum dimension for 90° cut: 400 mm

08. Double mitre saw DG 142 XL (Optional)

Minimum dimension for 45° cut: 400 mm

DG 142 XL 01. Double mitre saw DG 142 XL elumatec
DG 142 XL 02. Double mitre saw DG 142 XL elumatec
DG 142 XL 03. Double mitre saw DG 142 XL elumatec
DG 142 XL 04. Double mitre saw DG 142 XL elumatec
DG 142 XL 05. Double mitre saw DG 142 XL elumatec
DG 142 XL 06. Double mitre saw DG 142 XL elumatec
DG 142 XL 07. Double mitre saw DG 142 XL elumatec
DG 142 XL 08. Double mitre saw DG 142 XL elumatec
DG 142 XL 09. Double mitre saw DG 142 XL elumatec
DG 142 XL 10. Double mitre saw DG 142 XL elumatec
DG 142 XL 11. Double mitre saw DG 142 XL elumatec
DG 142 XL 12. Double mitre saw DG 142 XL elumatec
DG 142 XL 13. Cutting diagram DG 142 XL elumatec
DG 142 XL 14. Cutting diagram DG 142 XL elumatec
DG 142 XL 15. Cutting diagram DG 142 XL elumatec
