RMZ
4000

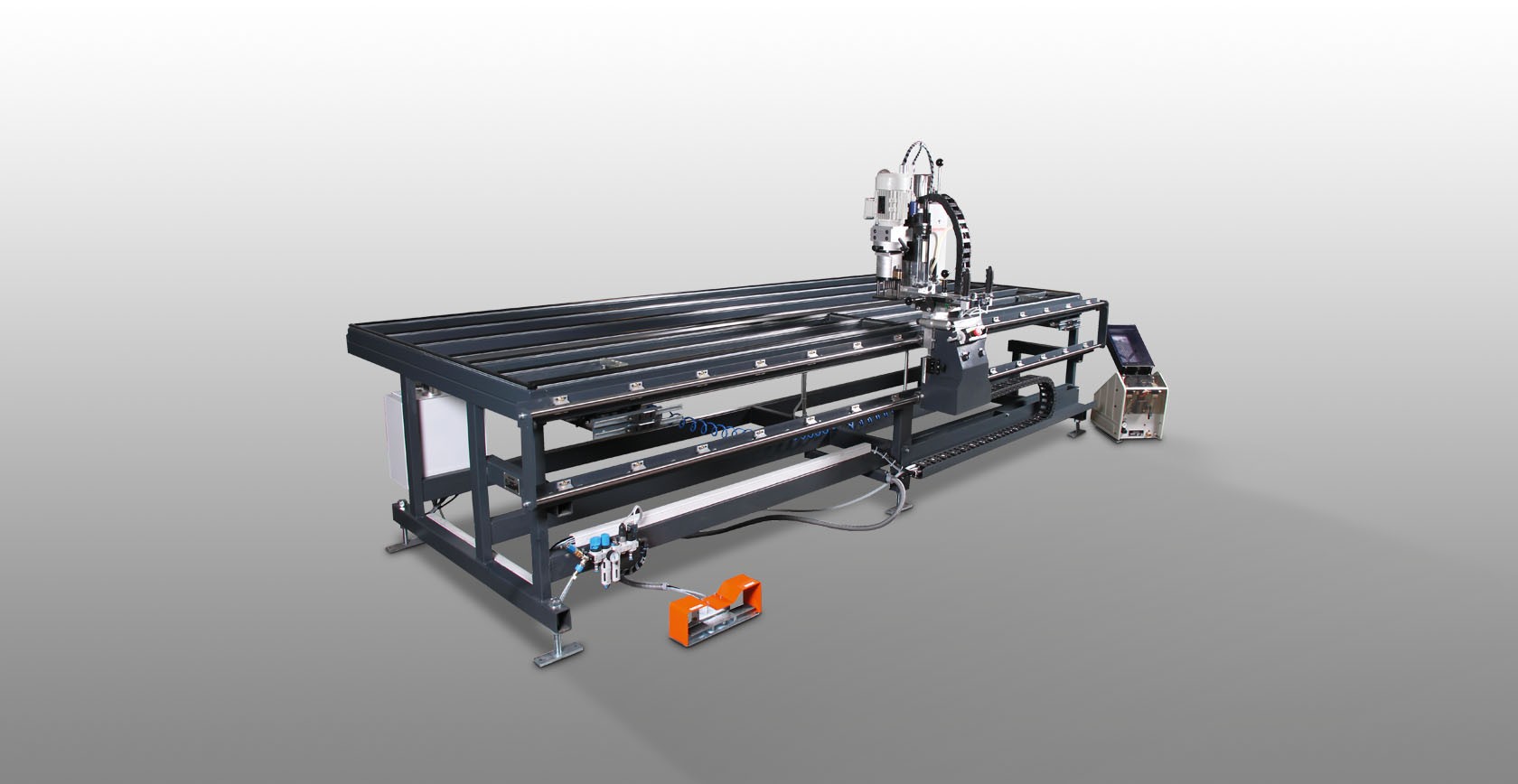

Frame assembly centre
home
/
from a to z
/
R
The innovative and highly efficient hardware drilling and screw driving station for frame hinges and pivots
Work quickly and accurately - this machine enables an amazing productivity boost in window manufacturing
Thanks to the easy handling and ergonomically designed work sequence, drilling, assembly, and screwing of the tilt/turn hinges can be performed by a single operator.
Due to the movable stop system, the time-consuming drilling of locating and screw holes with a template can be omitted
The unit can be rotated by 90° for machining multi-sash frames
The adjusting device can be positioned in the Y-direction using grid dimensions for drilling pivot bolts into multi-sash frames.
The hinges and pivots are screwed to the closed frame by the vertical screwing feed unit which is manually moveable on moving carrier plates.
The unit is equipped with an automatic screw infeed, a screwdriver turbine for screwing self drilling screws, and a pneumatic screwing depth stop
Pneumatic frame clamping and positioning device can be moved beyond table centre
Frame rebate dimensions from 360 to 3,400 mm
Two pneumatically lowerable rebate stops with revolver for up to four different frame depths
Laser unit shows the screw driving position
Request quote
picture_as_pdf
generate pdf
info_outline
ask information
Frame assembly centre RMZ 4000
Supporting surfaces
Supporting surfaces with plastic slide bars
Rebate stops

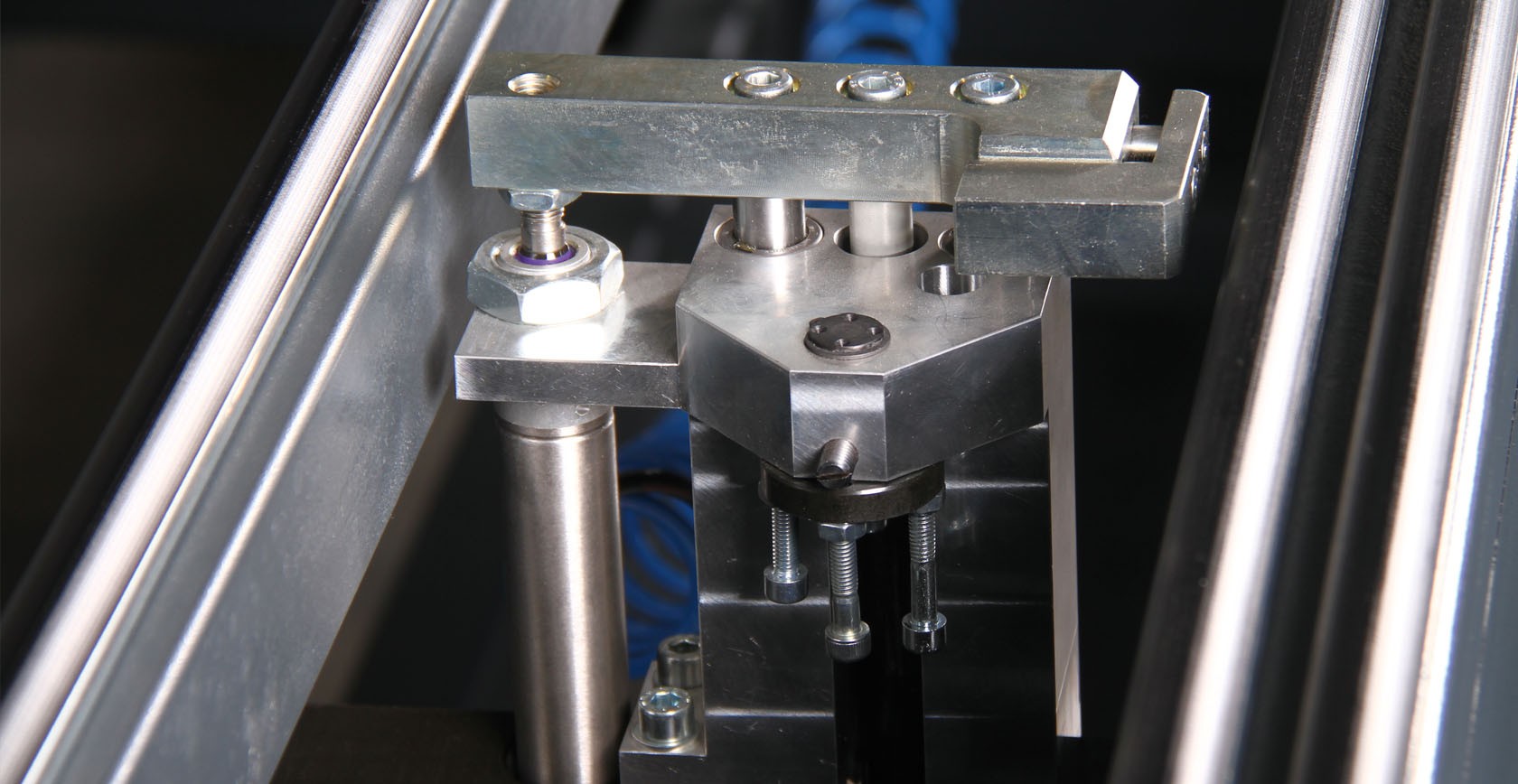

Two pneumatically lowerable rebate stops with revolver for up to four different frame depths
Screwing unit

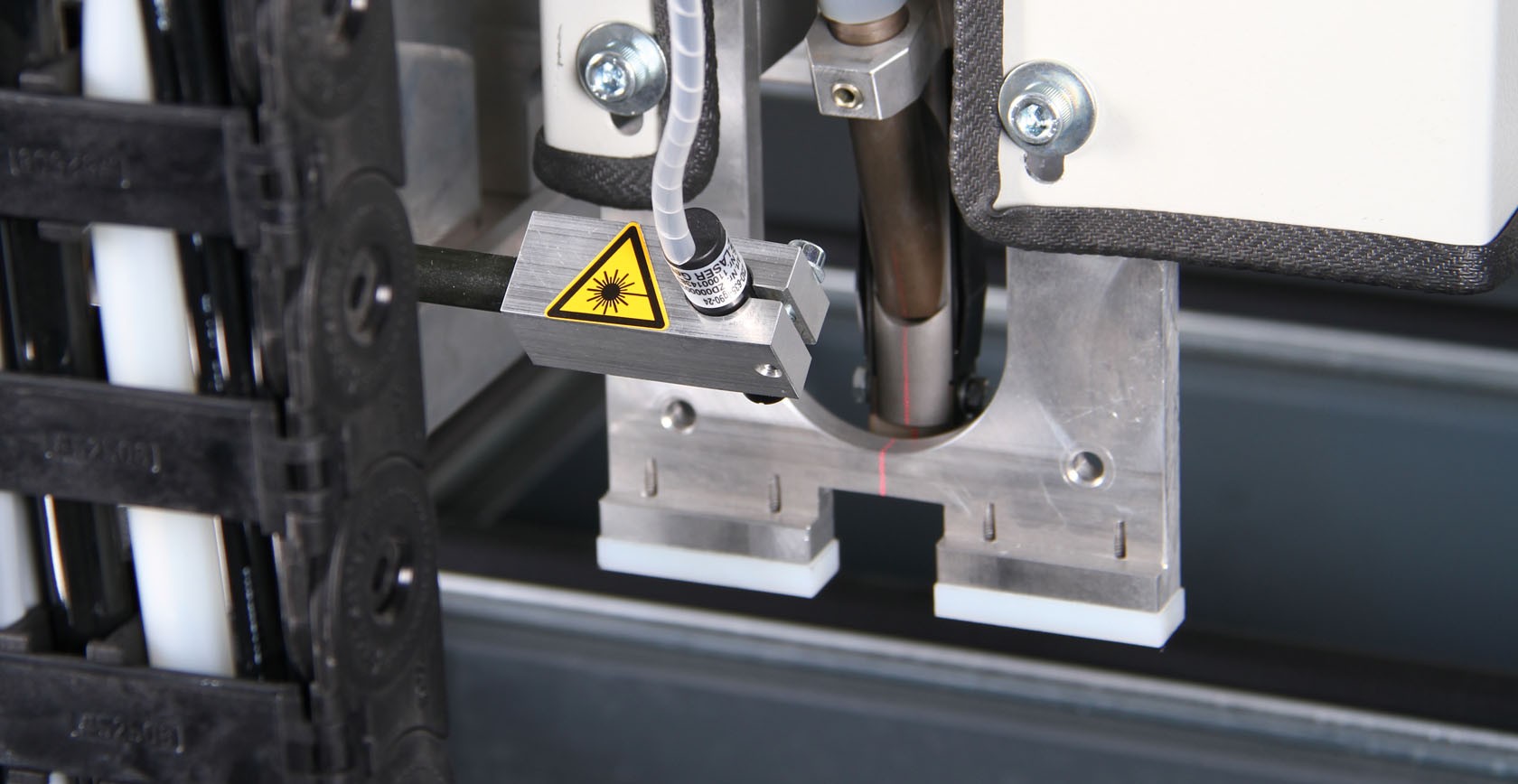

The unit is equipped with an automatic screw feed, a screwdriver turbine for screwing self drilling screws, and a pneumatic screwing depth stop. Laser unit shows the screw driving position
Screw feed unit
Screw feed unit with automatic screw feeding
Stop system
Due to the movable stop system, the time-consuming drilling of locating and screw holes with a template can be omitted
Boring head (Optional)
Can be equipped with either 2- or 6-spindle boring head
Technical data
arrow_drop_down
Table length 4,040 mm
Table width 1,700 mm
Total length 4,220 mm
Total width 2,010 mm
Height 1,720 mm
Table height adjustable 950 - 1,050 mm
Frame dimension min. 560 x 200 mm
Frame dimension max. 3,800 x 1,700 mm
Min. profile height 54 mm
Max. profile height 110 mm
Weight 650 kg
Compressed air supply 7 bar
Air consumption:
Screw driving unit approx. 250 l/min.
Clamping unit approx. 40 l/min.
Screw dimensions:
Head diameters 5.0 - 9.0 mm
Shank diameters 3.5 - 4.5 mm
Length approx. 10.0 - 35.0 mm
Power supply 230/400 V, 3~, 50 Hz
Motor power of 1.1 kW at 2,825 rpm
