VR
2000
Vertical roller conveyor
home
/
from a to z
/
V
Vertical roller conveyor for transportation and storage of window elements
Stable steel construction
Expandable using modular system design
Vertical roller conveyor for smooth transportation and storage of window elements
Easy handling of window elements
Every roller conveyor unit is 2,000 mm long
Plastic slide bars top and bottom
Three mini-roller conveyors with rubber rollers, diameter 50 mm
Basic unit without end rack
Options
End rack
End stop
Lead-in roller
Profile protectors for support rollers (Alum.)
Request quote
picture_as_pdf
generate pdf
info_outline
ask information

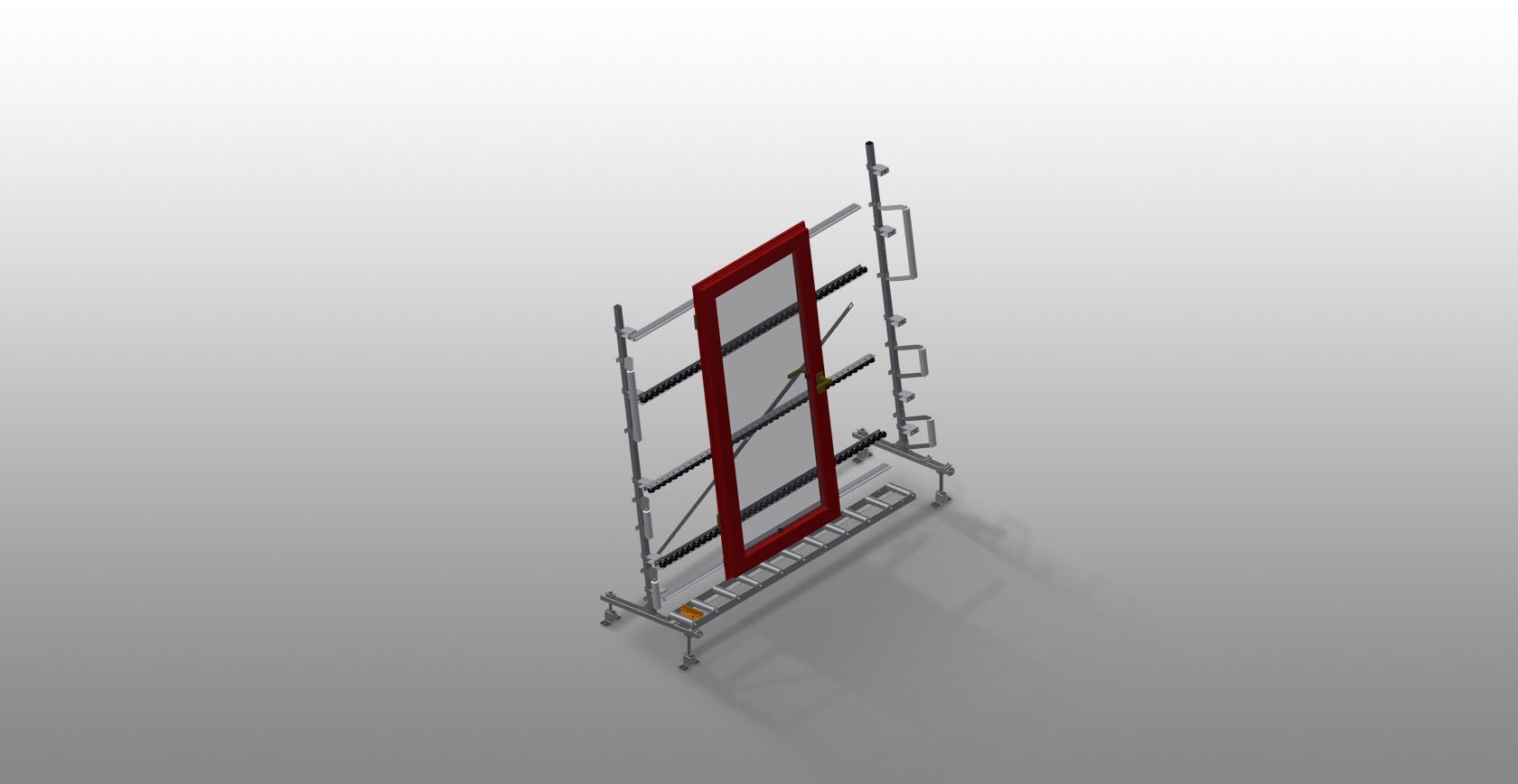

Vertical roller conveyor VR 2000

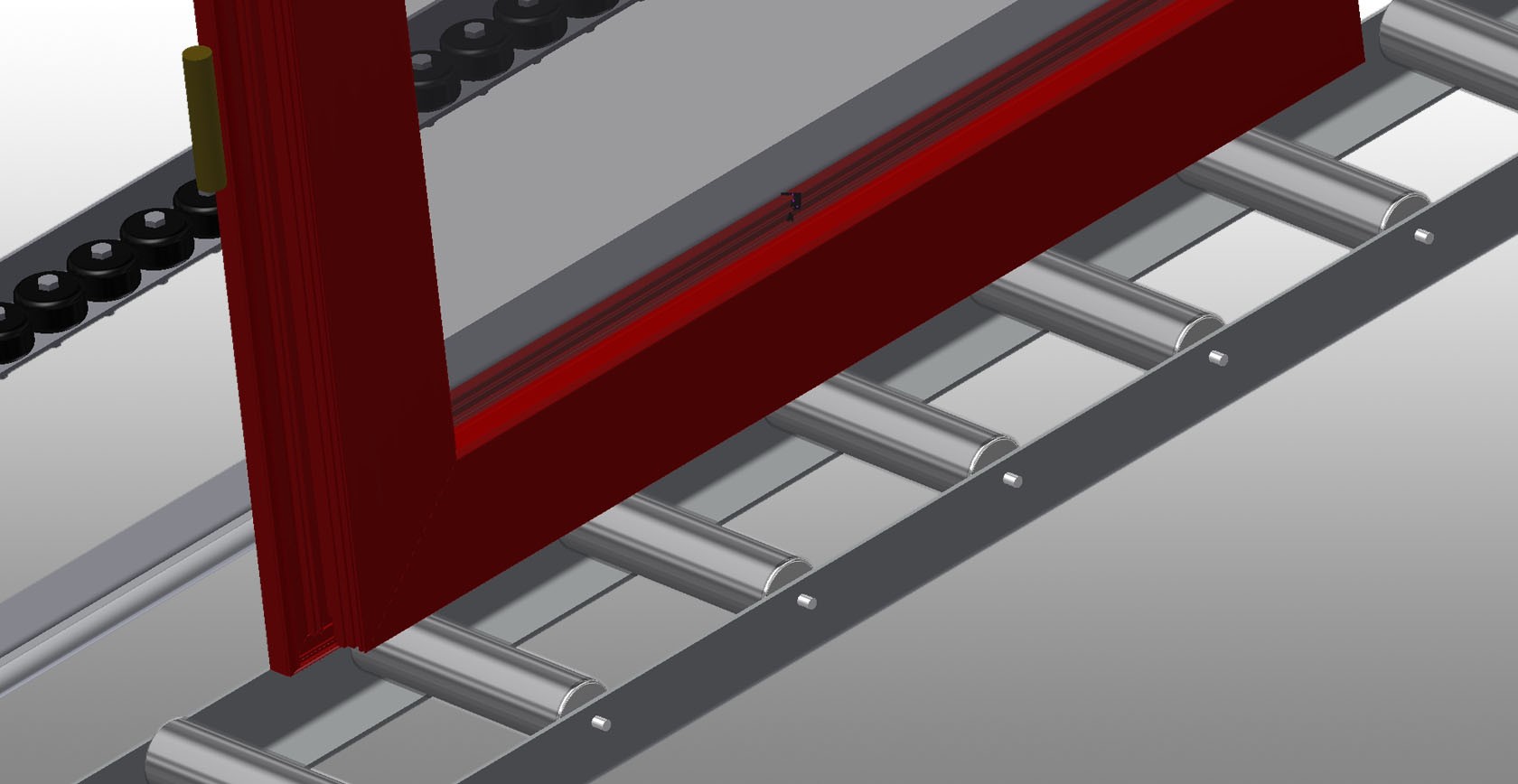

Support rollers
Rollers throughout, support roller width 200 mm. Roller conveyor units, 2,000, 3,000 and 4,000 mm long
Mini-roller conveyor
Three mini-roller conveyors with rubber rollers, diameter 50 mm
Back support
Rear back support with plastic slide bars, top and bottom
Roller conveyor height adjustment
Lower roller conveyor height can be adjusted by means of adjustable feet
Mini-roller conveyor height adjustment
Mini-roller conveyor height is adjustable
End rack (Optional)
End rack is mandatory at end of line

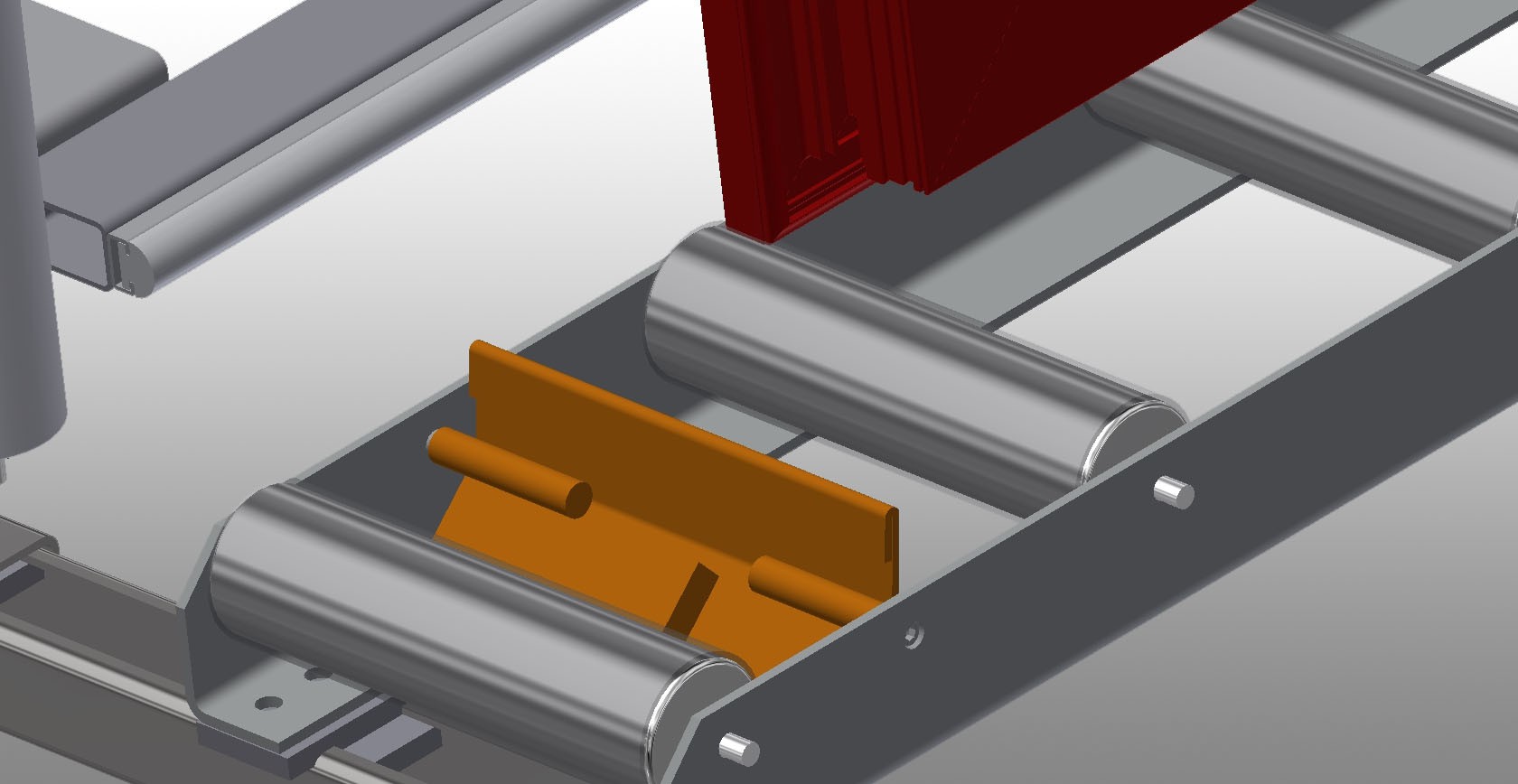

End stop (Optional)
End stop Rb = 200 mm for VR
Lead-in rollers (Optional)
Protective rollers for beginning or end of roller conveyor L = 500 mm (pair) L = 250 mm (pair)
Profile protectors (Optional)
Profile protectors for support rollers 200 mm (Alum./11 x and Alum./16 x). Support rollers covered with protective tubing
Additional mini-roller conveyors (Optional)
Additional mini-roller conveyors with rubber rollers top/bottom
Technical data
arrow_drop_down
Length 2,000 mm
Width 900 mm
Height 2,400 mm
Support roller width 200 mm
Unit height 2,100 mm
Load 200 kg
Weight 80 kg
