KTH3000

Tilting table with height adjustment

home / from a to z / K

Assembly table for vertical and horizontal assembly

Stable steel construction
Important when switching from vertical to horizontal transportation and vice versa
Ideal for vertical and horizontal assembly
Infinitely variable intermediate positions for ergonomic working
Pneumatic tilting
Pneumatic vertical height adjustment
Table supporting surface with plastic slide bars
Roller support can be lowered pneumatically
Two lateral pneumatic clamps, (lowerable)
4-fold compressed air supply

Options

Also available with brush strips on request
Also available with felt strips on request (for wooden profiles)
Also available with rubber strips on request (for aluminium profiles)
Pull-out table supporting surface at top for KT/KTH 3000
Profile protectors for support rollers
Additional clamps for KT/KTH 3000
Mobility unit for KT/KTH/MS
Rail, 2.0 m

Request quote

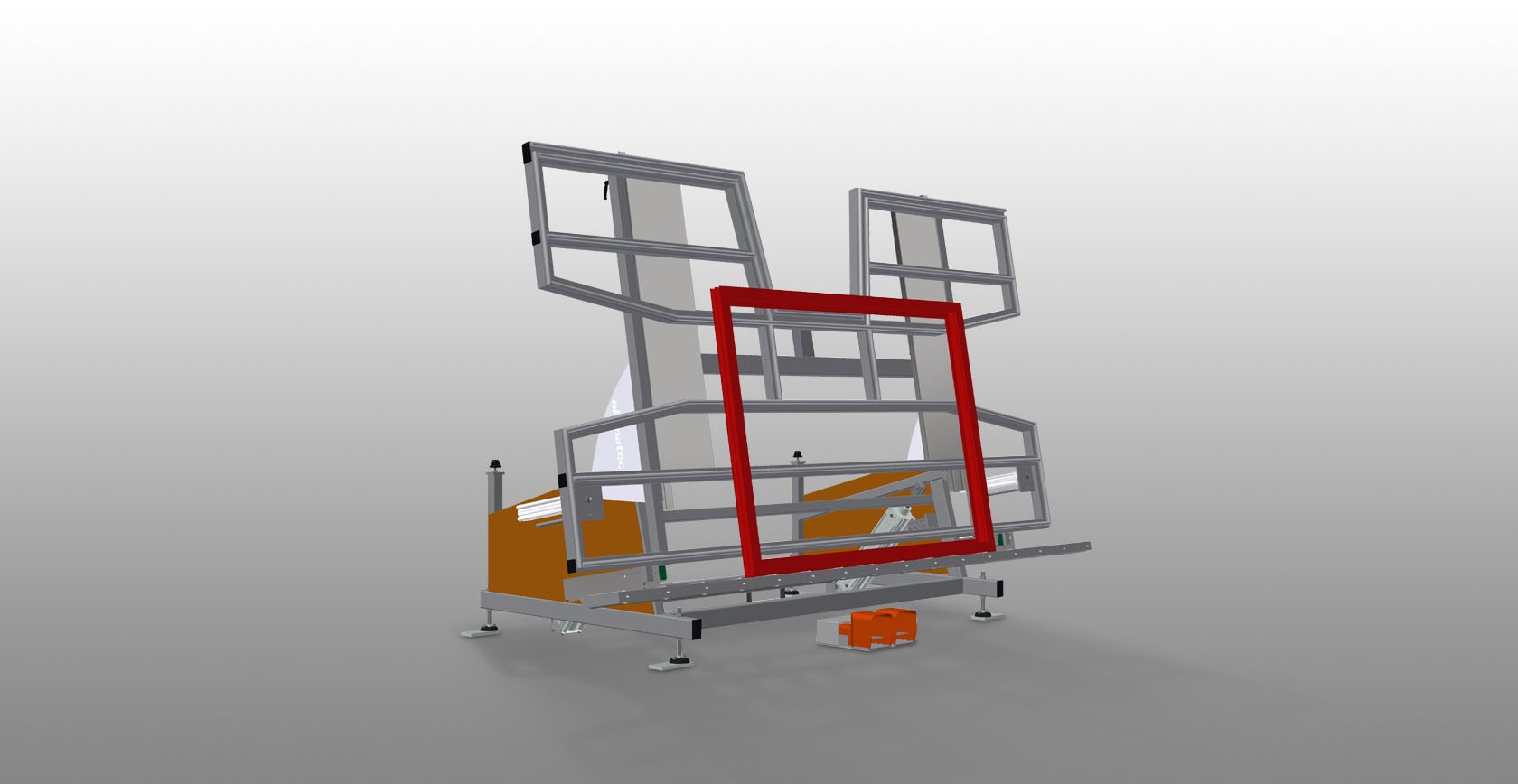

Tilting table with height adjustment KTH 3000 (Optional)

Supporting surfaces (Optional)

Supporting surfaces with plastic slide bars

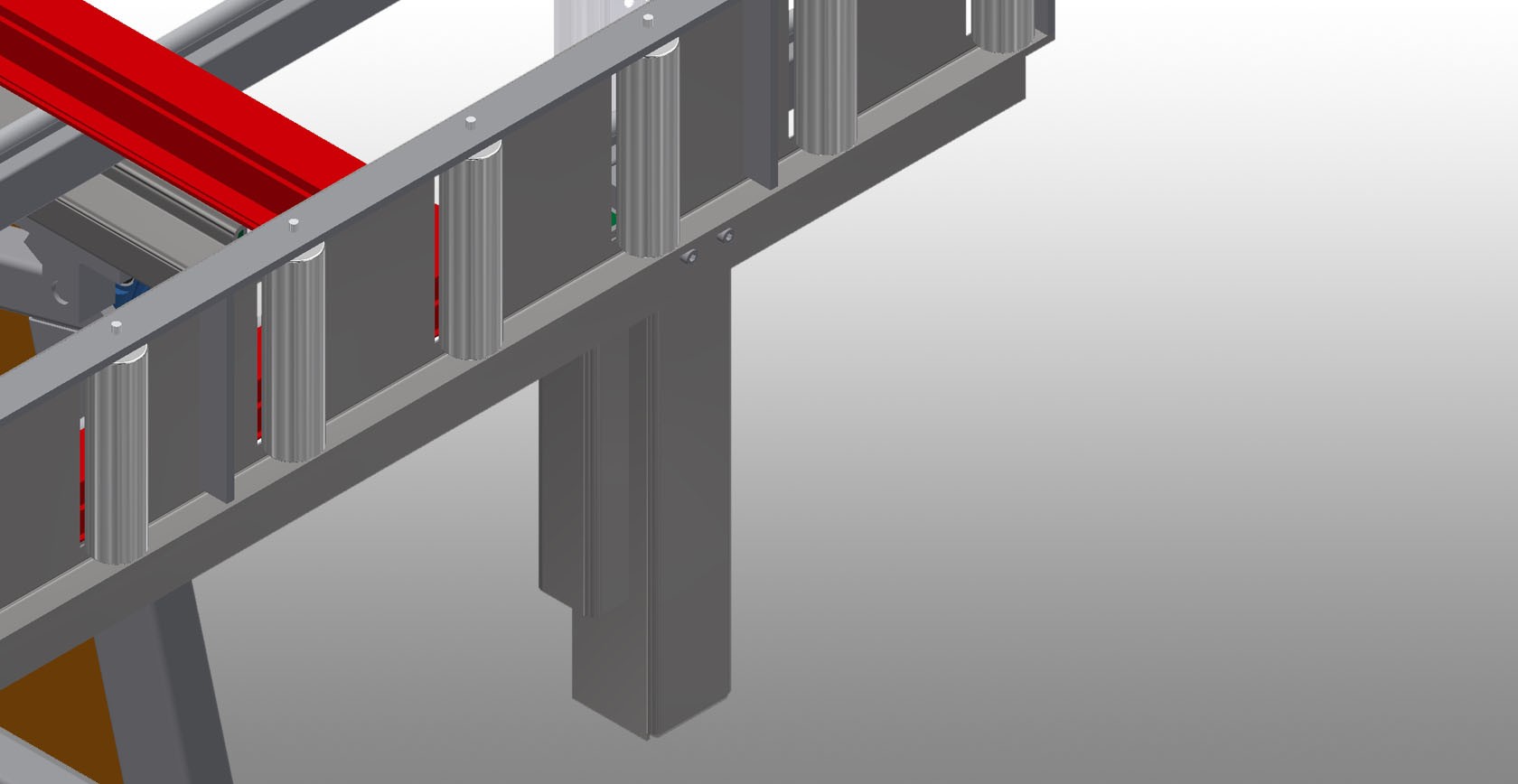

Roller support (Optional)

Roller conveyor can be lowered pneumatically to allow unhindered working in horizontal position; in vertical position, trouble-free onward transport is possible

Clamps (Optional)

Two clamps at the side for fixing the window element in place. Laterally adjustable with hand lever valve. Max. profile clamping height 150 mm

Foot switch (Optional)

Control via foot valve, Pneumatic horizontal/vertical tilting; height adjustable pneumatically by 500 mm in the vertical position

4-fold compressed air connection (Optional)

4-fold connection for compressed-air tools

Brush strip (Optional)

Supporting surfaces with brush strip

Felt strip (Optional)

Supporting surfaces with felt profile strip

Rubber strips (Optional)

Supporting surfaces with rubber-knob profile

Auxiliary clamps (Optional)

Auxiliary clamps for KTH 3000 and KTH 4000. Auxiliary clamps provide extra security when working

Profile protectors for support rollers (Optional)

Profile protectors for support rollers 200 mm (Alum./16 x and Alum./21 x). Roller conveyor with protective tubing over the rollers to protect the window element during infeed and outfeed

Mobility unit (Optional)

Mobility unit for KT/KTH/MS/VE. Mobility unit with flanged rollers and fixing brake

Rails (Optional)

Rails, 2.0 m, left and right

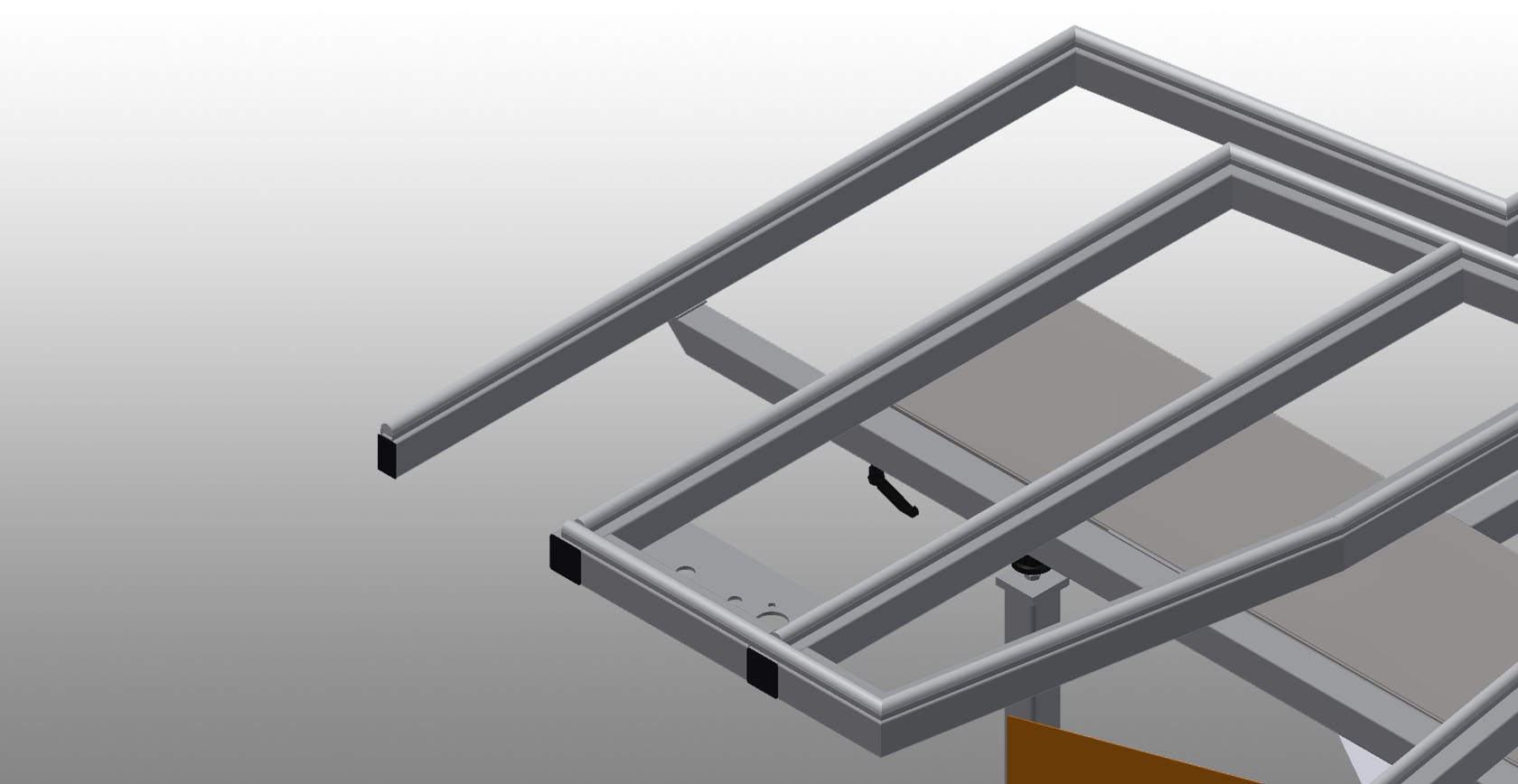

Pull-out profile support (Optional)

Pull-out table support at top for KTH 3000 and KTH 4000. The table support can be pulled out 500 mm at the top for high frames

Technical data
