KT
4000
Tilting table
home
/
from a to z
/
K
Assembly table for vertical and horizontal assembly
Stable steel construction
Important when switching from vertical to horizontal transportation and vice versa
Ideal for vertical and horizontal assembly
Pneumatic tilting
Table supporting surface with plastic slide bars
Roller support can be lowered pneumatically
4-fold compressed air supply
Options
Also available with brush strips on request
Also available with felt strips on request (for wooden profiles)
Also available with rubber strips on request (for aluminium profiles)
Pull-out table supporting surface at top for KT/KTH 4000
Profile protectors for support rollers
Mobility unit for KT/KTH/MS/VE
Rail, 2.0 m
Request quote
picture_as_pdf
generate pdf
info_outline
ask information

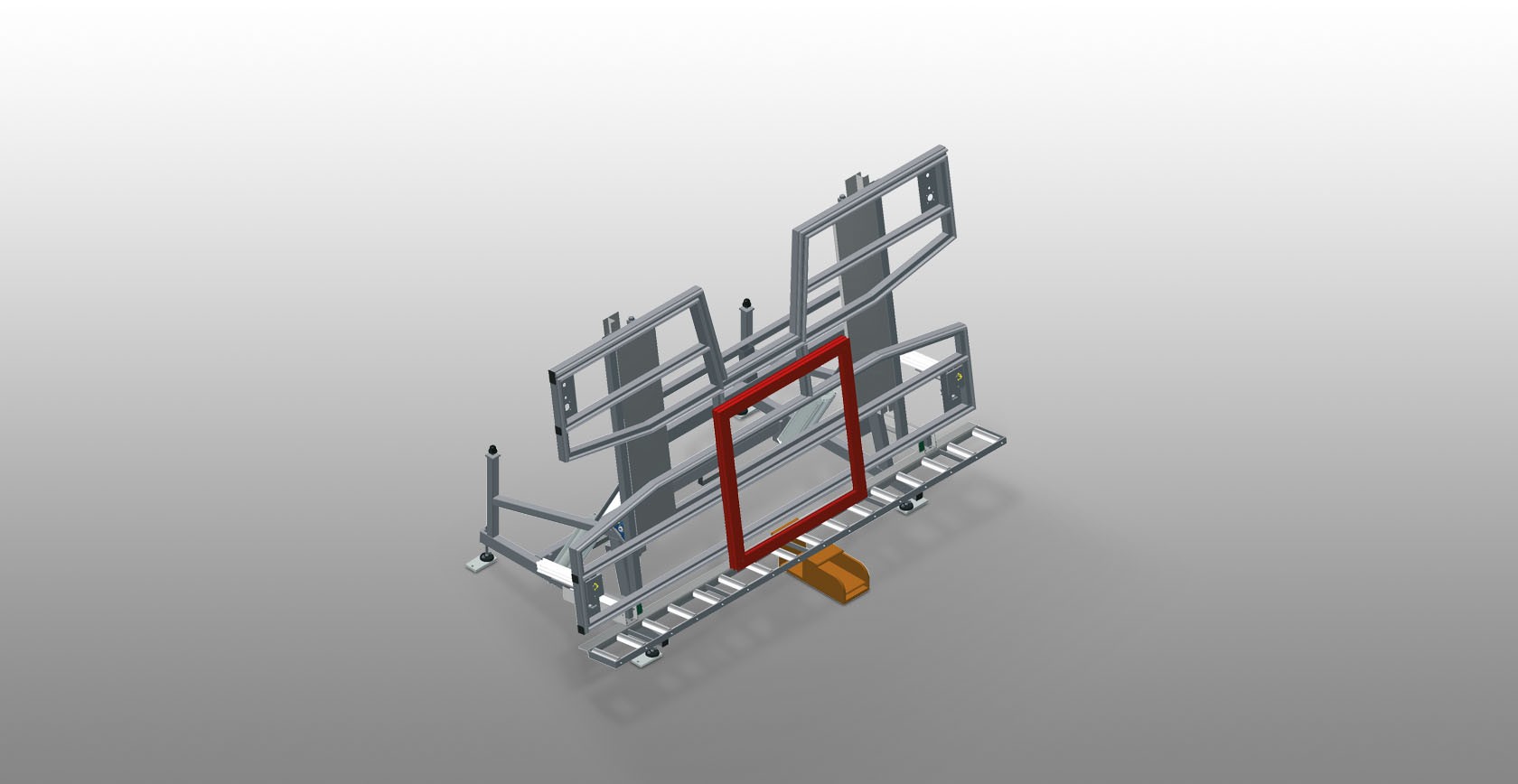

Tilting table KT 4000
Supporting surfaces
Supporting surfaces with plastic slide bars
Roller support
Roller conveyor can be lowered pneumatically to allow unhindered working in horizontal position; in vertical position, trouble-free onward transport is possible
Foot switch
Control via foot valve, Pneumatic horizontal/vertical tilting
4-fold compressed air connection
4-fold compressed air connection for connecting compressed-air tools

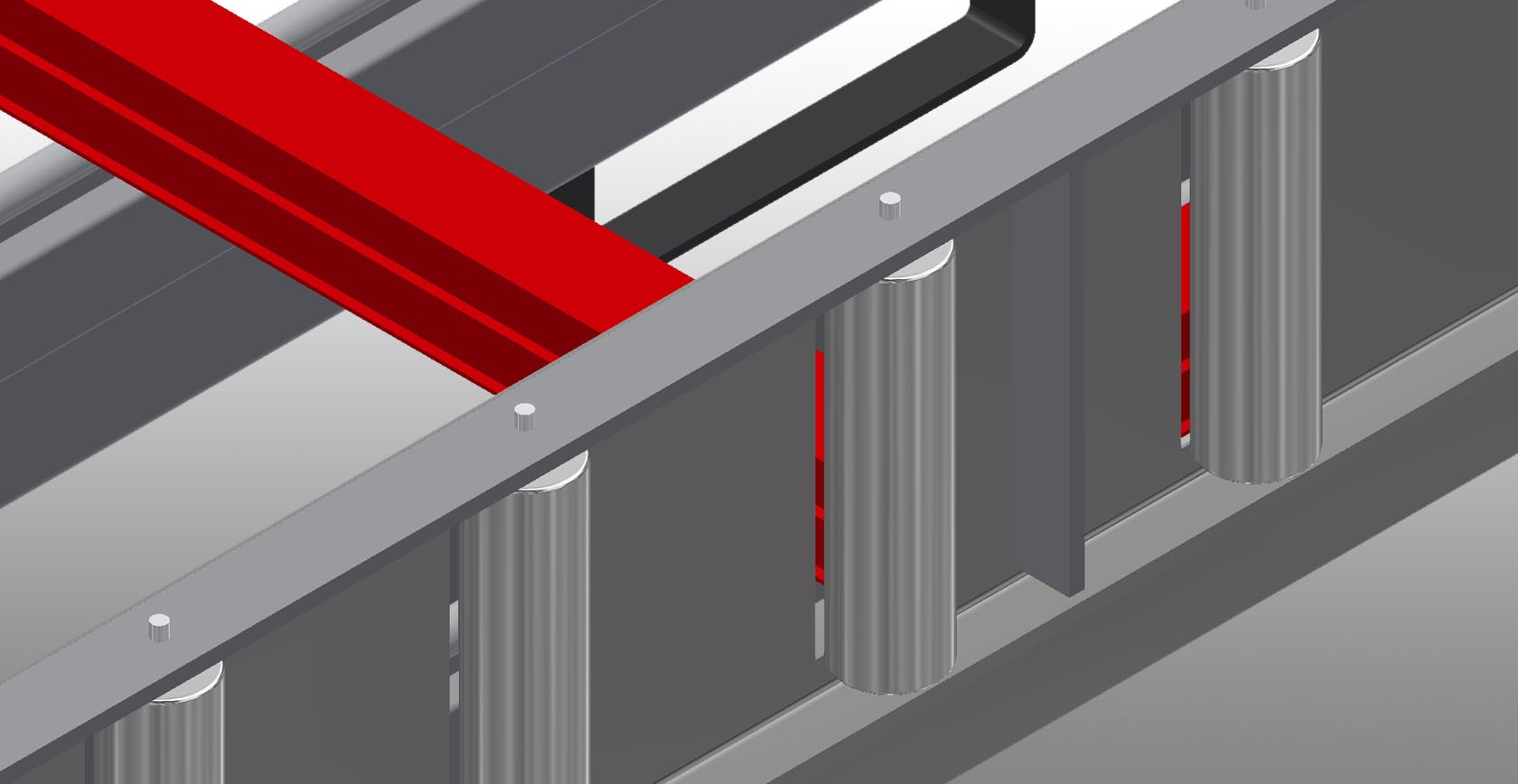

Profile protectors for support rollers (Optional)
Profile protectors for support rollers 200 mm (Alum./16 x and Alum./21 x). Roller conveyor with protective tubing over the rollers to protect the window element during infeed and outfeed
Pull-out profile support (Optional)
Pull-out table support at top for KT/KTH 3000 and KT/KTH 4000.The table support can be pulled out 500 mm at the top for high frames
Brush strip (Optional)
Supporting surfaces with brush strip
Felt strip (Optional)
Supporting surfaces with felt profile strip
Rubber strips (Optional)
Supporting surfaces with rubber-knob profile

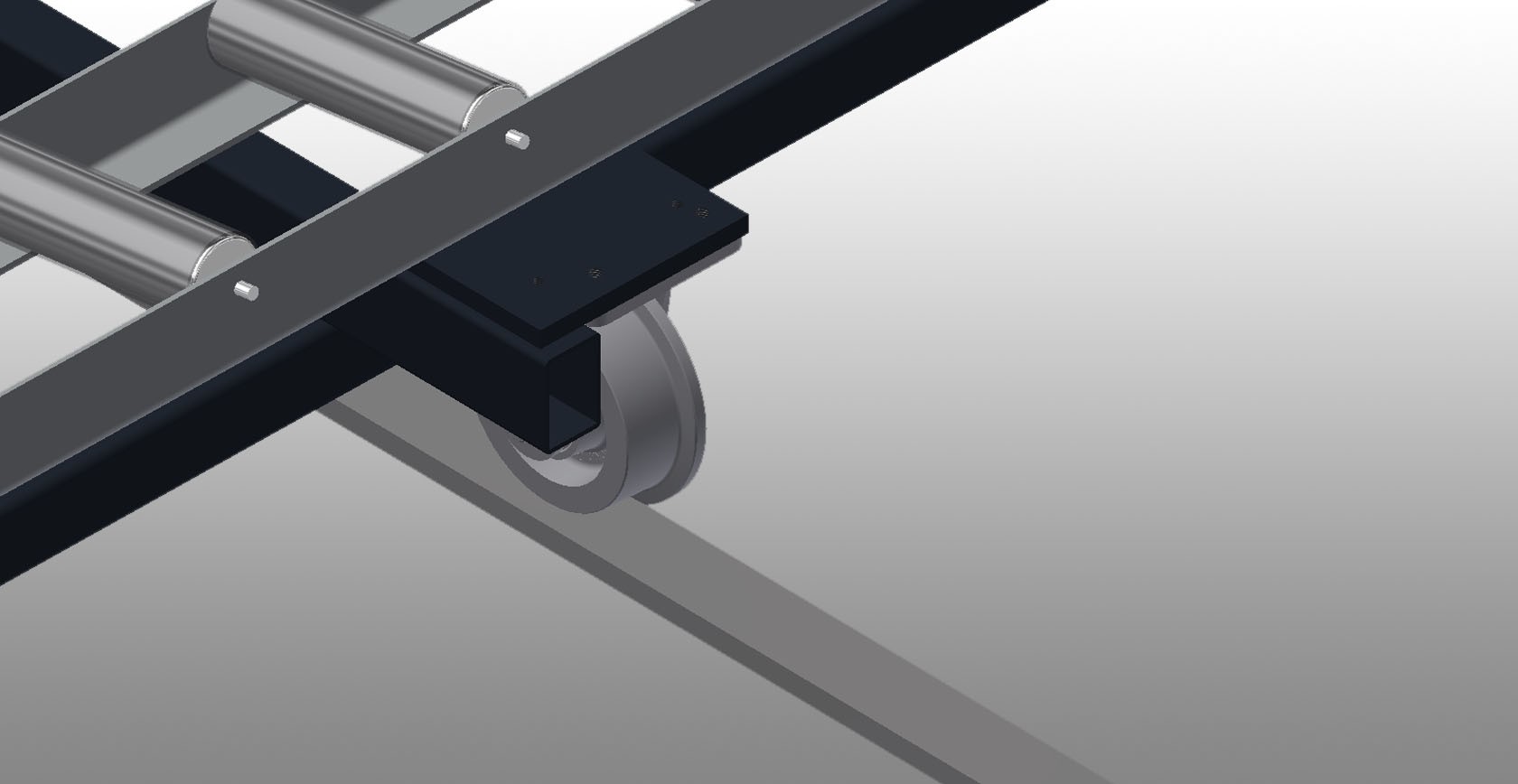

Mobility unit (Optional)
Mobility unit for KT/KTH/MS/VE. Mobility unit with flanged rollers and fixing brake
Rails (Optional)
Rails, 2.0 m, left and right
Technical data
arrow_drop_down
Length 4,000 mm
Width 1,820 mm
Vertical height 1,900 mm
Roller conveyor width 200 mm
Weight 350 kg
Load 200 kg
Compressed air supply 7 bar
Air consumption approx. 35 l/min.
