KTH 4000 Tilting table with height adjustment

Assembly table for vertical and horizontal assembly

  • Stable steel construction
  • Important when switching from vertical to horizontal transportation and vice versa
  • Ideal for vertical and horizontal assembly
  • Infinitely variable intermediate positions for ergonomic working
  • Pneumatic tilting
  • Pneumatic vertical height adjustment
  • Table supporting surface with plastic slide bars
  • Roller support can be lowered pneumatically
  • Two lateral pneumatic clamps, (lowerable)
  • 4-fold compressed air supply



Options

  • Also available with brush strips on request
  • Also available with felt strips on request (for wooden profiles)
  • Also available with rubber strips on request (for aluminium profiles)
  • Pull-out table supporting surface at top for KT/KTH 4000
  • Profile protectors for support rollers
  • Additional clamps for KT/KTH 4000
  • Mobility unit for KT/KTH/MS/VE
  • Rail, 2.0 m
  • Length 4,000 mm
  • Width 1,820 mm
  • Vertical height 1,900 mm
  • Pneum. height adjustment 500 mm
  • Roller conveyor width 200 mm
  • Weight 380 kg
  • Load 200 kg
  • Compressed air supply 7 bar
  • Air consumption approx. 35 l/min.

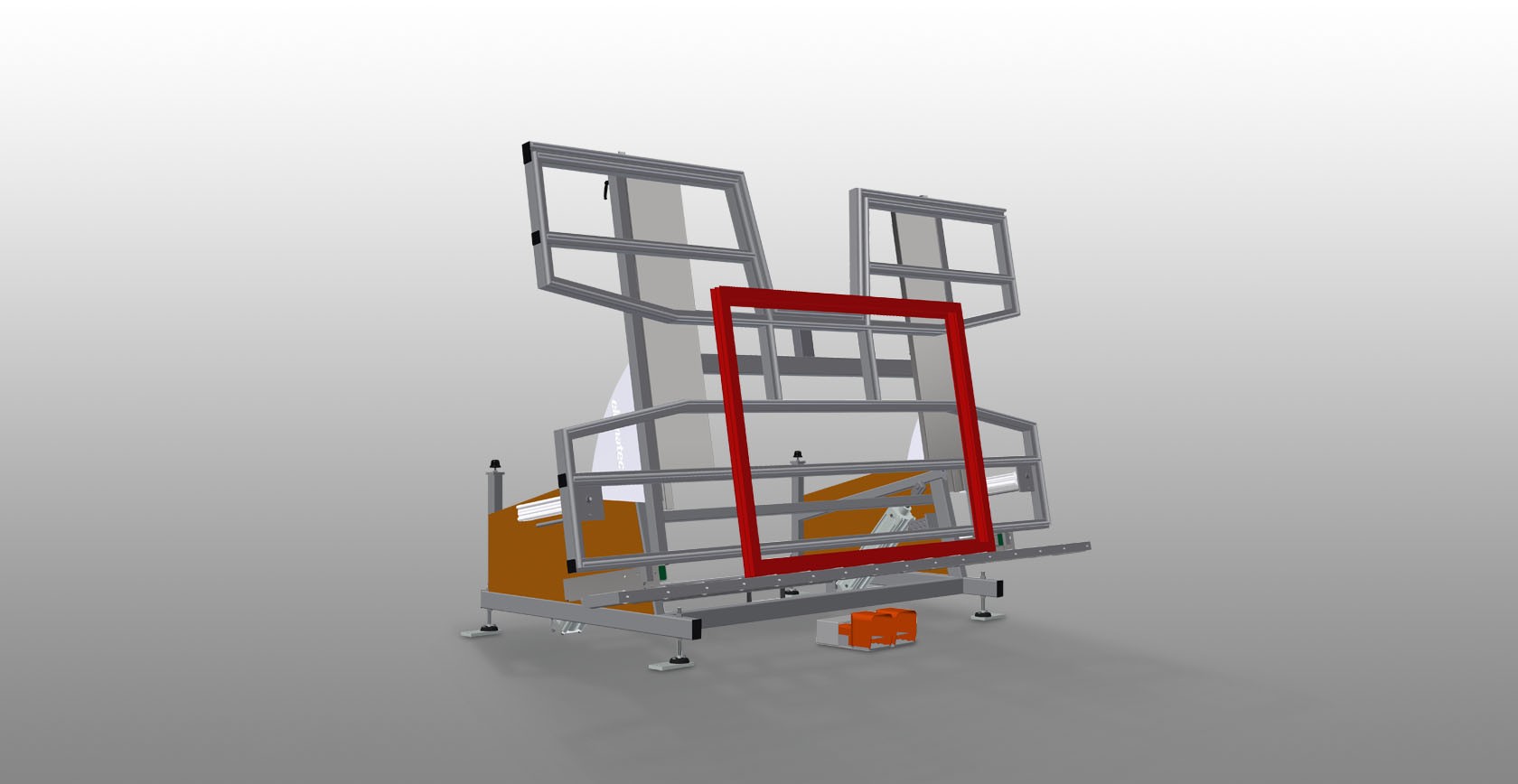

KTH 4000 Tilting table with height adjustment Tilting table with height adjustment KTH 4000 Elumatec
KTH 4000 Tilting table with height adjustment Supporting surfaces Elumatec
KTH 4000 Tilting table with height adjustment Roller support Elumatec
KTH 4000 Tilting table with height adjustment Foot switch Elumatec
KTH 4000 Tilting table with height adjustment 4-fold compressed air connection Elumatec
KTH 4000 Tilting table with height adjustment Brush strip Elumatec
KTH 4000 Tilting table with height adjustment Felt strip Elumatec

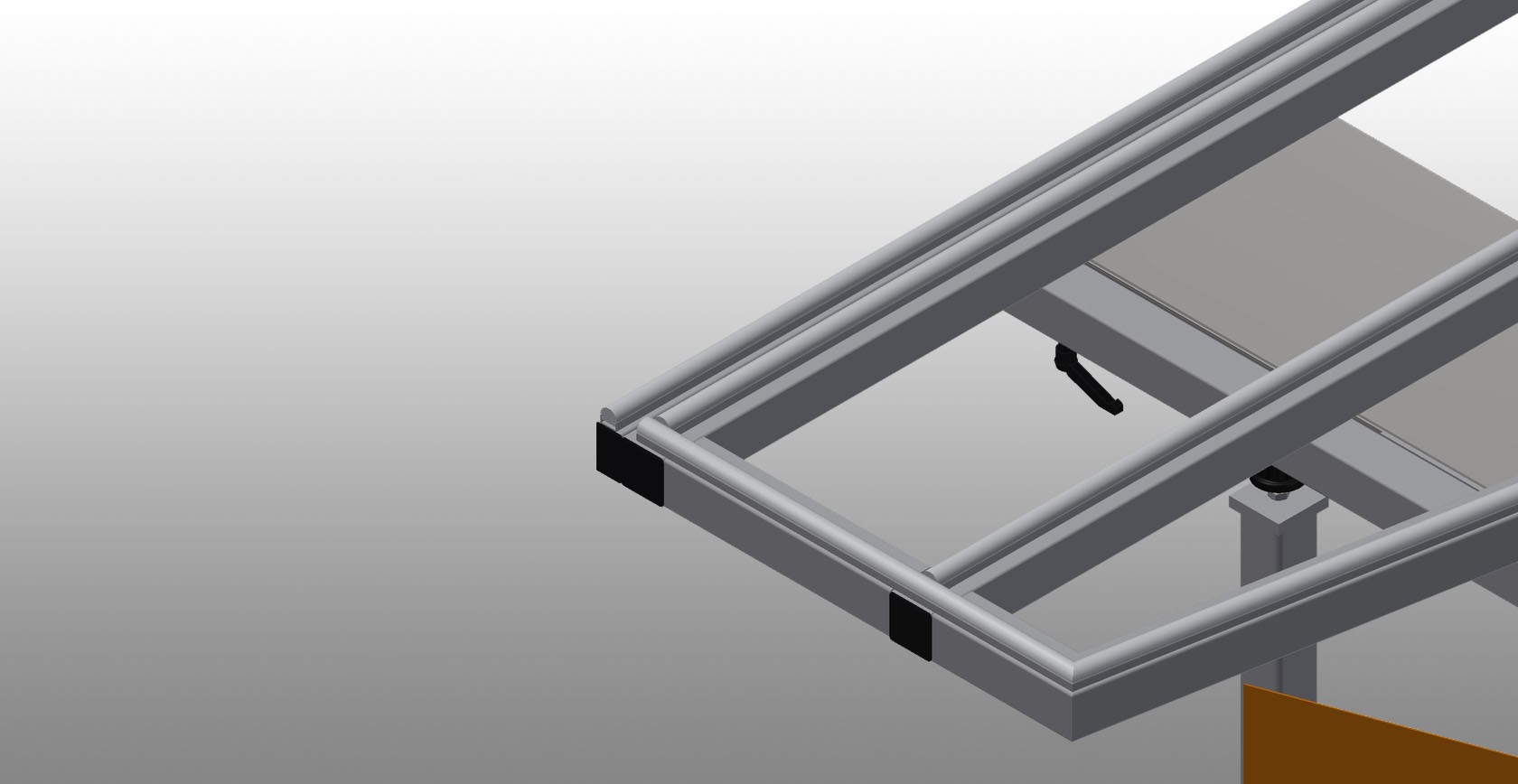

KTH 4000 Tilting table with height adjustment Rubber strips Elumatec
KTH 4000 Tilting table with height adjustment Profile protectors for support rollers Elumatec
KTH 4000 Tilting table with height adjustment Pull-out profile support Elumatec

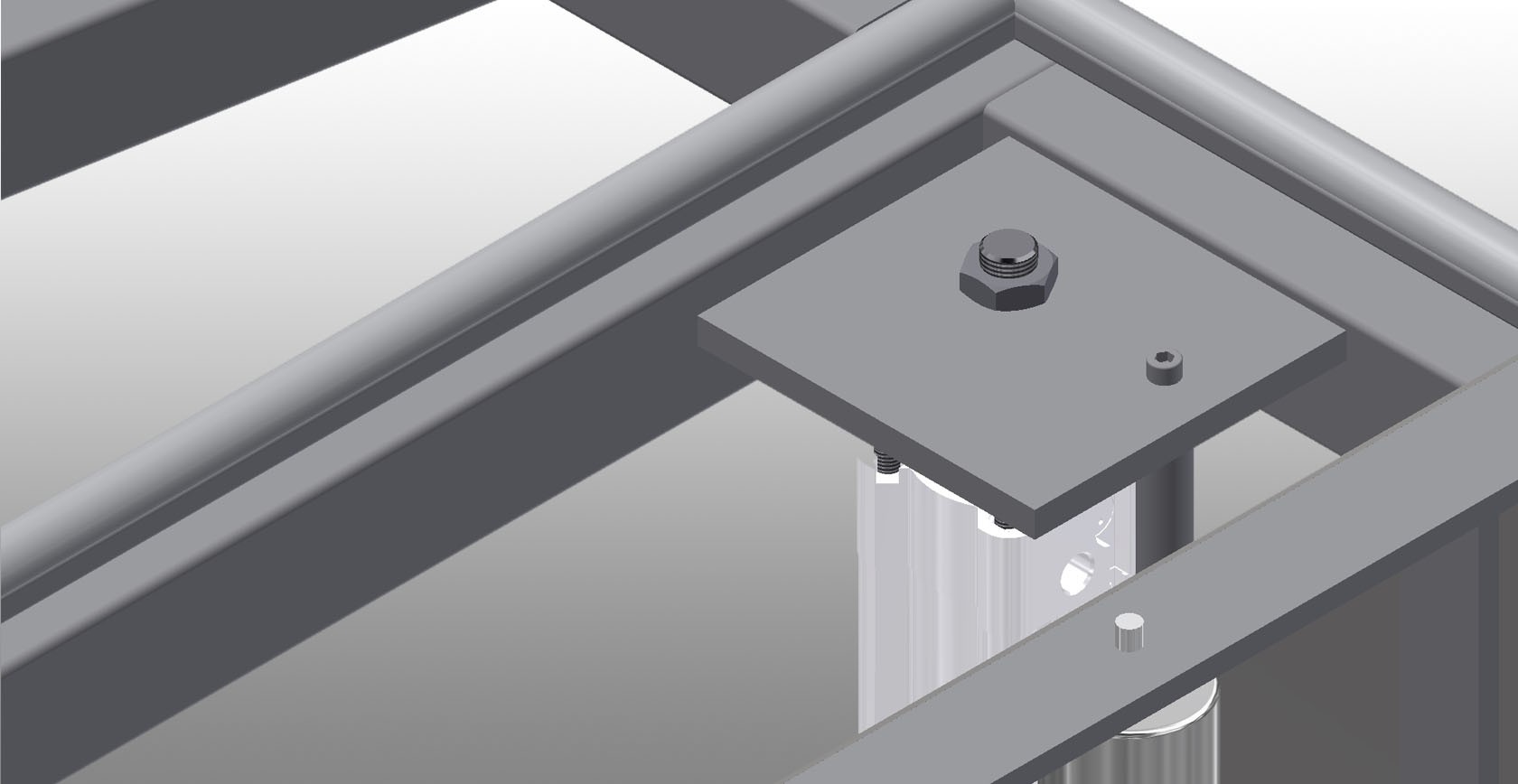

KTH 4000 Tilting table with height adjustment Auxiliary clamps Elumatec
KTH 4000 Tilting table with height adjustment Clamps Elumatec
KTH 4000 Tilting table with height adjustment Mobility unit Elumatec
KTH 4000 Tilting table with height adjustment Rails Elumatec
