FAZ2800/60


Sash assembly centre

Sash assembly centre for installing hardware on PVC window sashes

  • Ergonomic fixing of hardware in a very short time
  • Sash assembly table for measuring and cutting to length of hardware components
  • Optimisation of sash processing by carrying out various work tasks at a single workstation
  • Assembly table can be tilted pneumatically
  • The sash, measurement and centring units can be moved pneumatically
  • Gear cropper with stops for a centred and consistent handle position
  • Two stop blocks for different sash widths
  • Mobile screwing unit with pneumatic height adjustment
  • Screw feed unit
  • Table supporting surface with plastic slide bars

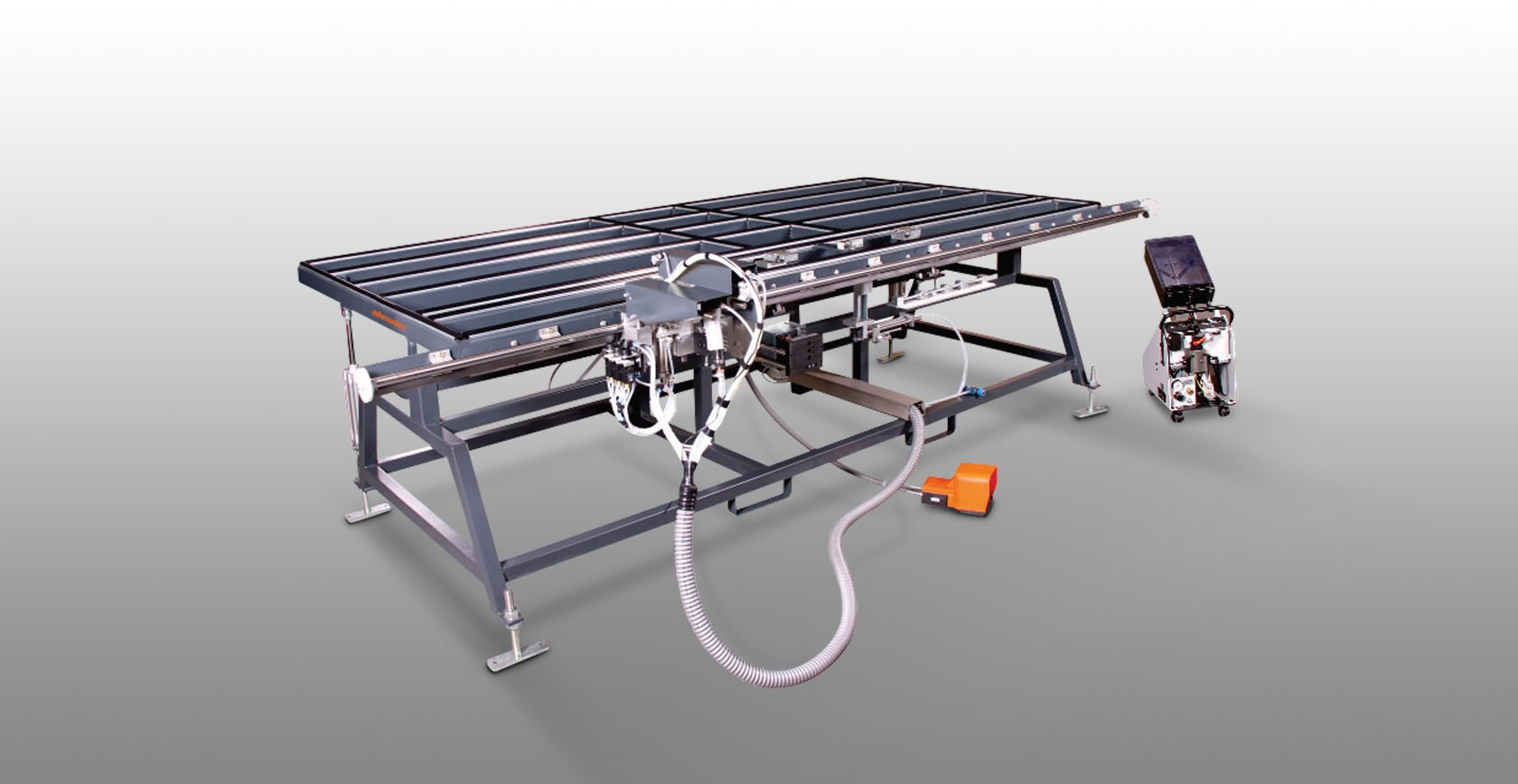

FAZ 2800/60 Sash assembly centre FAZ 2800/60 elumatec
FAZ 2800/60 Supporting surfaces elumatec

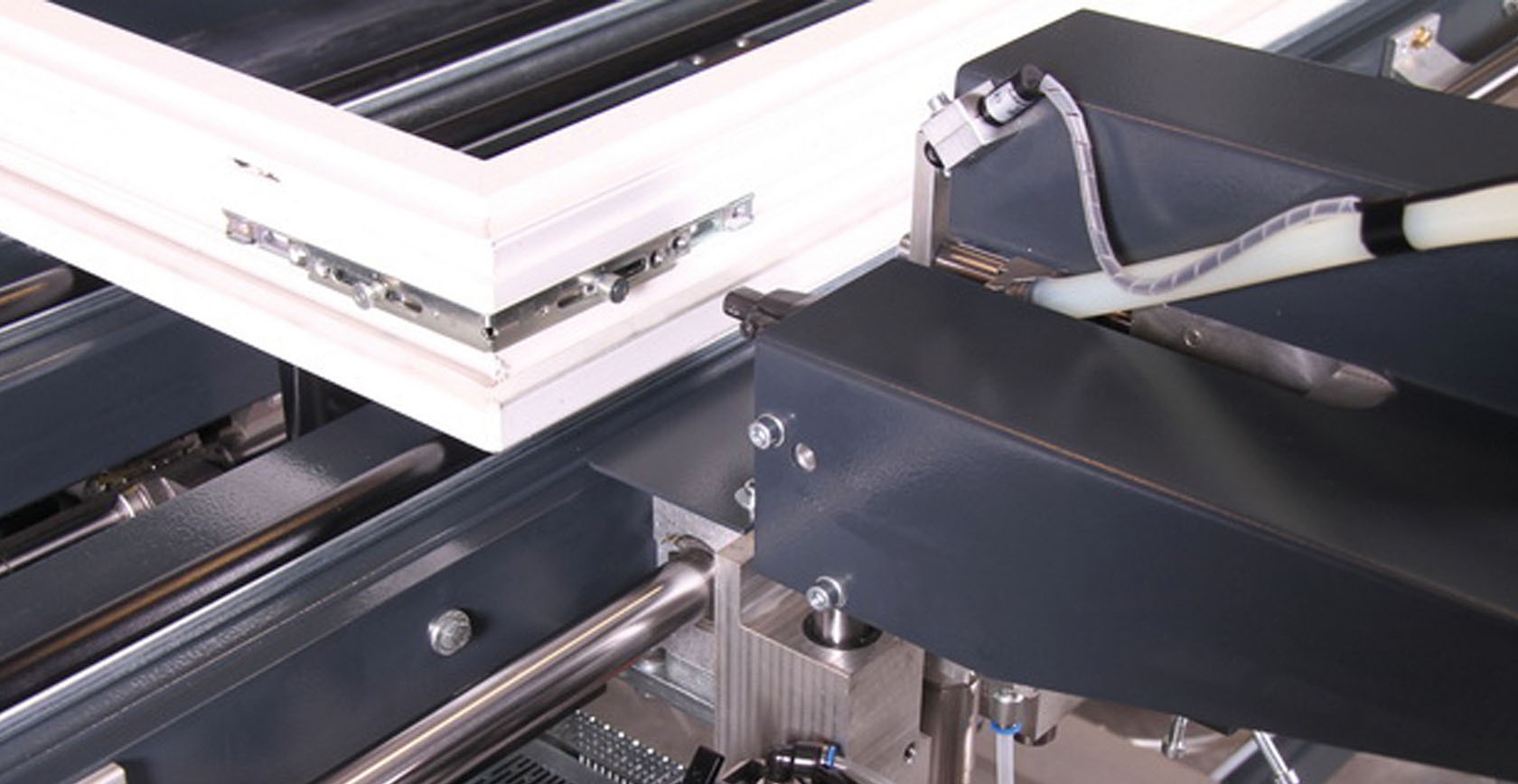

FAZ 2800/60 Screwing unit elumatec
FAZ 2800/60 Gear cropper elumatec
FAZ 2800/60 Screw feed unit elumatec
FAZ 2800/60 Laser unit (option) elumatec
FAZ 2800/60 Hinge drilling unit (option) elumatec
FAZ 2800/60 8-fold height adjustment (option) elumatec
FAZ 2800/60 Stop block (option) elumatec
FAZ 2800/60 Supporting surfaces with brush strip for FAZ 2800 (option) elumatec
FAZ 2800/60 Hardware rack BR 36 (option) elumatec
FAZ 2800/60 Screwing unit with mouthpiece with manual insertion funnel (option) elumatec
