VR3000 DF

Vertical roller conveyor with mobility and rotation mechanism

  • Stable steel construction
  • Vertical roller conveyor for smooth transportation to the next work task as well as for transportation to storage and sorting of the finished windows
  • Easy handling of window elements
  • Every roller conveyor unit is 3,000 mm long
  • Plastic slide bars top and bottom
  • Three mini-roller conveyors with rubber rollers, diameter 50 mm
  • Basic unit with end rack
  • Vertical roller conveyor on rails with flanged rollers, mobile
  • Roller conveyor can be rotated 360°



Options

  • Rail, 2.0 m, left and right
  • End stop for VR
  • Lead-in roller for VR
  • Profile protectors for support rollers (Alum.)

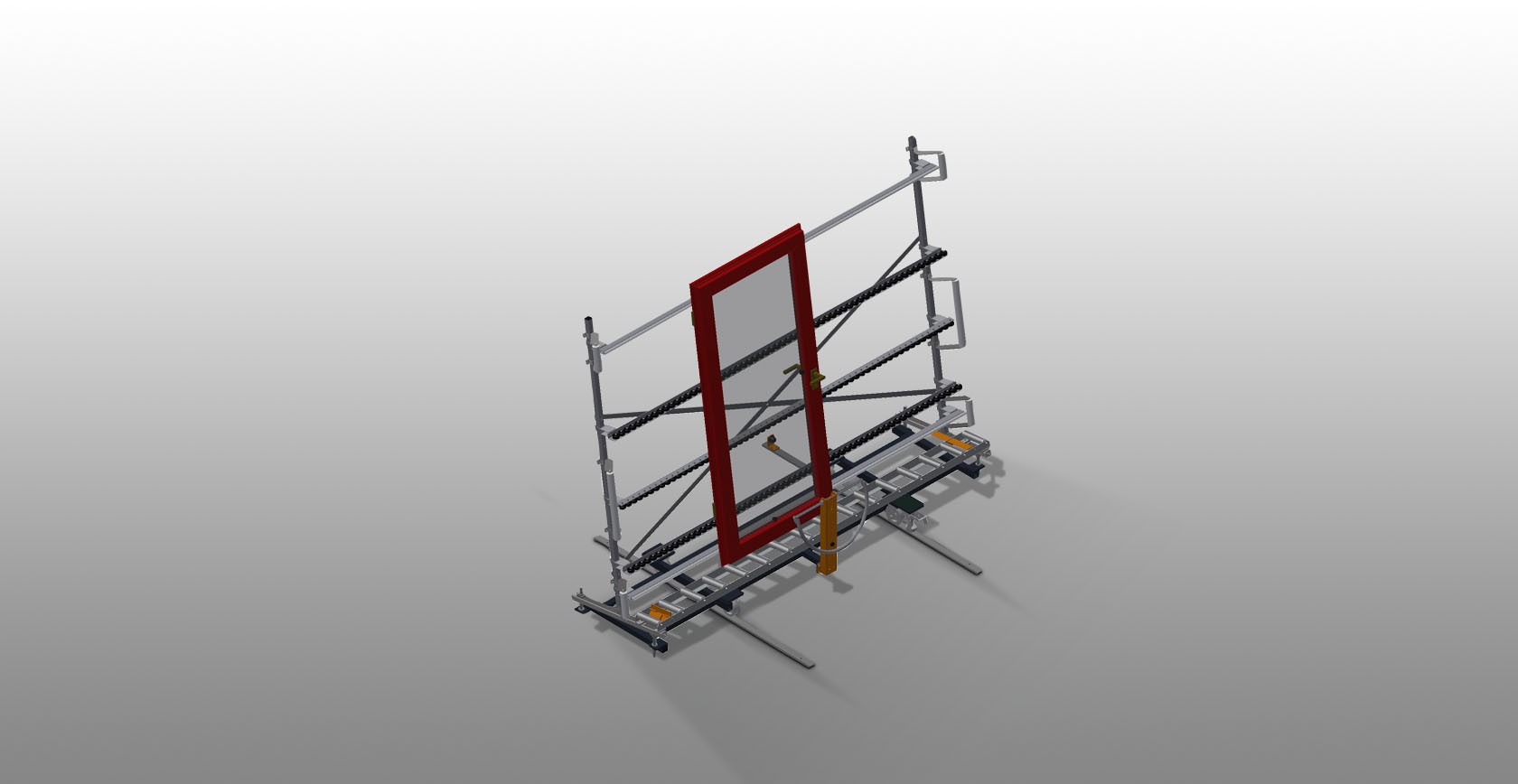

VERTICAL ROLLER CONVEYORS VR 3000 DF Vertical roller conveyor VR 3000 DF with mobility and rotation mechanism elumatec
VERTICAL ROLLER CONVEYORS VR 3000 DF Support rollers elumatec
VERTICAL ROLLER CONVEYORS VR 3000 DF Mini-roller conveyor elumatec
VERTICAL ROLLER CONVEYORS VR 3000 DF Support elumatec
VERTICAL ROLLER CONVEYORS VR 3000 DF Grip elumatec
VERTICAL ROLLER CONVEYORS VR 3000 DF Mobility unit elumatec

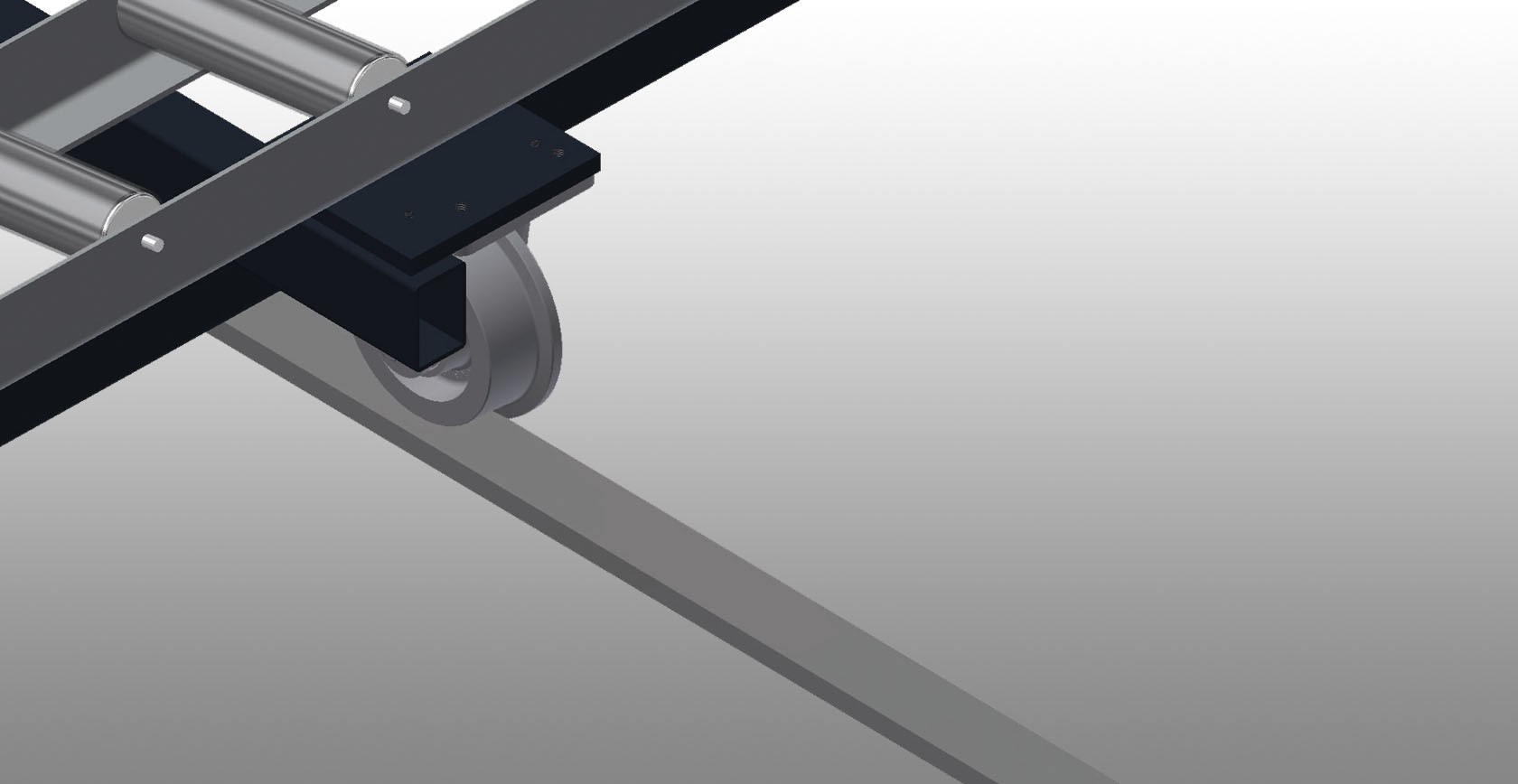

VERTICAL ROLLER CONVEYORS VR 3000 DF Rails elumatec
VERTICAL ROLLER CONVEYORS VR 3000 DF End stop elumatec

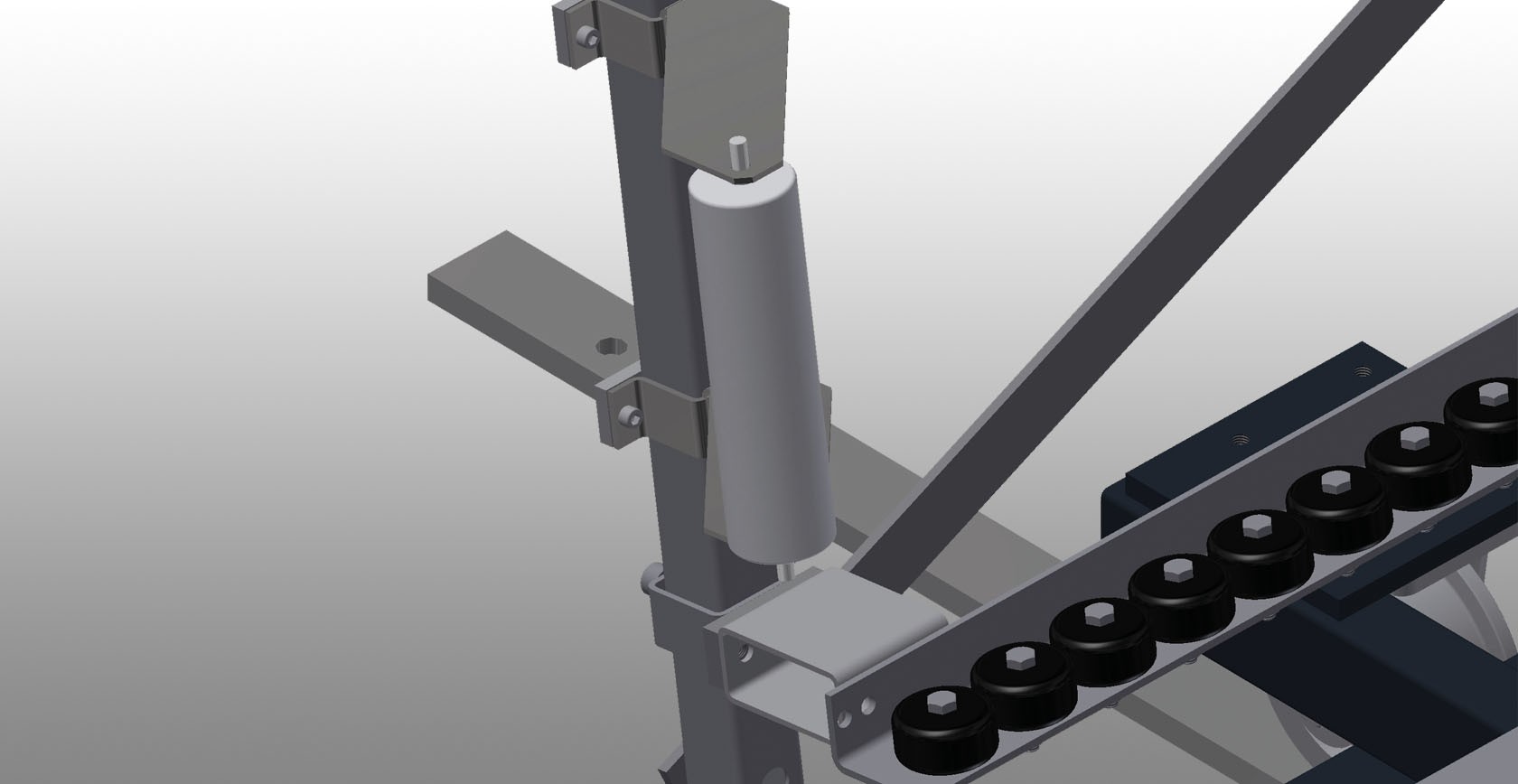

VERTICAL ROLLER CONVEYORS VR 3000 DF Lead-in rollers elumatec
VERTICAL ROLLER CONVEYORS VR 3000 DF Additional mini-roller conveyors elumatec
VERTICAL ROLLER CONVEYORS VR 3000 DF Profile protectors elumatec
Technical data arrow_drop_down
