AMS
200

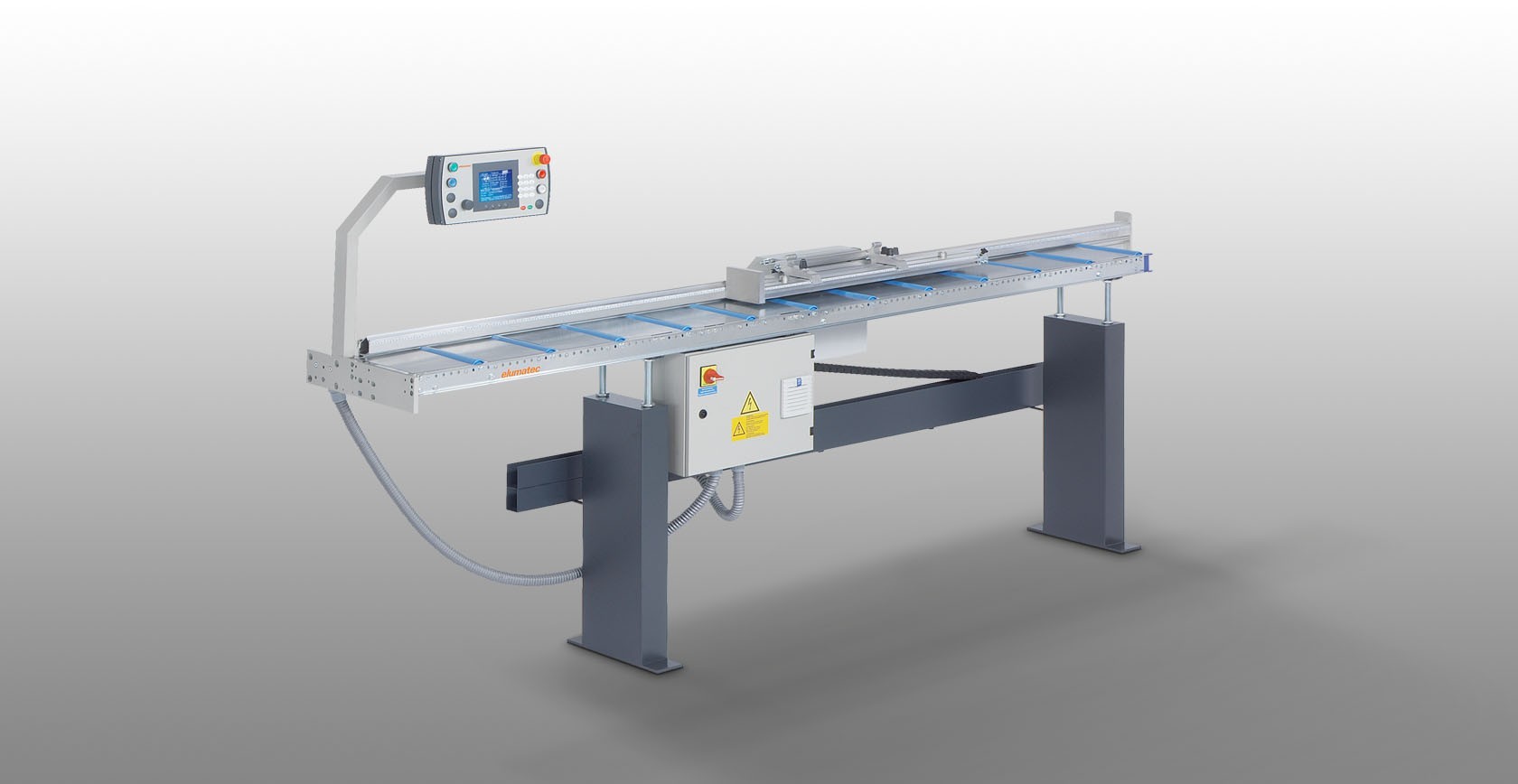

with E 570 Length stop and measuring system
home
/
product range
/
Length Stop and Measuring Systems
Length stop and measuring system with 1-axis control for cutting-length positioning
For cutting aluminium profiles to length accurately
For mounting on all single-head saws (right-hand side)
Stop carriage can be folded back for positioning of profiles
Automatic retraction unit: No re-cutting by the saw blade (optional)
Patented rail and carriage system
Length variants
3,000 mm
4,500 mm
6,000 mm
Variant for left-hand attachment on request
Optional
Label printer
EMA measuring and reading system
Request quote
picture_as_pdf
generate pdf
info_outline
ask information
Technical data
arrow_drop_down
Machine configurations with 1, 3 or 5 axes
Length measurement using an absolute measuring system independent of drive
Pneumatic locking at position
Robust, low-wear direct drive for moving saw unit
Ergonomic location of the control unit
PC with Windows operating system
Four USB ports
12" touchscreen
One serial RS 232 interface
Two network ports, RJ45, 10/100 Mbit
Ports for connecting additional keyboard and mouse
