TS
161/21
Table saw
home
/
from a to z
/
T

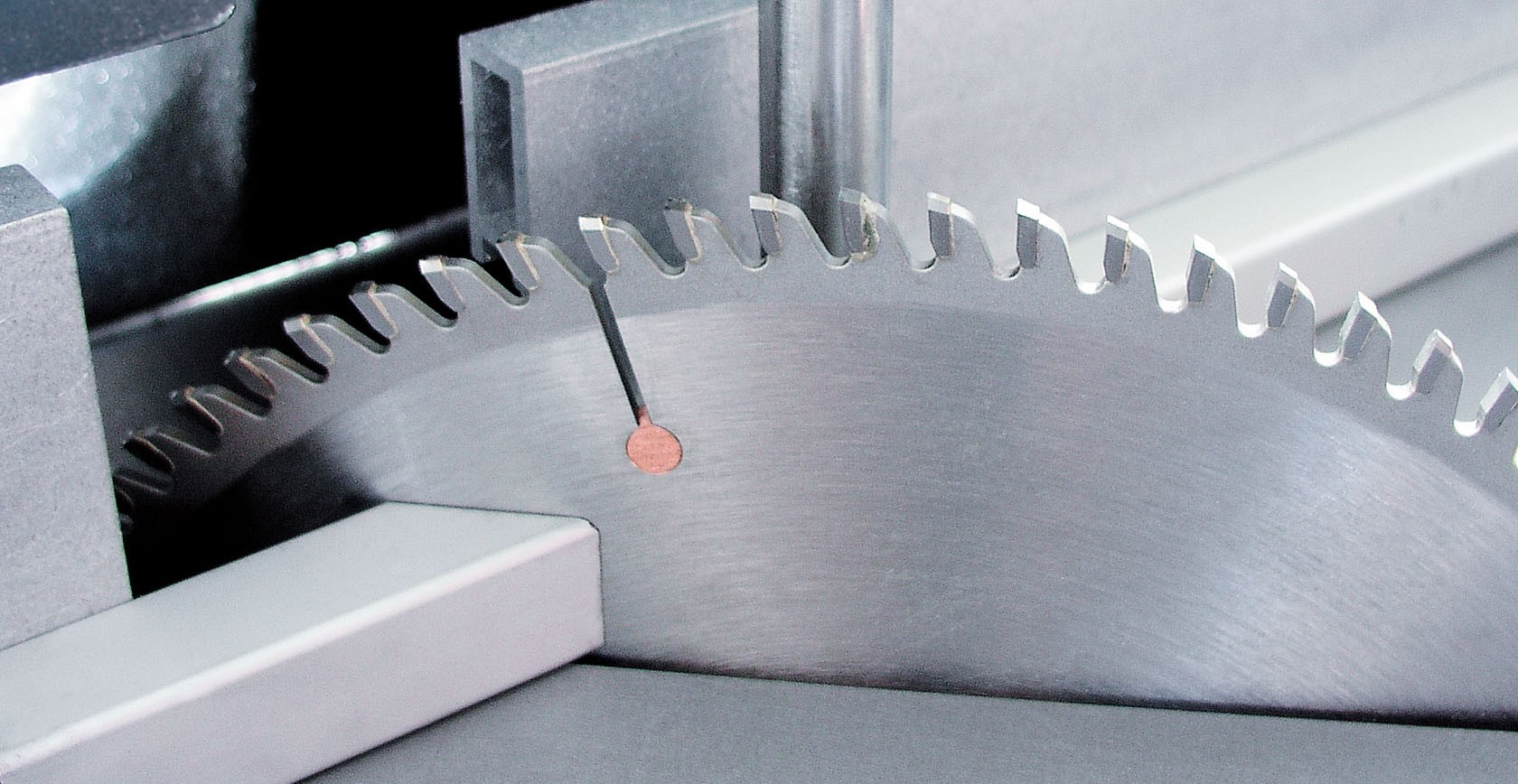

Accuracy is achieved by cutting from below for 90° saw cuts and angled cuts

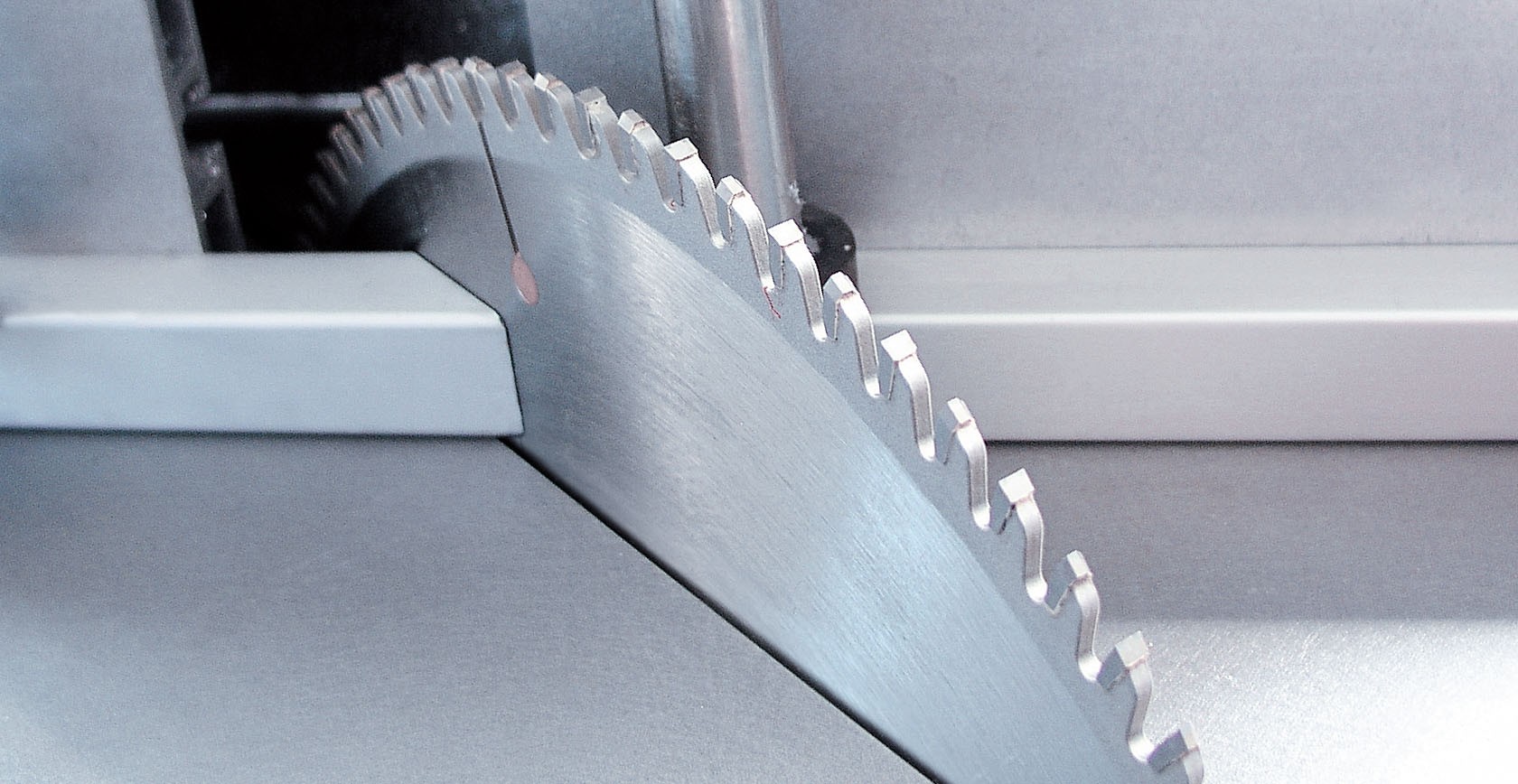

Wide pivoting range of up to 45° to the left and 0° to the right
The special pivoting mechanism with integrated turn table enables working from the front at any angle setting
The back fence is adjustable to allow optimal use of the saw blade capacity for wide and flat profiles
Manual saw feed
Equipped with saw blade and machine base as standard
Pneumatic material clamping (vertical)
Pulsed coolant system
Maintenance unit
Options
Digital display for pivoting angles
Extraction system
Length stop and measuring systems
Roller conveyors
High performance cutting fluid
Request quote
picture_as_pdf
generate pdf
info_outline
ask information

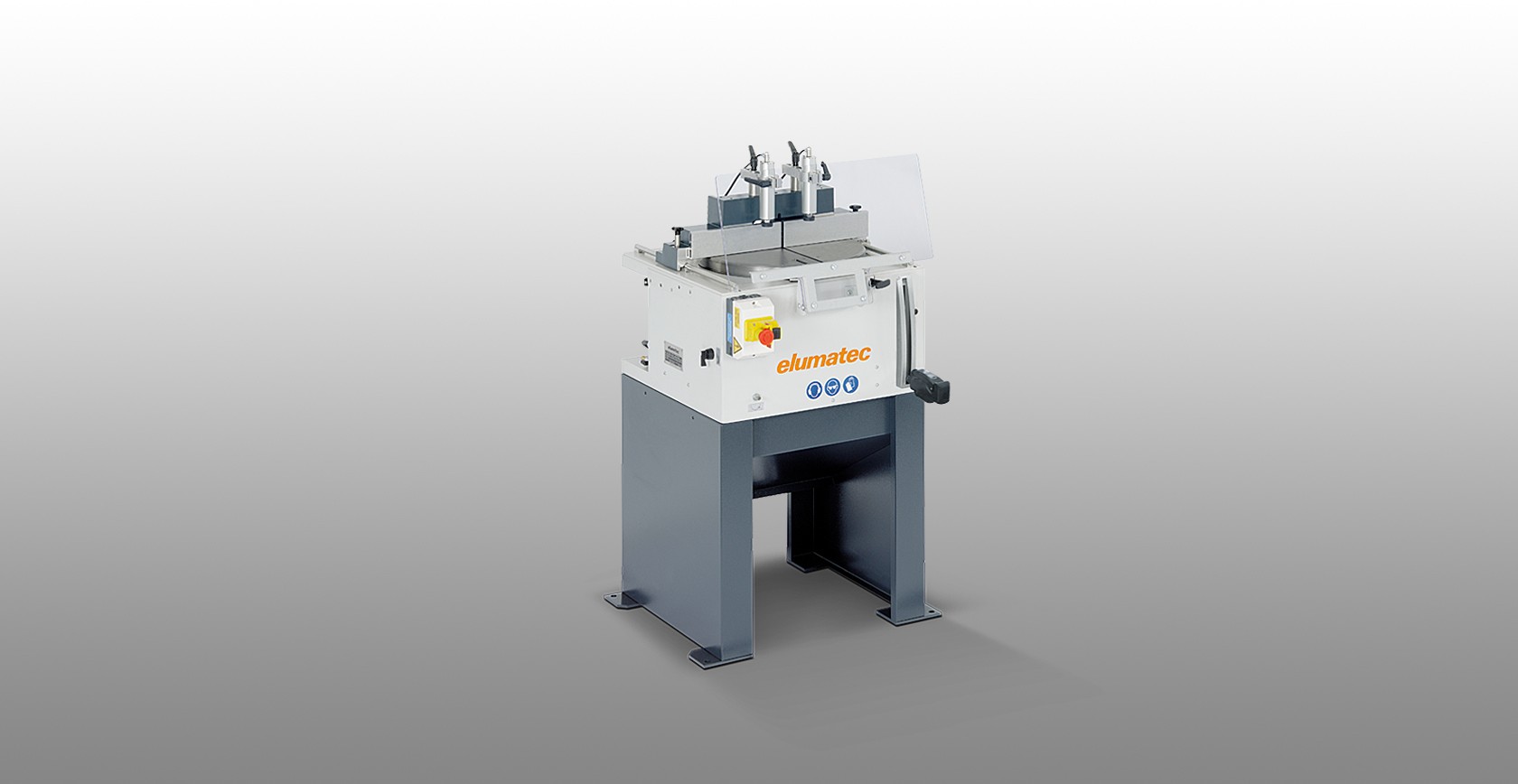

Table saw TS 161/21 (Optional)
Table saw TS 161/21 + MMS 200 (Optional)
Table saw TS 161/21 (Optional)
Table saw TS 161/21 (Optional)
Table saw TS 161/21 (Optional)
Cutting diagram TS 161/21
Technical data
arrow_drop_down
For cutting range, see cutting diagram
Saw blade diameter 280 mm
Saw blade speed 3,200 rpm
Power supply 230/400 V, 3~, 50 Hz
Power output 1.05 kW
Length 650 mm, depth 750 mm, height 1,300 mm, weight 130 kg
