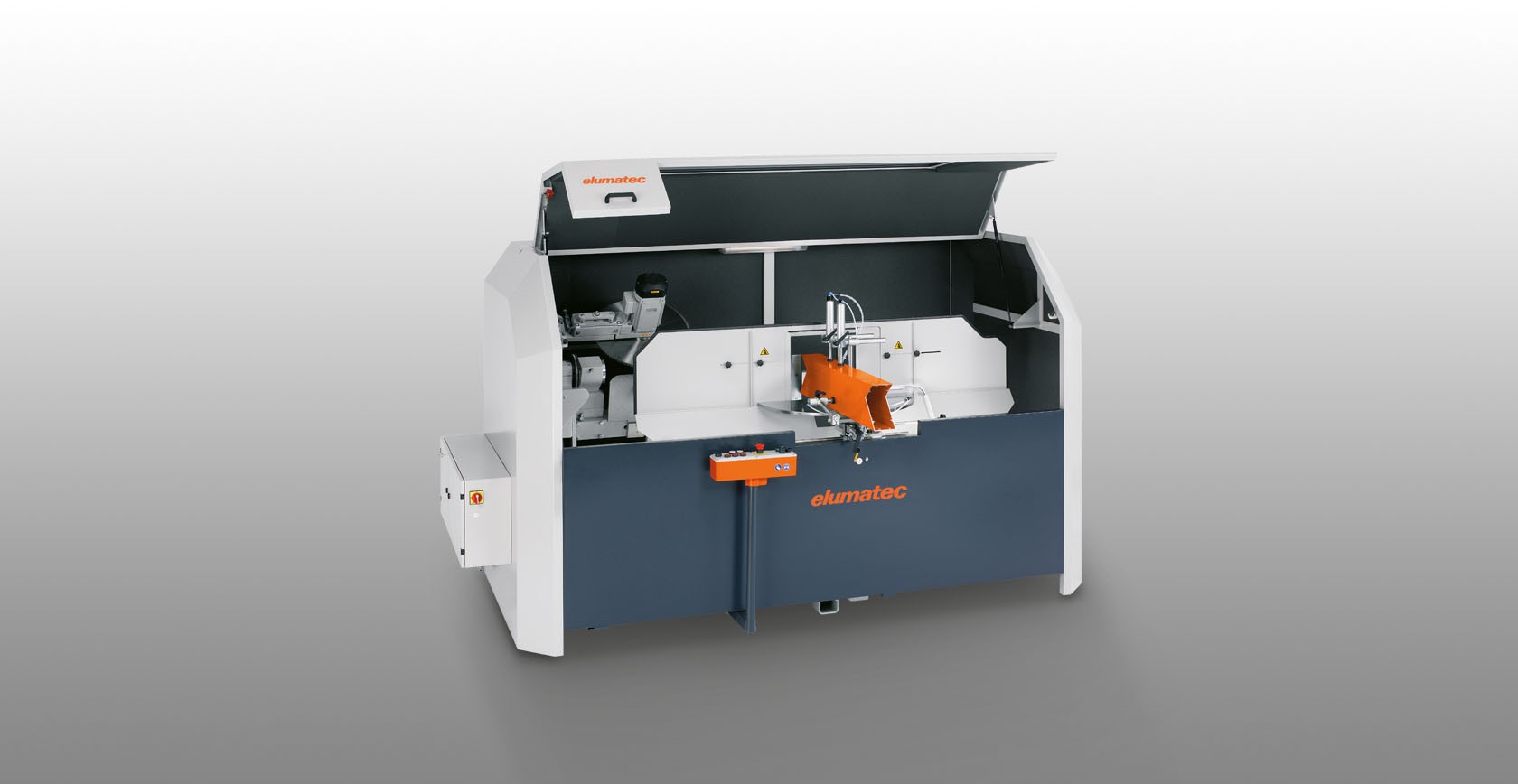

AKS 134/64 Notching saw

  • High-performance notching saw for aluminium profiles offering an exceptionally large cutting range
  • For demanding applications in the areas of curtain wall construction, conservatories and special designs
  • Machining is performed with moving saw units while the profile is stationary, which ensures high accuracy and low space requirements
  • Clamping of several profiles is possible due to the wide stop plate
  • Support table with compound slide and pivoting fence is manually adjustable for optimal use of the cutting range
  • Horizontal and vertical profile clamping
  • Automatic working cycle at a 90° pivoting angle (two-hand control when cutting special angles)
  • Hydro-pneumatic saw feed
  • Minimum-volume lubrication system for saw blades

See AKS 134/64, however:

  • Equipped with a 4-axis controller for automatic adjustment of the horizontal and vertical saw blades for angle cutting, as well as for height adjustment and notching depth
  • Values from design drawings can be entered directly via the keyboard


  • Laser indicator for cutting line
  • Noise protection package
  • Saw blades
  • High performance cutting fluid

Lower saw unit (vertical):

  • Saw blade diameter 650 mm
  • Tilting angle max. 45° towards front and 55° towards back, home position: Saw blade vertical
  • Max. cutting height of 260 mm at 90°
  • Max. cutting height of 187 mm at 135°
  • Max. cutting height of 130 mm at 30°
  • Power supply 230/400 V, 3~, 50 Hz
  • 3 kW of power with motor brake
  • Saw blade speed 1,400 rpm

Upper saw unit (horizontal):

  • Saw blade diameter 500 mm
  • Tilting angle max. 55° downwards and 60° upwards, home position: Saw blade horizontal
  • Notching depth, max. 190 mm
  • Power supply 230/400 V, 3~, 50 Hz
  • 3 kW of power with motor brake
  • Saw blade speed 2,710 rpm
  • Travel 950 mm

Support table with working height of 990 mm:

  • Pivoting range from 30° left to 30° right, home position, 0°
  • Pivoting range manual with digital display
  • Compressed air supply 7 bar
  • Air consumption per working cycle 35 l without spraying, 45 l with spraying
  • Length 3,000 mm, depth 1,570 mm, height 1,770 mm, weight 1,400 kg
