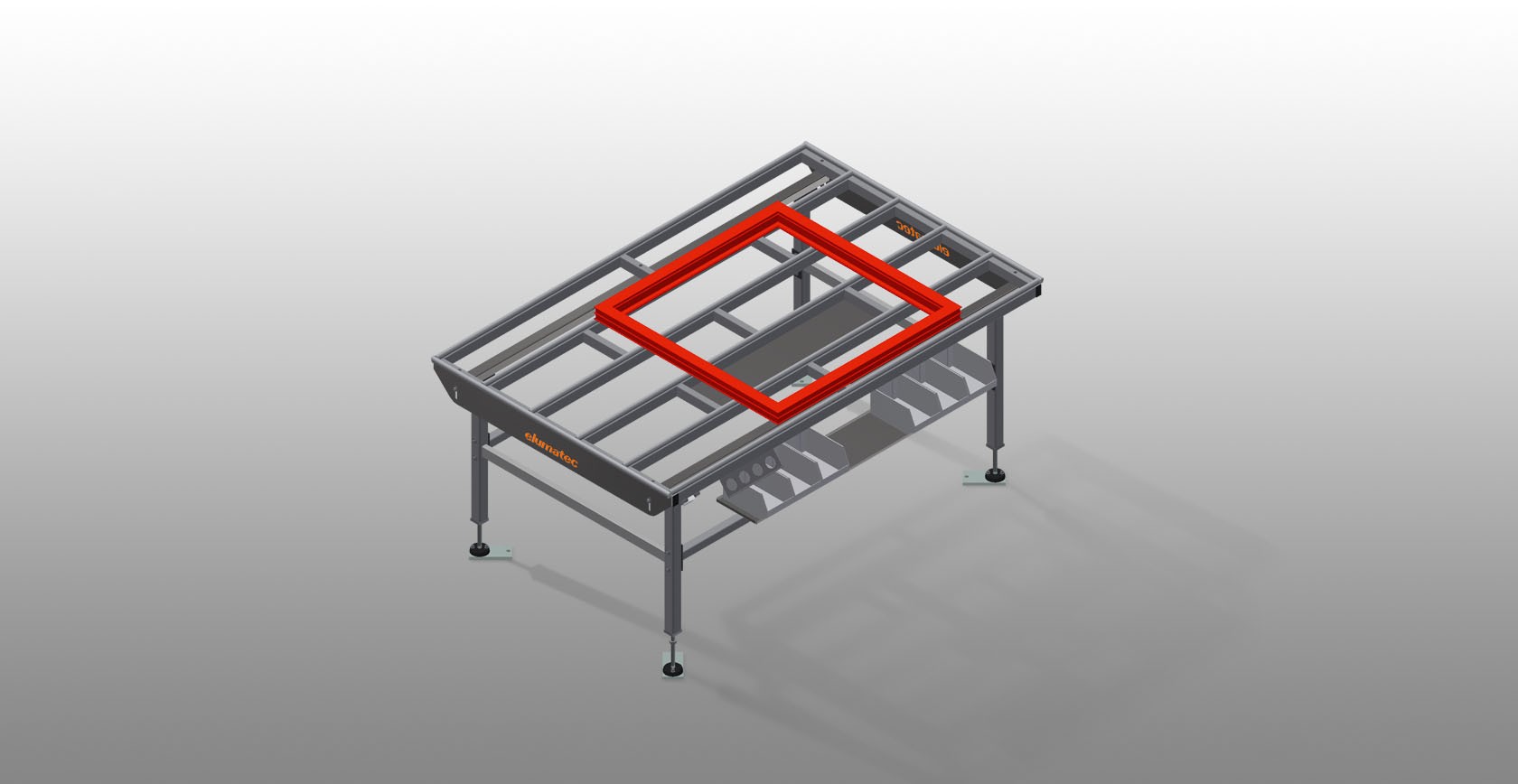

HT2000

Horizontal table – Individual table

home / product range / HORIZONTAL ASSEMBLY TABLES

Horizontal table for all work tasks on frames and sashes

  • Stable steel construction
  • Table supporting surface with plastic slide bars
  • Storage tray for setting down tools and accessories
  • Adjustable height
  • Simple installation with a modular system design



Options

  • Also available with brush strips on request
  • Also available with felt strips on request (for wooden elements)
  • Also available with rubber strips on request (for aluminium elements)
  • Roller support
  • Tool rack
  • 4-fold compressed air supply
  • Storage area with six plastic trays
Horizontal table – Individual table HT 2000 (Optional)

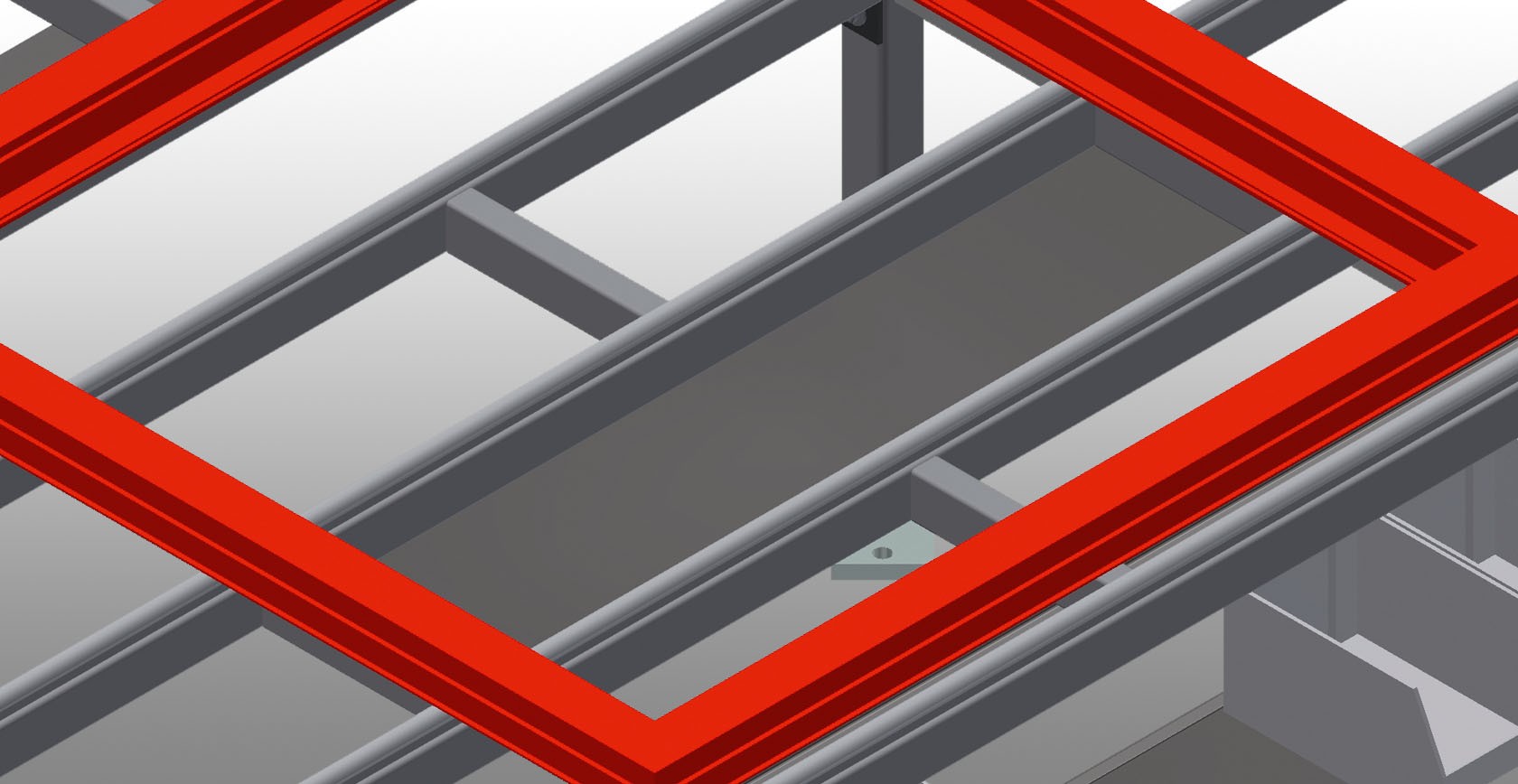

Supporting surfaces (Optional)

Supporting surfaces with plastic slide bars

Storage tray (Optional)

Storage tray for setting down tools and accessories

Height adjustment (Optional)

Adjustable height; working height can be set to 850 – 1,000 mm by means of adjustable feet

Brush strip (Optional)

Supporting surfaces with brush strip for MT/HT 2000

Felt strip (Optional)

Supporting surfaces with felt strip for MT/HT 2000

Rubber strips (Optional)

Supporting surfaces with rubber-knob profile for aluminium elements

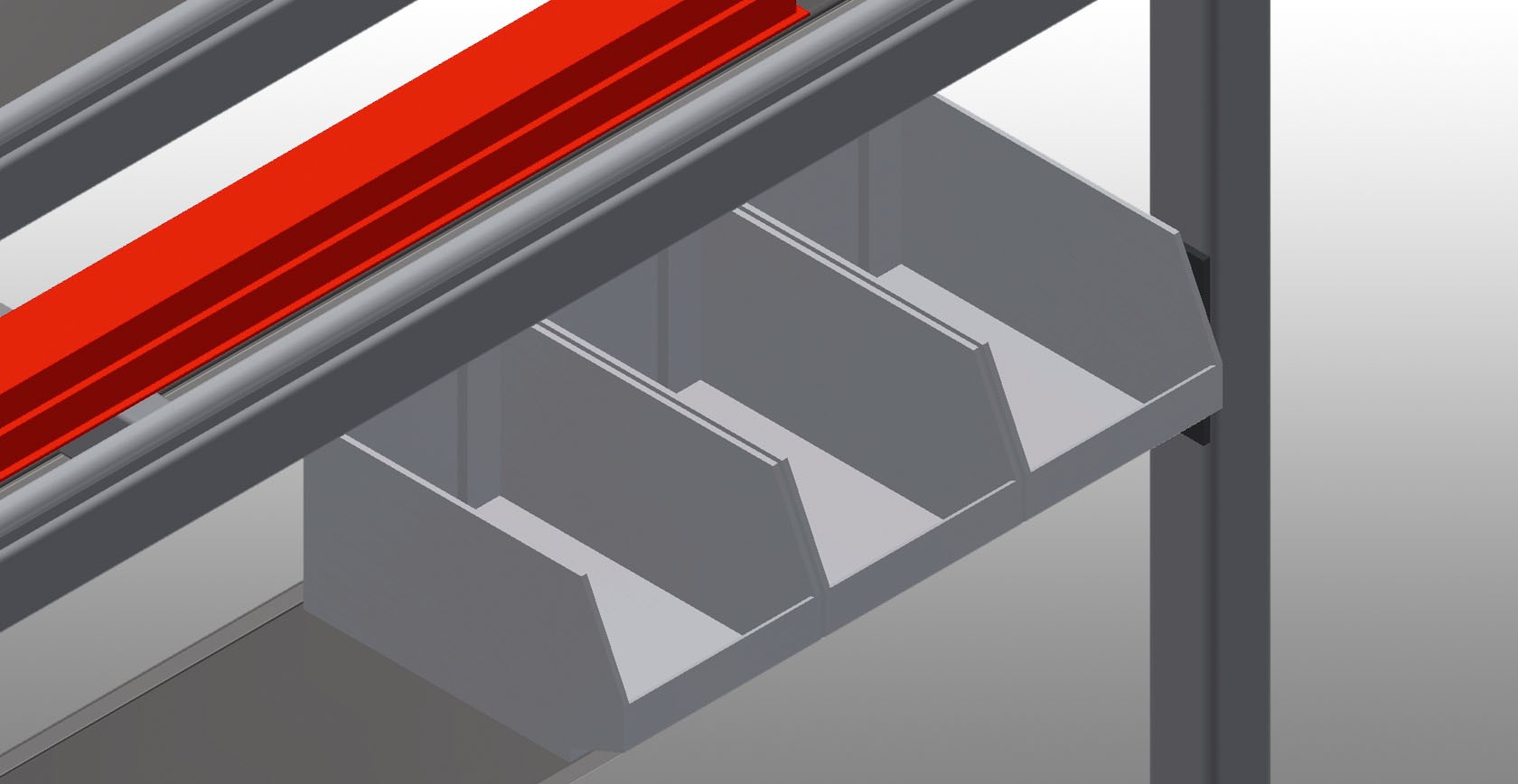

Storage area (Optional)

Storage area with six plastic trays for small accessories, hardware and screws

Tool rack (Optional)

Tool rack for pneumatic or electrical tools

4-fold compressed air connection (Optional)

4-fold compressed air connection for connecting compressed-air tools

Roller support, cmpl., for HT 2000/PVC (Optional)

Hard plastic rollers with polyamide coating, on plain bearings, load per roller: 60 kg, convenient for transport and handling of PVC elements

Roller support, cmpl., for HT 2000/Alum. (Optional)

Plastic rollers with polyurethane coating, on ball bearings, load per roller: 40 kg, convenient for transport and handling of aluminium elements

Pneumatic lifting unit (Optional)

Lifting unit L = 2,000 mm

HORIZONTAL ASSEMBLY TABLES HT 2000 Horizontal table – Individual table HT 2000 elumatec
HORIZONTAL ASSEMBLY TABLES HT 2000 Supporting surfaces elumatec
HORIZONTAL ASSEMBLY TABLES HT 2000 Storage tray elumatec
HORIZONTAL ASSEMBLY TABLES HT 2000 Height adjustment elumatec
HORIZONTAL ASSEMBLY TABLES HT 2000 Brush strip elumatec
HORIZONTAL ASSEMBLY TABLES HT 2000 Felt strip elumatec
HORIZONTAL ASSEMBLY TABLES HT 2000 Rubber strips elumatec
HORIZONTAL ASSEMBLY TABLES HT 2000 Storage area elumatec
HORIZONTAL ASSEMBLY TABLES HT 2000 Tool rack elumatec
HORIZONTAL ASSEMBLY TABLES HT 2000 4-fold compressed air connection elumatec
HORIZONTAL ASSEMBLY TABLES HT 2000 Roller support, cmpl., for HT 2000/PVC elumatec
HORIZONTAL ASSEMBLY TABLES HT 2000 Roller support, cmpl., for HT 2000/Alum. elumatec
HORIZONTAL ASSEMBLY TABLES HT 2000 Pneumatic lifting unit elumatec
Technical data arrow_drop_down
